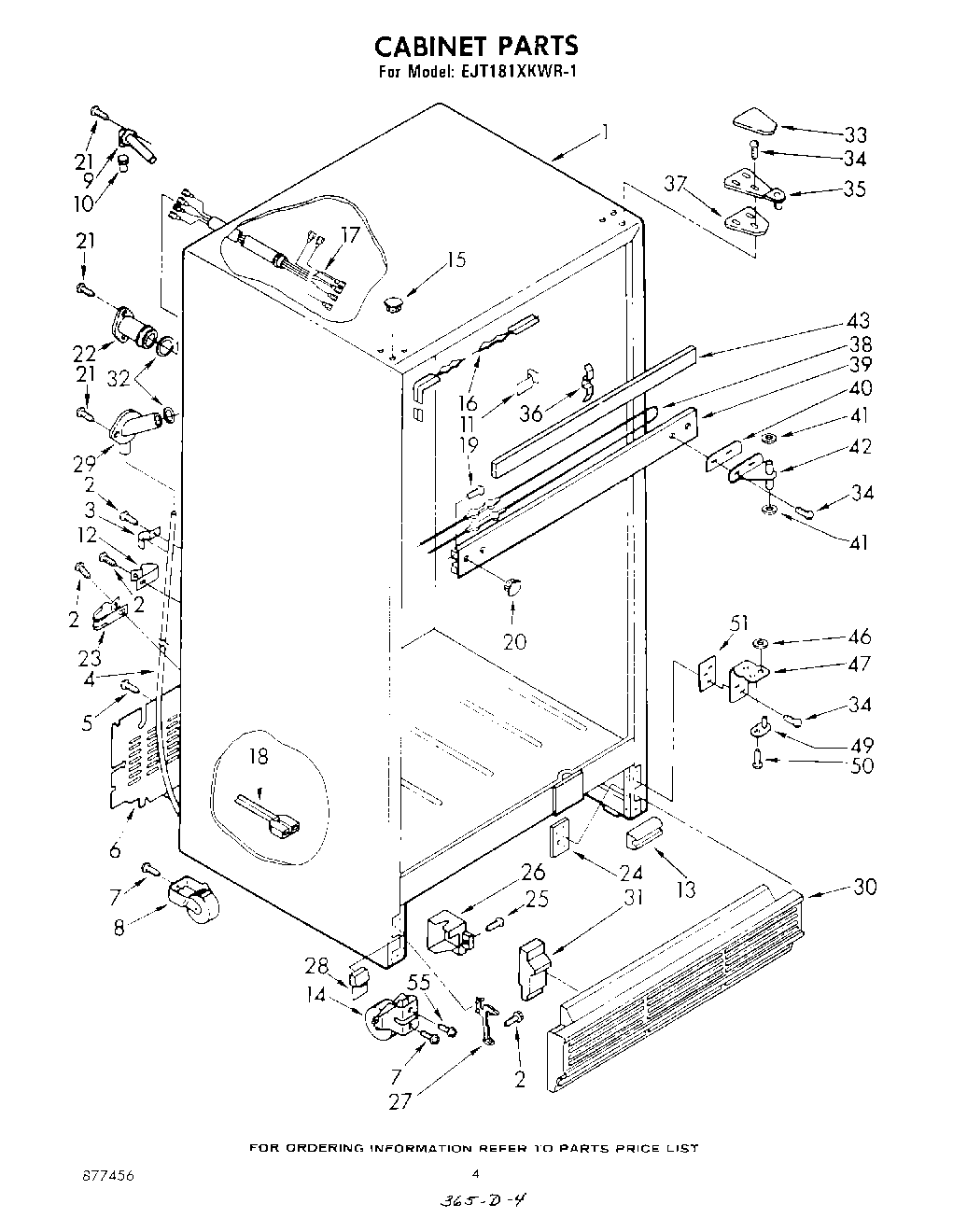

EJT181XKWR2 03 – CABINET

EJT181XKWR2 03 – CABINET

Written by

in

EJT181XKWR2 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	WPL 836077
4	8316810 Whirlpool Refrigerator Drain Tube
6	Cover
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	WP2196157 Whirlpool Fill Tube
10	WP487996 Whirlpool Refrigerator Cap Tube
11	WPL 935663
12	Clamp, Cord (2)
13	Bumper, Grille
14	Roller, Front
15	Hole Plug (2) (Golden Harvest)
15	Hole Plug (New Avocado)
15	Hole Plug (2) (Almond)
15	Hole Plug (2) (White)
15	Hole Plug (Coffee)
16	Heater, Stile
17	Cabinet Wiring Assembly
18	WPL 548734
19	Screw, 8 x 3/8
19	Screw (Repair)
20	Hole Plug (New Avocado)
20	Hole, Plug (Almond)
20	Hole, Plug (White)
20	Hole Plug (Golden Harvest)
20	Hole Plug (Coffee)
21	WP98165 Whirlpool Screw
22	Tunnel, Wiring
23	Clamp
24	Tap Plate
25	WP488729 Whirlpool Refrigerator Door Screw
26	WPL 549947
27	WPL 844614
28	WPL 989931
28	WPL 989930
28	WPL 989929
28	WPL 989928
28	Corner, Filler (
29	Drain Fitting
30	Grille (New Avocado)
30	Grille (Coffee)
30	Grille (White)
30	Grille (Golden Harvest)
30	Grille (Almond)
31	WPL 836372
32	Gasket, Seal
33	Hinge Cover (New Avocado)
33	Hinge, Cover (Coffee)
33	Hinge Cover (Golden Harvest)
33	1119787 Whirlpool Refrigerator Hinge Cover
34	WP999367 Whirlpool Refrigerator Screw
34	Screw (Repair)
35	Hinge, Top
36	WPL 942478
37	WPL 836151
38	WPL 941681
39	WPL 989191
39	WPL 989907
39	WPL 989906
39	WPL 989905
39	WPL 836066
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	Hinge, Center
43	WPL 987524
46	WP487802 Whirlpool Refrigerator Washer
47	Hinge, Bottom
49	Hinge Pin, Bottom
50	Screw 10-32 x 5/16
51	Shim, Bottom Hinge
55	Screw, 5/16-24 x 1
