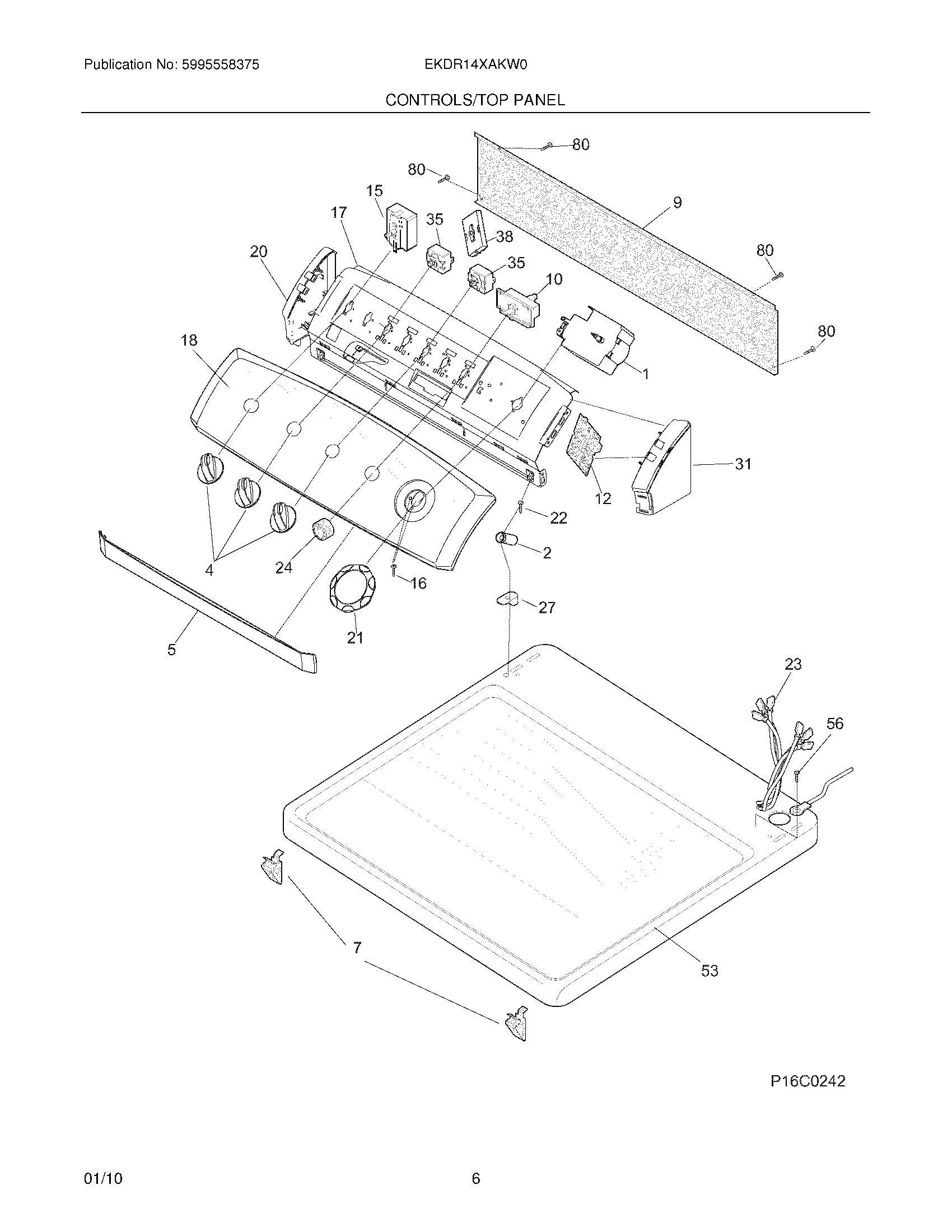

EKDR14XAKW0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	131930600 Frigidaire Dryer Timer P1 "T"
2	WCI 134096100
4	134844410 Frigidaire Washer Dryer Selector Knob White
5	WCI 134019900
7	3205821 Frigidaire Clip
9	WCI 131992900
10	131469000 Frigidaire Switch-Push/Start P1
12	WCI 134216300
15	WCI 134398600
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131993040
18	WCI 137293200
20	WCI 134019610
21	134886700 Frigidaire Dryer Timer Knob
22	WCI 131266330
23	Harness-FSD TRHZ elec
24	WCI 131111501
27	CLIP-CONSOLE MTG
31	WCI 134019600
35	WCI 134904500
38	WCI 131959200
53	WCI 134086802
56	131243800 Frigidaire Screw
80	131168200 Frigidaire Dryer Screw
