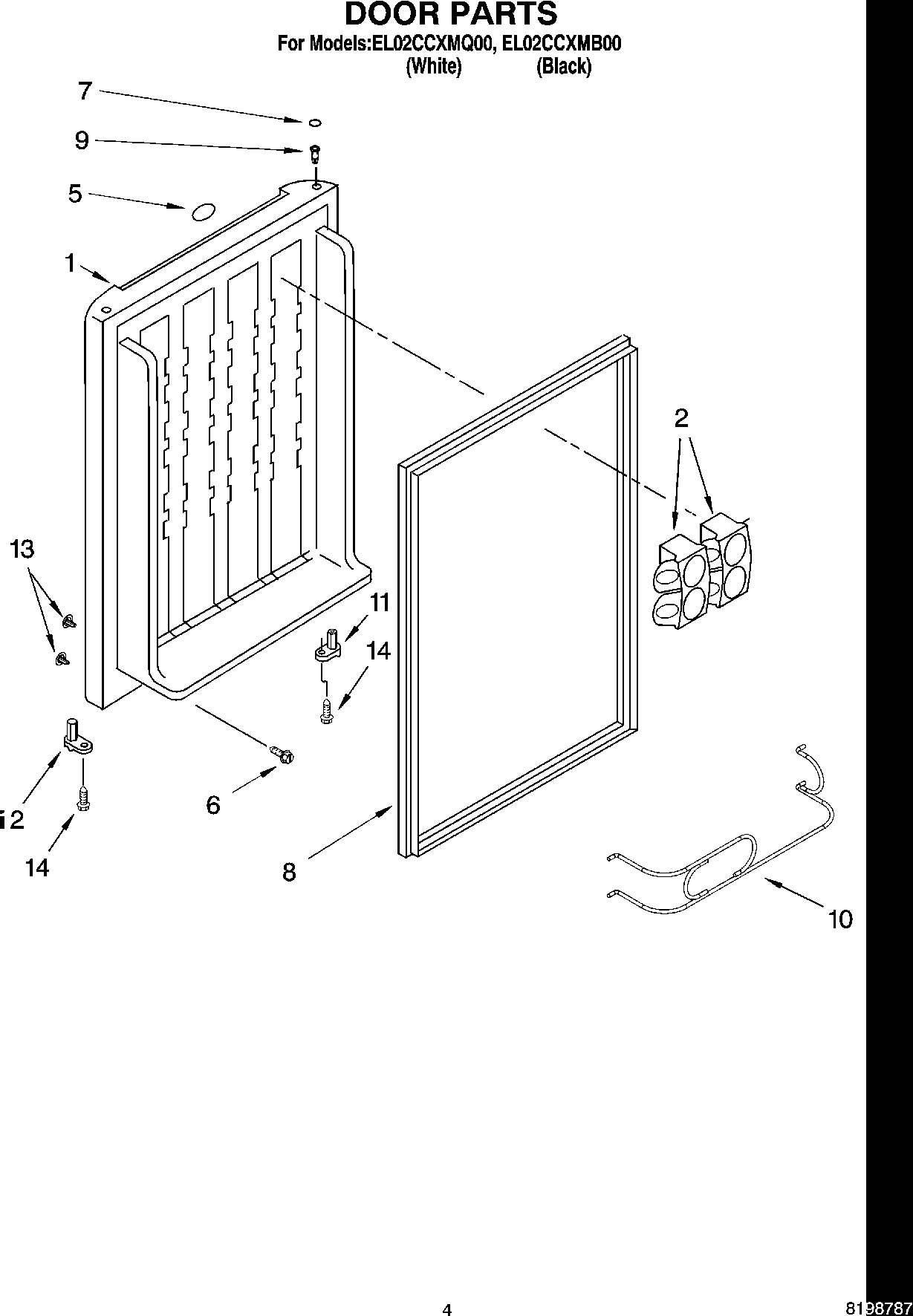

EL02CCXMB00 04 – DOOR PARTS

EL02CCXMB00 04 – DOOR PARTS

Written by

in

EL02CCXMB00 04 – DOOR PARTS

Products

Position	Product
1	Door (White)
1	Door (Black)
2	Can Rack (4)
5	Nameplate
6	Screw
7	Cover (White)
7	Cover (Black)
8	Gasket, Door (Black)
8	Gasket, Door (White)
9	Bushing, Upper (White)
9	Bushing, Upper (Black)
10	Door Rack
11	Door Closer (LH) (White)
11	Door Closer (LH) (Black)
12	Door Closer (RH) (White)
12	Door Closer (RH) (Black)
13	Bushing
14	Screw
