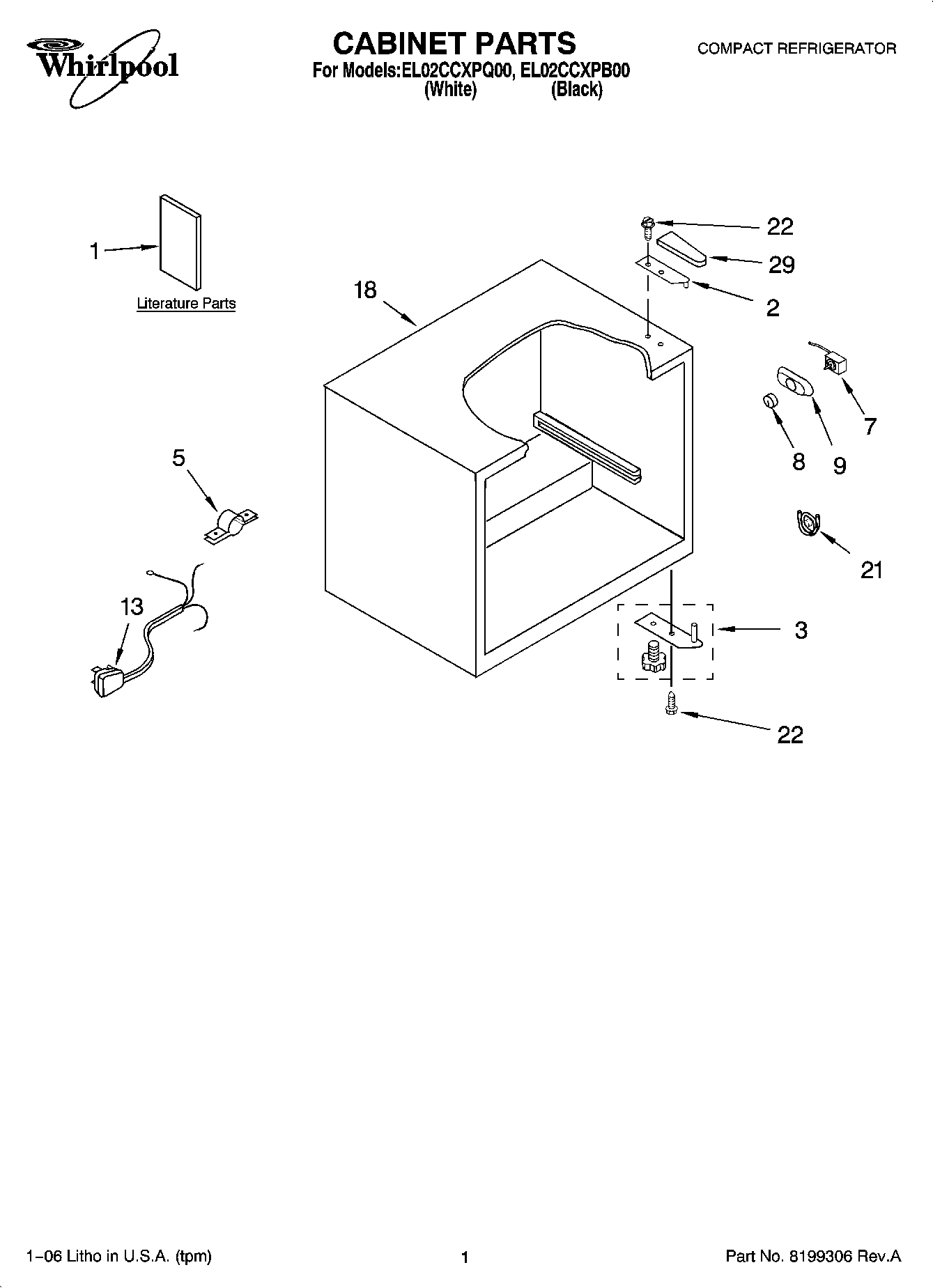

EL02CCXPQ00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
2Hinge, Top (White)
2Hinge, Top (Black)
3Hinge, Bottom (Includes foot leveler) (White)
3Hinge, Bottom (Includes foot leveler) (Black)
5Clamp, Power Cord (Upper)
5Clamp, Power Cord (Lower)
7Thermostat
8Knob, Thermostat
9Housing, Thermostat
13Power Cord
18Cabinet, (Not A Serviceable Part)
21Clamp, Knob
22Screw
29Cover, Hinge (White)
29Cover, Hinge (Black)
