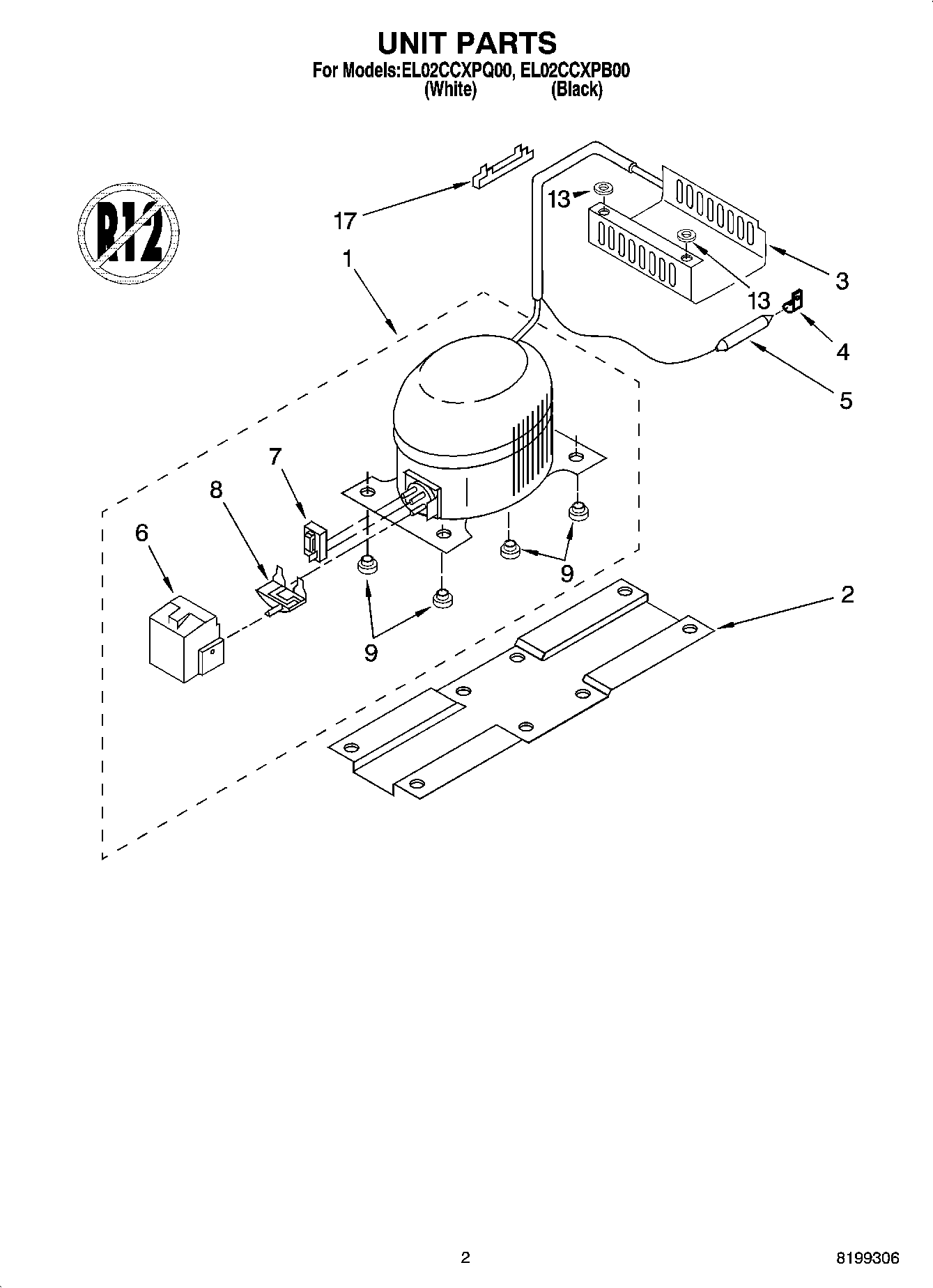

EL02CCXPQ00 02 – UNIT PARTS

Products

Position	Product
1	Compressor Assy. (Includes Items 6, 7, 8 & 9)
2	Base, Compressor
3	Evaporator
4	Clamp, Drier
5	W10843121 Whirlpool Refrigerator Tube
6	Cover, Terminal
7	Relay
8	Overload
9	Grommet
13	Washer
17	REFRIGERANT CHARGE 1.59 oz. (R-134A)
17	Cover, Sensor
