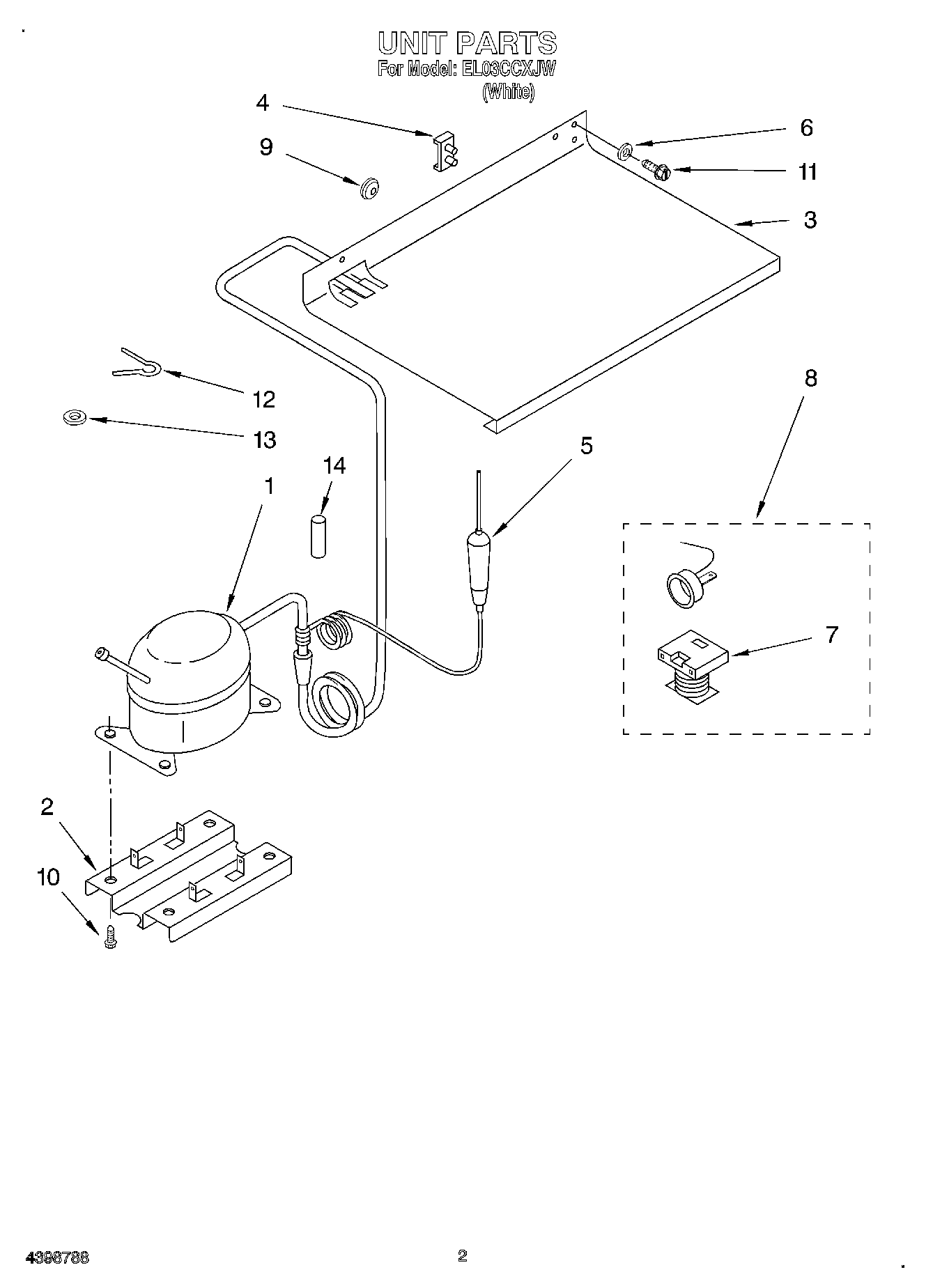

| 1 | Compressor |
| 2 | Base, Compressor |
| 3 | Evaporator |
| 4 | Retainer, Evaporator |
| 5 | W10843121 Whirlpool Refrigerator Tube |
| 6 | Washer |
| 7 | Relay (See Overload) |
| 8 | 4312462 Whirlpool Refrigerator Overload |
| 9 | Stud, Evaporator |
| 10 | WP3390631 Whirlpool Screw |
| 11 | SCREW |
| 12 | Pin, Cotter |
| 13 | Washer |
| 14 | Gasket |
