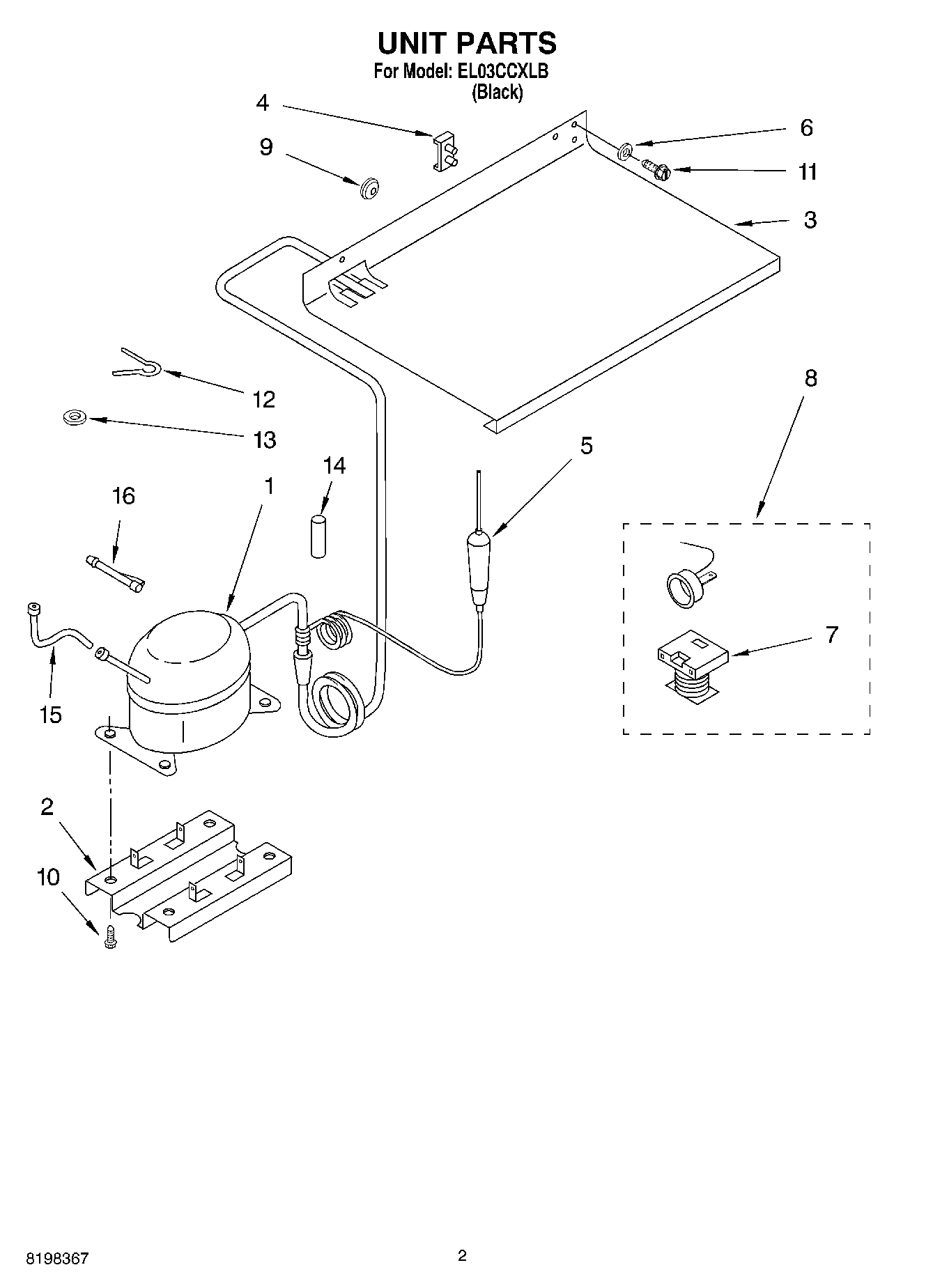

EL03CCXLB 02 – UNIT

Written by

EL03CCXLB 02 – UNIT

Products

Position	Product
1	Compressor
2	Base, Compressor
3	Evaporator
4	Retainer, Evaporator
5	W10843121 Whirlpool Refrigerator Tube
6	Washer
7	Relay (See Overload)
8	Overload (Includes Relay)
9	Stud, Evaporator
10	WP3390631 Whirlpool Screw
11	SCREW
12	Pin, Cotter
13	Washer
14	Gasket
15	Tube, Connector
16	Connector, Suction Line
