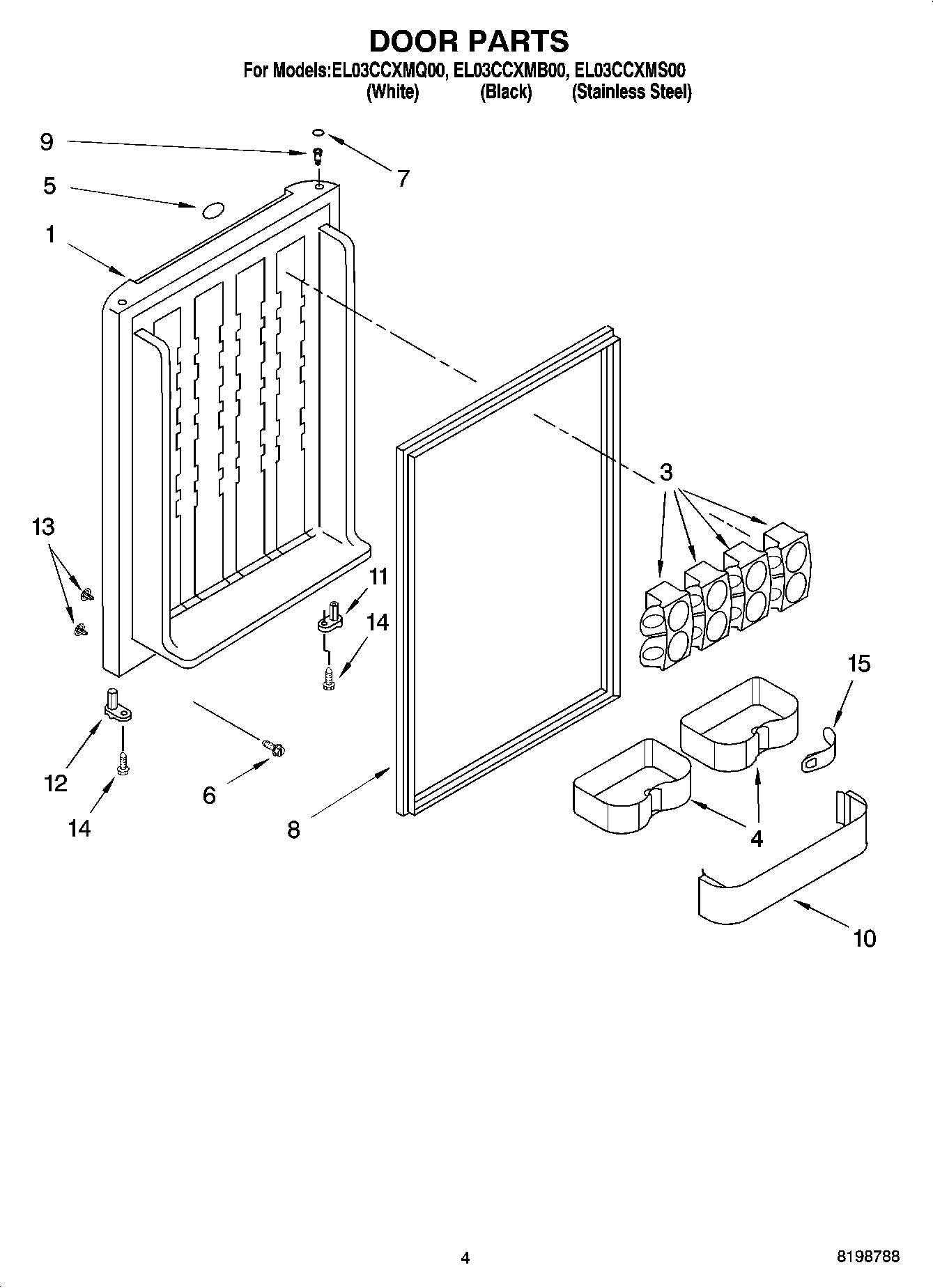

EL03CCXMB00 04 – DOOR PARTS

EL03CCXMB00 04 – DOOR PARTS

Written by

in

EL03CCXMB00 04 – DOOR PARTS

Products

Position	Product
1	Door (White)
1	Door (Black)
1	Door (Stainless Steel)
3	Can Rack (4)
4	Door Bin (2)
5	Nameplate
6	Screw
7	Cover (White)
7	Cover (Black)
8	Gasket, Door (White)
8	Gasket, Door (Black)
9	Bushing, Upper (White)
9	Bushing, Upper (Black)
10	Door Bin
11	Door Closer (LH) (Black)
11	Door Closer (LH) (White)
12	Door Closer (RH) (Black)
12	Door Closer (RH) (White)
13	Bushing
14	Screw
15	Separator, Bottle
