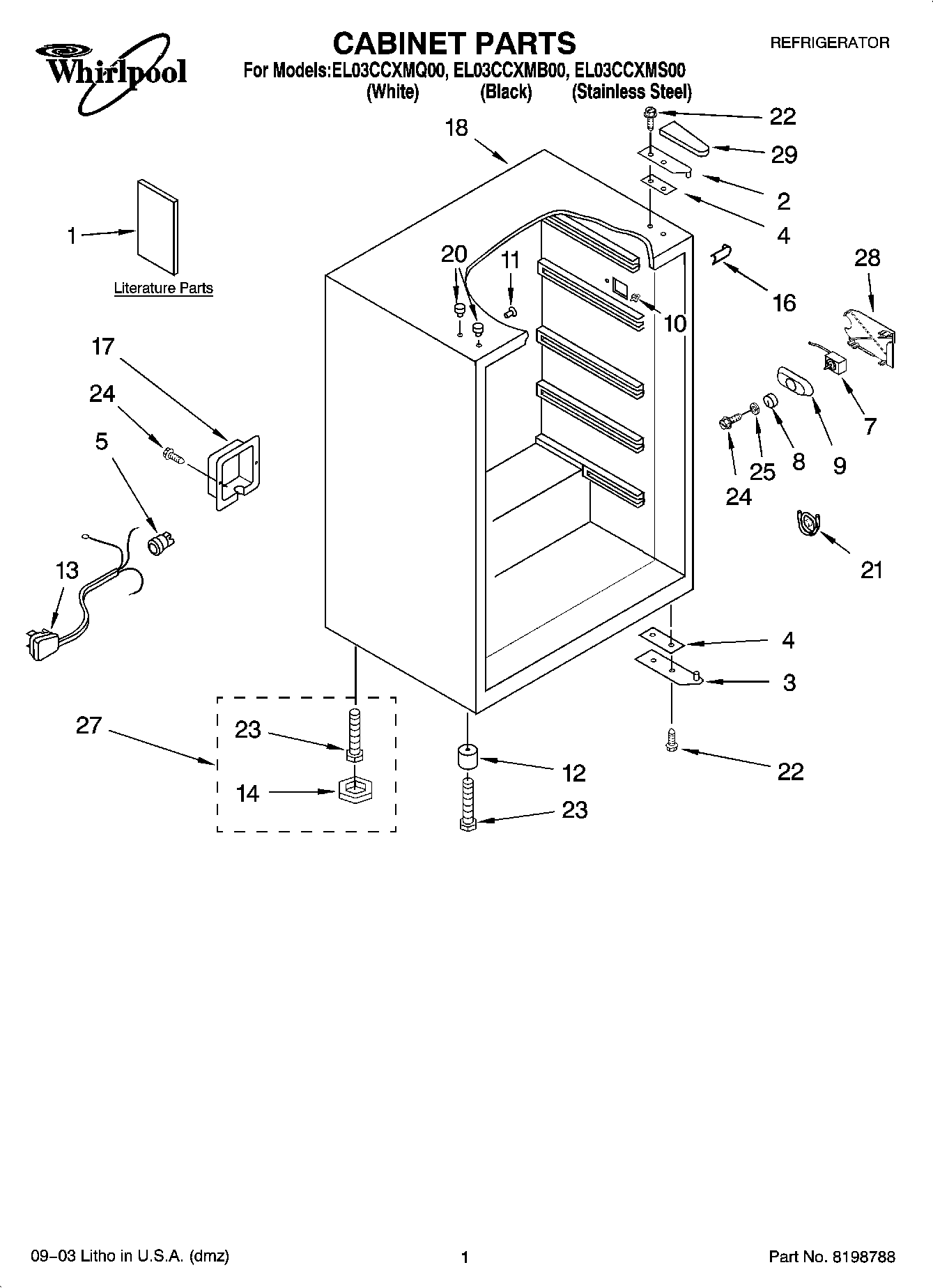

EL03CCXMS00 01 – CABINET PARTS

EL03CCXMS00 01 – CABINET PARTS

Written by

in

EL03CCXMS00 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
2Hinge, Top (Black)
2Hinge, Top (White)
3Hinge, Bottom (Black)
3Hinge, Bottom (White)
4Shim, Hinge
5Strain Relief
7Thermostat
8Knob, Thermostat
9Control Box
10Stud
11Stud
12Foot, Front (Black-Left)
12Foot, Front (White-Left)
12Foot, Front (Black-Right)
12Foot, Front (White-Right)
14Cap, Leveler
16Filler, Wrapper (White)
16Filler, Wrapper (Black)
17Box, Junction
18Cabinet (Not A Serviceable Part)
20Hole Plug (White)
20Hole Plug (Black)
21Bulb, Thermostat
22Screw
23Leveler
24Screw
25Washer
27Kit, Leg Leveler
28Shield, Control Box
29Cover, Hinge (White)
29Cover, Hinge (Black)
