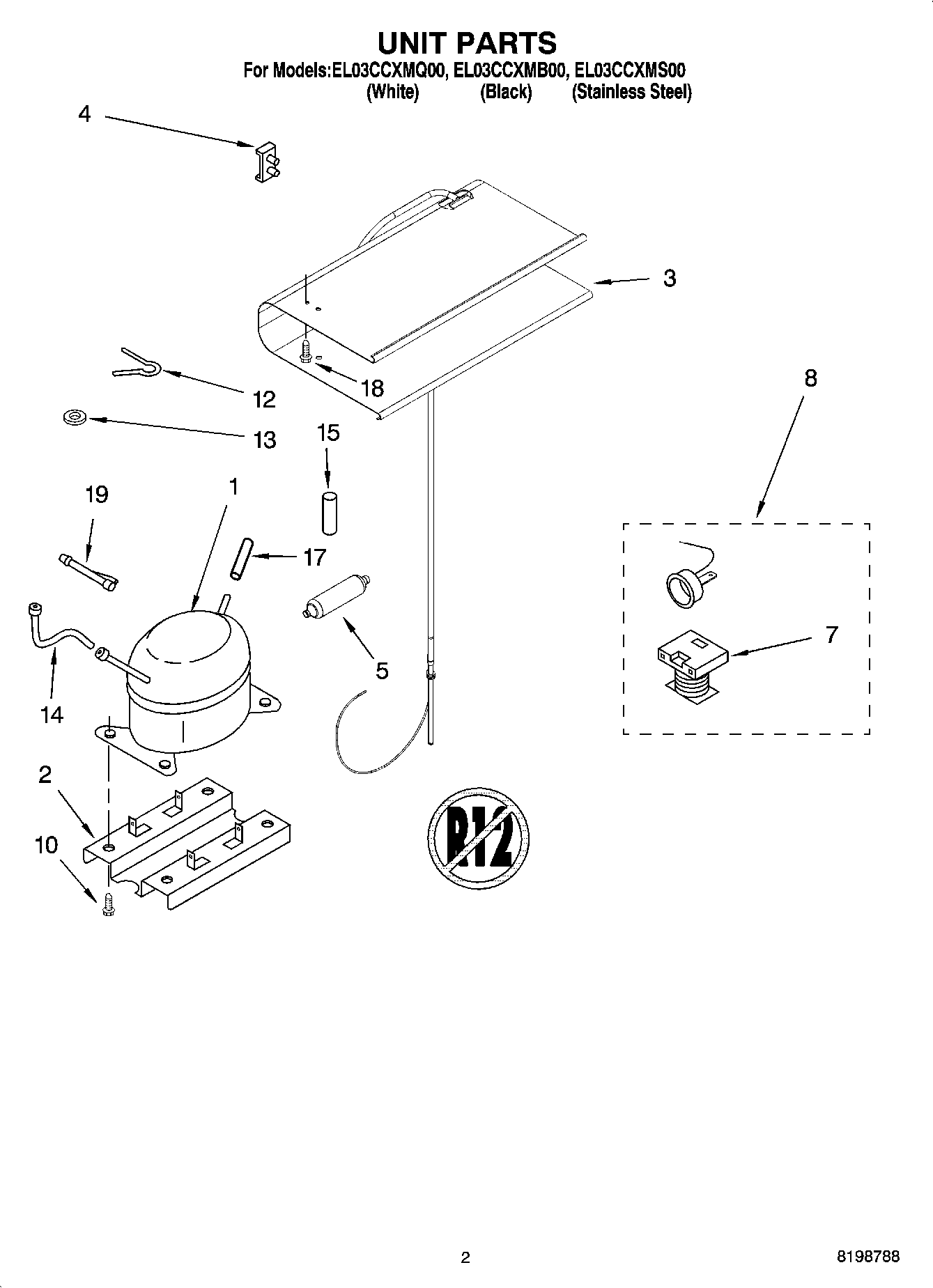

EL03CCXMS00 02 – UNIT PARTS

Products

Position	Product
1	Compressor
2	Base, Compressor
3	Evaporator
4	Retainer, Evaporator
5	W10843121 Whirlpool Refrigerator Tube
7	Relay (See Overload)
8	Overload (Includes Relay)
10	WP3390631 Whirlpool Screw
12	Pin, Cotter
13	Washer
14	Tube, Connector
15	Gasket
17	Tube, Service
18	WP489491 Whirlpool Refrigerator Screw
19	Connector, Suction Line
19	REFRIGERANT CHARGE 1.94 oz. (R-134)
