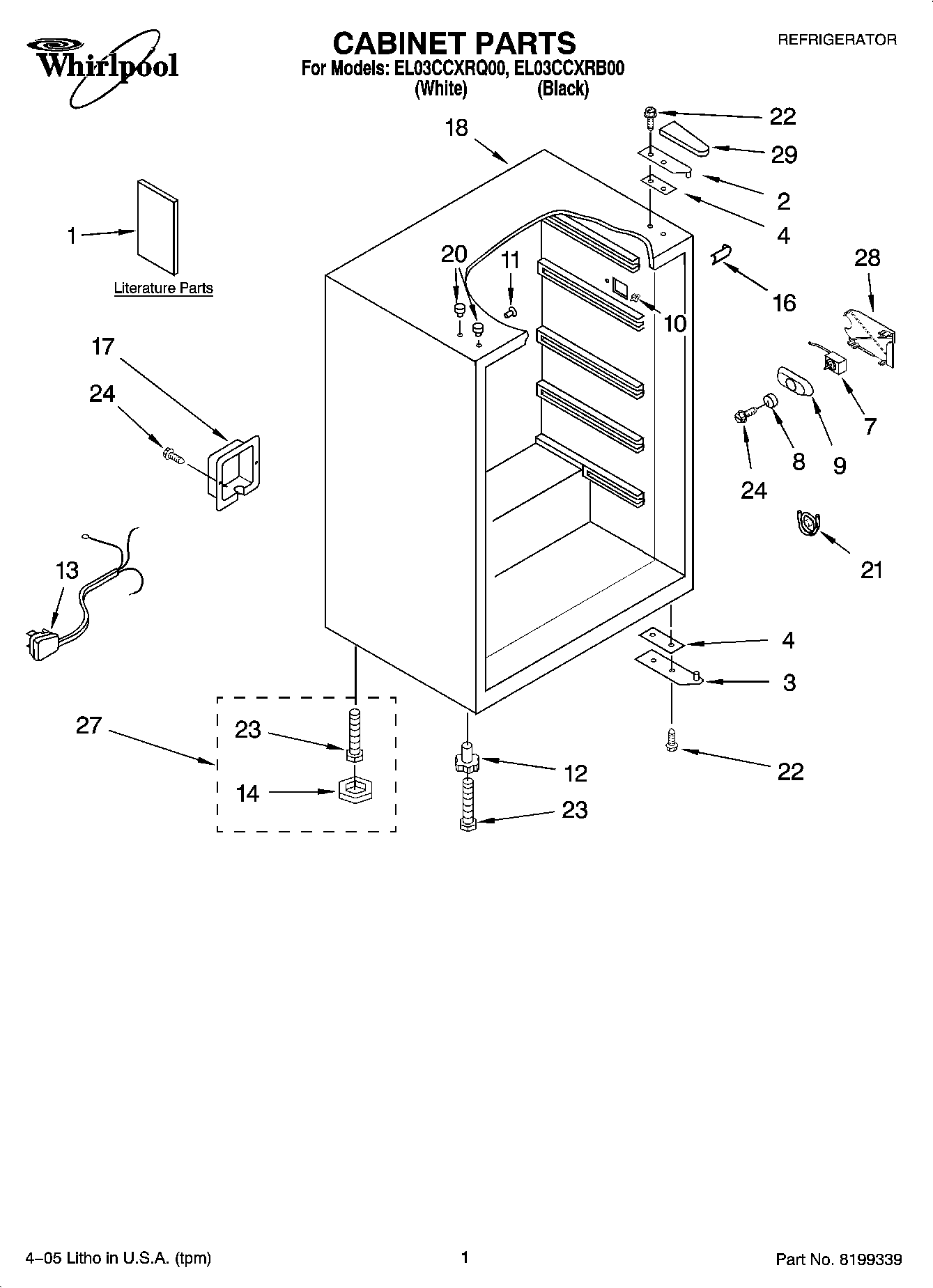

EL03CCXRB00 01 – CABINET PARTSadmin2025-04-26T09:52:59+00:00EL03CCXRB00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Owners Manual |
| 2 | Hinge, Top (White) |
| 2 | Hinge, Top (Black) |
| 3 | Hinge, Bottom (Black) |
| 3 | Hinge, Bottom (White) |
| 4 | Shim, Hinge |
| 7 | Thermostat |
| 8 | Knob, Thermostat |
| 9 | Control Box |
| 10 | Stud |
| 11 | Stud |
| 12 | Foot, Front (White-Left) |
| 12 | Foot, Front (Black-Left) |
| 12 | Foot, Front (Black-Right) |
| 12 | Foot, Front (White-Right) |
| 13 | Power Cord |
| 14 | Cap, Leveler |
| 16 | Filler, Wrapper (Black) |
| 16 | Filler, Wrapper (White) |
| 17 | Box, Junction |
| 18 | Cabinet (Not A Serviceable Part) |
| 20 | Hole Plug (Black) |
| 20 | Hole Plug (White) |
| 21 | Bulb, Thermostat |
| 22 | Screw |
| 23 | Leveler |
| 24 | Screw |
| 27 | Kit, Leg Leveler |
| 28 | Shield, Control Box |
| 29 | Cover, Hinge (Black) |
| 29 | Cover, Hinge (White) |
