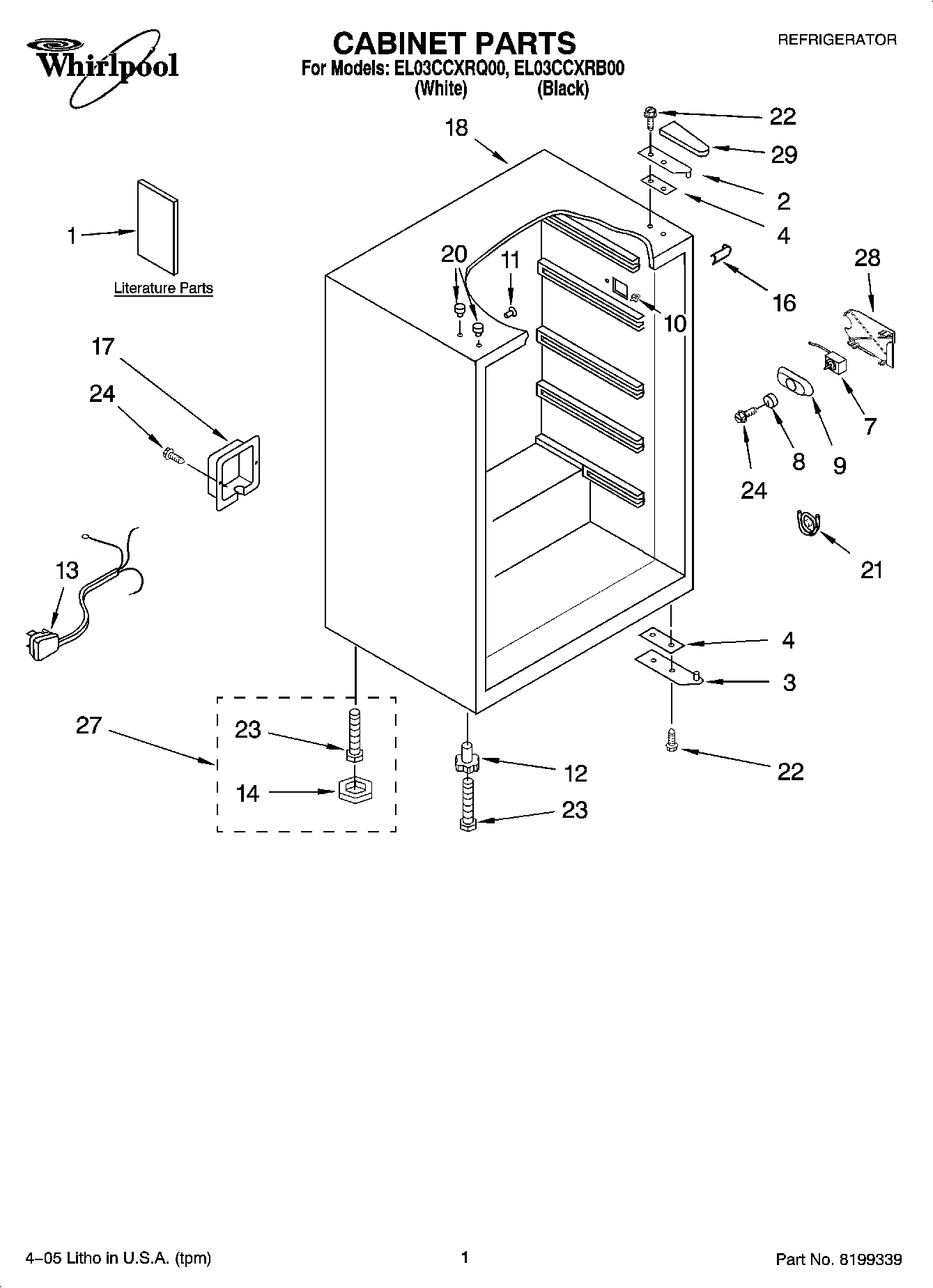

EL03CCXRQ00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
2	Hinge, Top (White)
2	Hinge, Top (Black)
3	Hinge, Bottom (White)
3	Hinge, Bottom (Black)
4	Shim, Hinge
7	Thermostat
8	Knob, Thermostat
9	Control Box
10	Stud
11	Stud
12	Foot, Front (Black-Right)
12	Foot, Front (Black-Left)
12	Foot, Front (White-Left)
12	Foot, Front (White-Right)
13	Power Cord
14	Cap, Leveler
16	Filler, Wrapper (White)
16	Filler, Wrapper (Black)
17	Box, Junction
18	Cabinet (Not A Serviceable Part)
20	Hole Plug (White)
20	Hole Plug (Black)
21	Bulb, Thermostat
22	Screw
23	Leveler
24	Screw
27	Kit, Leg Leveler
28	Shield, Control Box
29	Cover, Hinge (Black)
29	Cover, Hinge (White)
