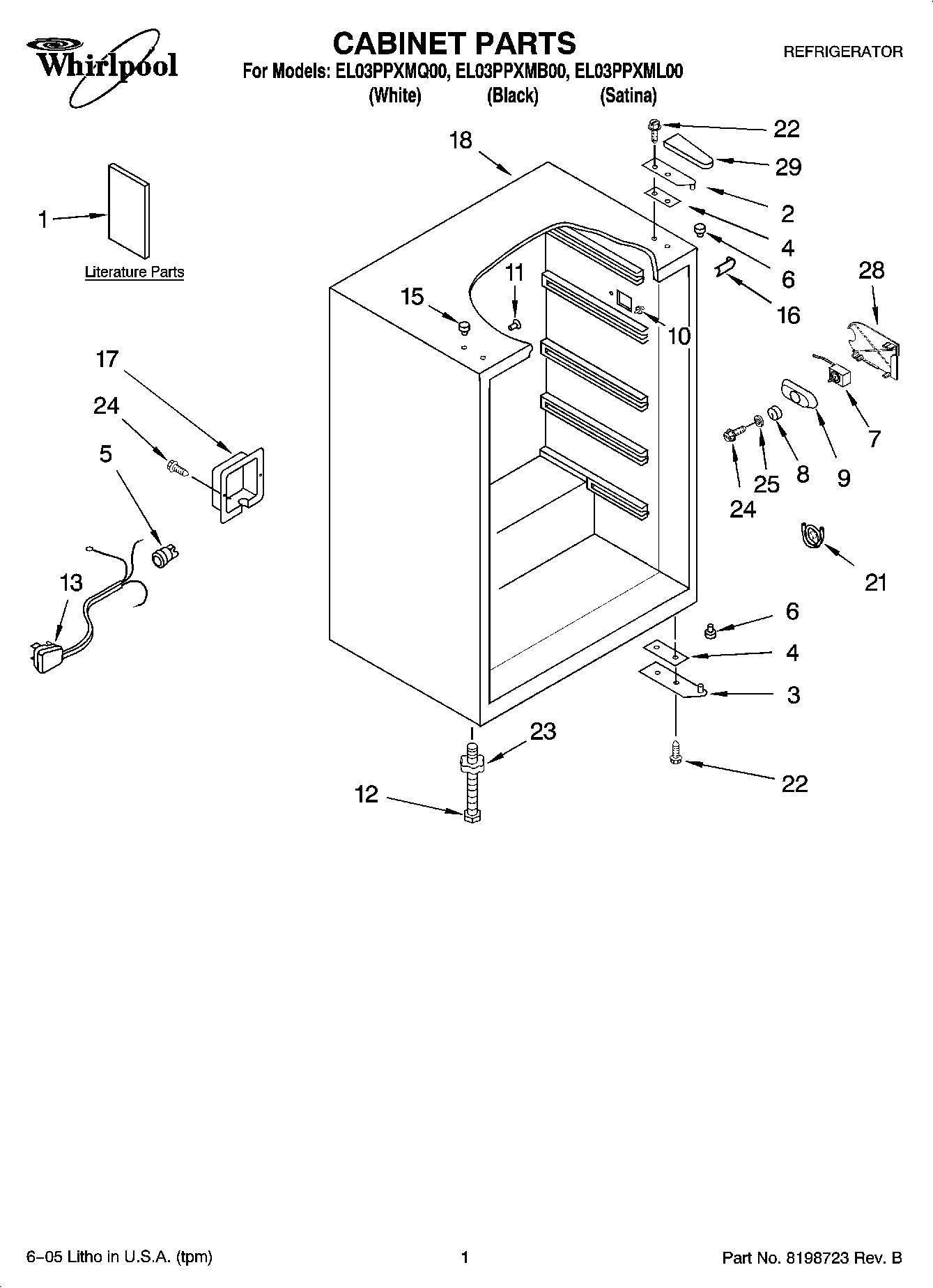

EL03PPXMB00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
2	Hinge, Top (White)
2	Hinge, Top (Black)
3	Hinge, Bottom (Black)
3	Hinge, Bottom (White)
4	Shim, Hinge
5	Strain Relief
6	Bushing
7	Thermostat
8	Knob, Thermostat
9	Control Box
10	Stud
11	Stud
12	Leveler
13	Power Cord
15	Hole Plug (Black)
15	Hole Plug (White)
16	Filler, Wrapper (Black)
16	Filler, Wrapper (White)
17	Box, Junction
18	Cabinet (Not A Serviceable Part)
21	Bulb, Thermostat
22	Screw
23	Foot, Front (Black-Left)
23	Foot, Front (White-Left)
23	Foot, Front (Black-Right)
23	Foot, Front (White-Right)
24	Screw
25	Washer
28	Shield, Control Box
29	Cover, Hinge (White)
29	Cover, Hinge (Black)
