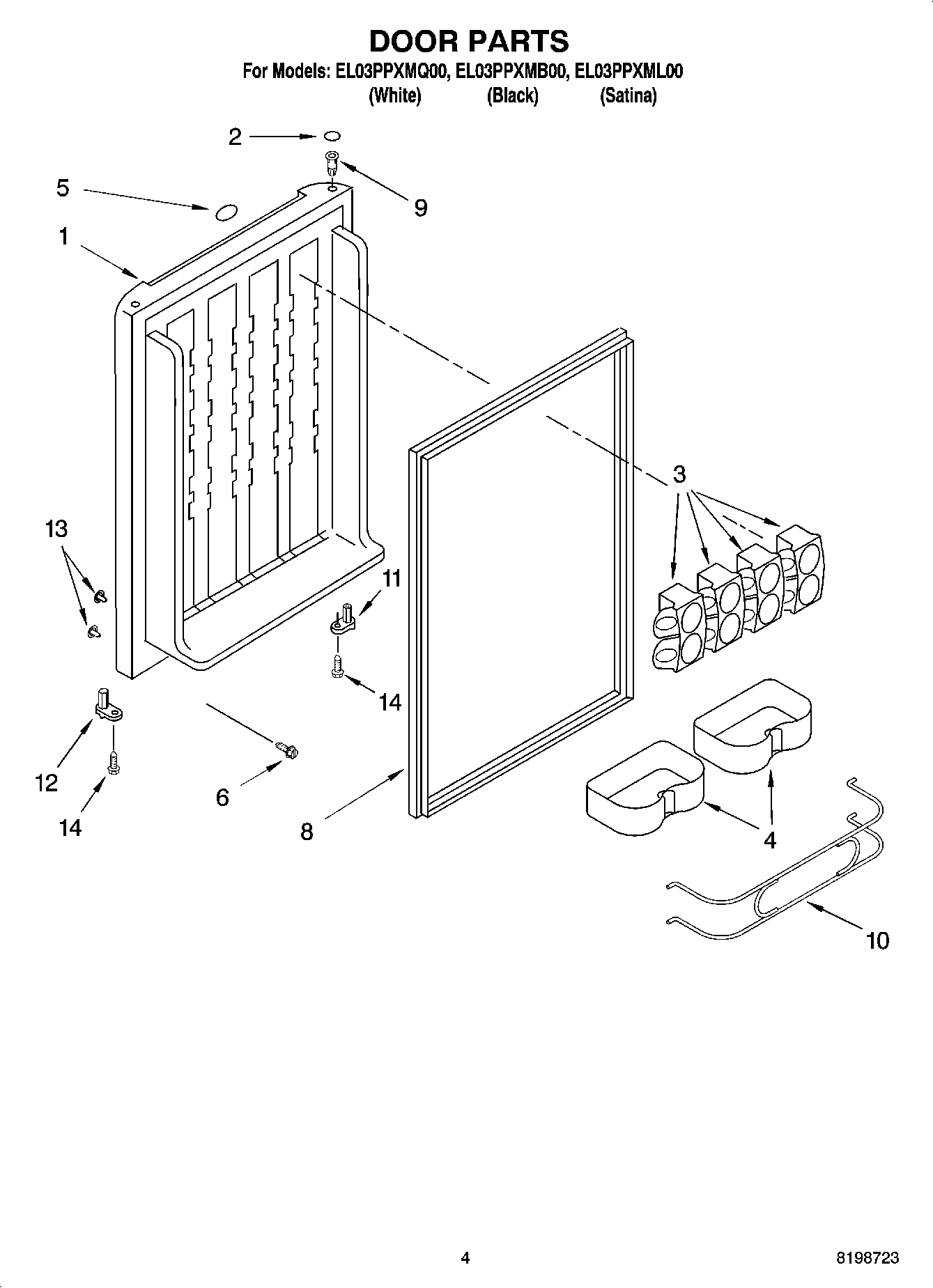

EL03PPXMQ00 04 – DOOR PARTS

EL03PPXMQ00 04 – DOOR PARTS

Written by

in

EL03PPXMQ00 04 – DOOR PARTS

Products

Position	Product
1	Door (White)
1	Door (Satina)
1	Door (Black)
2	Cover (White)
2	Cover (Black)
3	Can Rack (4)
4	Door Bin (2)
5	Nameplate
6	Screw
8	Gasket, Door (Black)
8	Gasket, Door (White)
9	Bushing, Upper (White)
10	Door Rack
11	Door Closer (LH) (Black)
11	Door Closer (LH) (White)
12	Bushing, Upper (Black)
12	Door Closer (RH) (White)
13	Bushing
14	Screw
