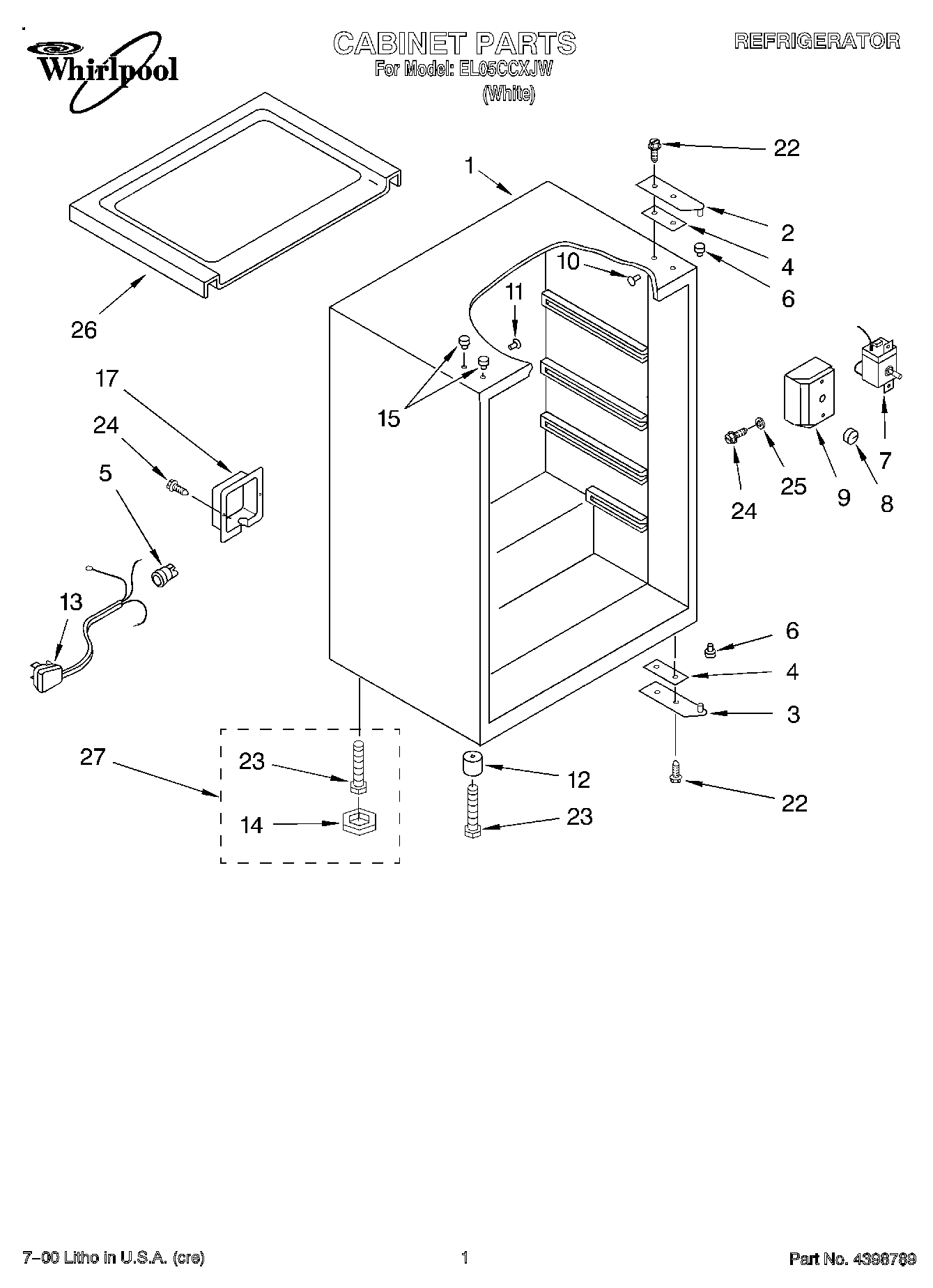

EL05CCXJW 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	4312436 Whirlpool Door Hinge
3	4312505 Whirlpool Refrigerator Door Hinge
4	Shim, Hinge
5	Strain Relief
6	Bushing
7	Thermostat
8	Knob, Thermostat
9	Control Box
10	Stud
11	Stud
12	4312445 Whirlpool Refrigerator Leveler
13	Power Cord
14	Cap, Leveler
15	Hole Plug (White)
17	Box, Junction
22	Screw
23	Leveler
24	Screw
25	Washer
26	Cover, Cabinet
27	Kit, Leg Leveler
