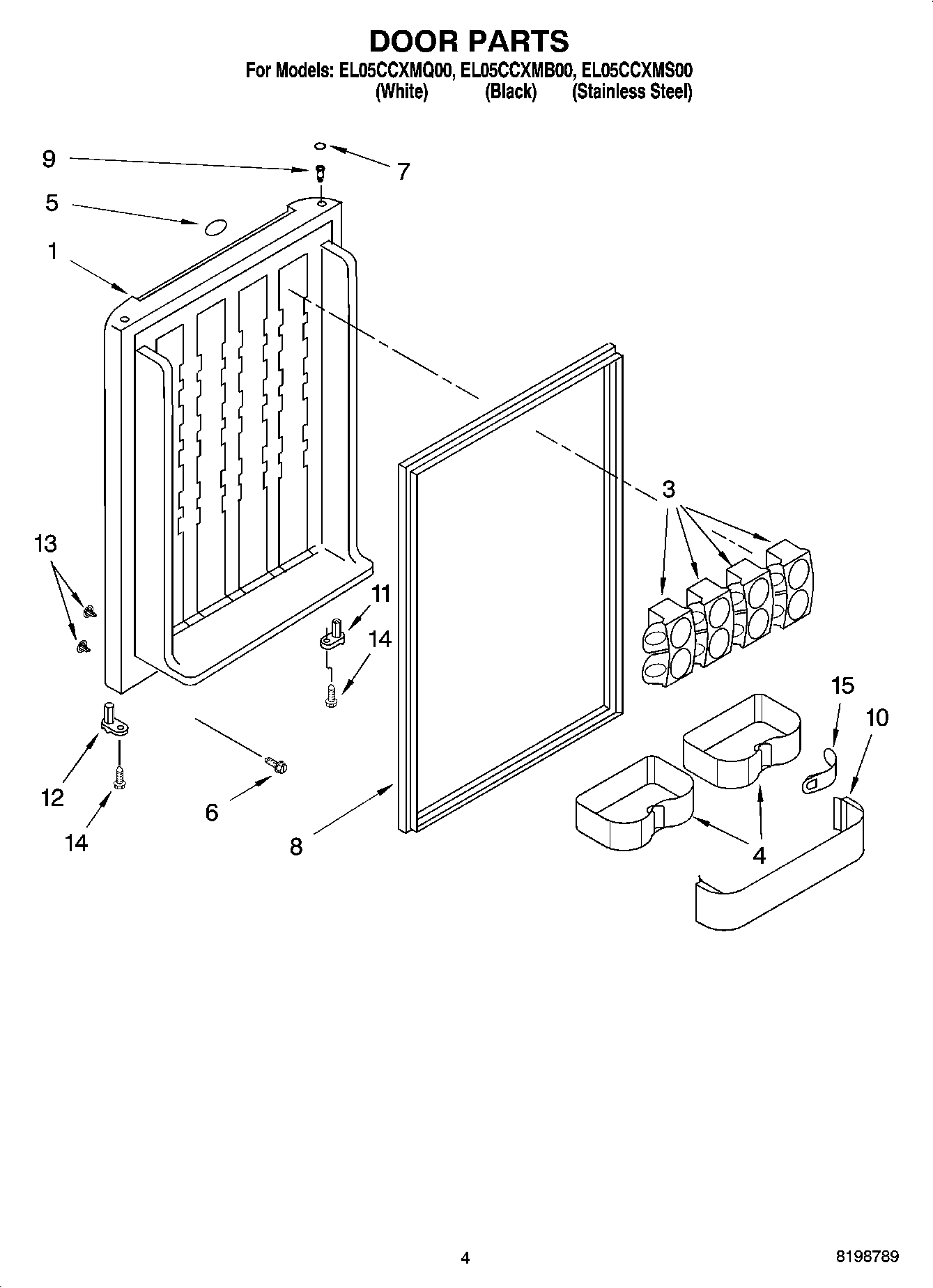

EL05CCXMQ00 04 – DOOR PARTS

Products

Position	Product
1	Door (White)
1	Door (Black)
1	Door (Stainless)
3	Can Rack (4)
4	Door Bin (2)
5	Nameplate
6	Screw
7	Cover (White)
7	Cover (Black)
8	Gasket, Door (Black)
8	Gasket, Door (White)
9	Bushing, Upper (White)
9	Bushing, Upper (Black)
10	Door Bin
11	Door Closer (LH) (Black)
11	Door Closer (LH) (White)
12	Door Closer (RH) (White)
12	Door Closer (RH) (Black)
13	Bushing
14	Screw
15	Separator, Bottle
