EL05CCXRS00 04 – DOOR PARTS

EL05CCXRS00 04 – DOOR PARTS

Written by

in

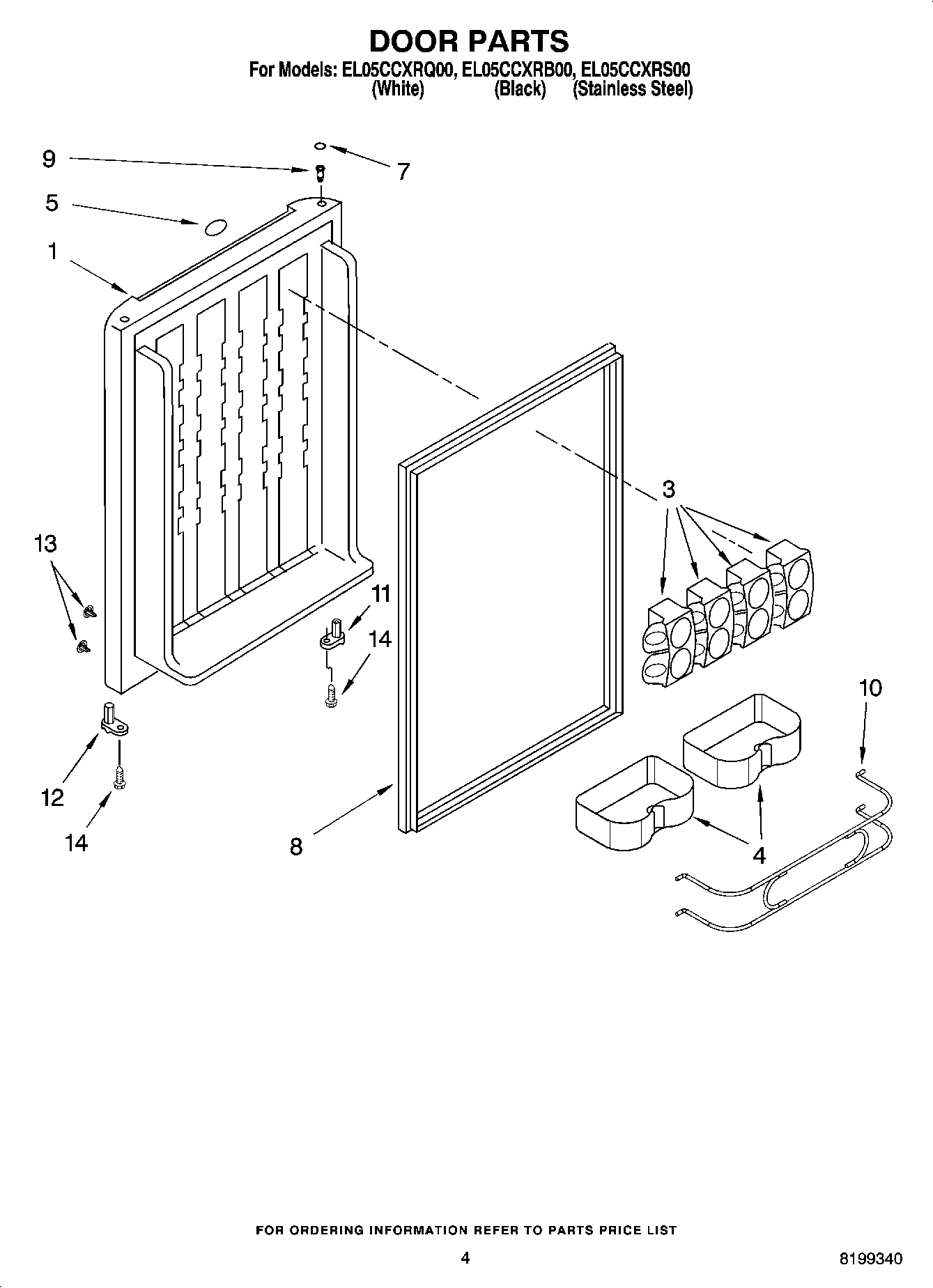

EL05CCXRS00 04 – DOOR PARTS

Products

PositionProduct
1Door (Black)
1Door (White)
1Door (Stainless)
3Can Rack (4)
4Door Bin (2)
5Nameplate
7Cover (Black)
7Cover (White)
8Gasket, Door (White)
8Gasket, Door (Black)
9Bushing, Upper (White)
9Bushing, Upper (Black)
10Door Rack
11Door Closer (LH) (Black)
11Door Closer (LH) (White)
12Door Closer (RH) (Black)
12Door Closer (RH) (White)
13Bushing
14Screw
