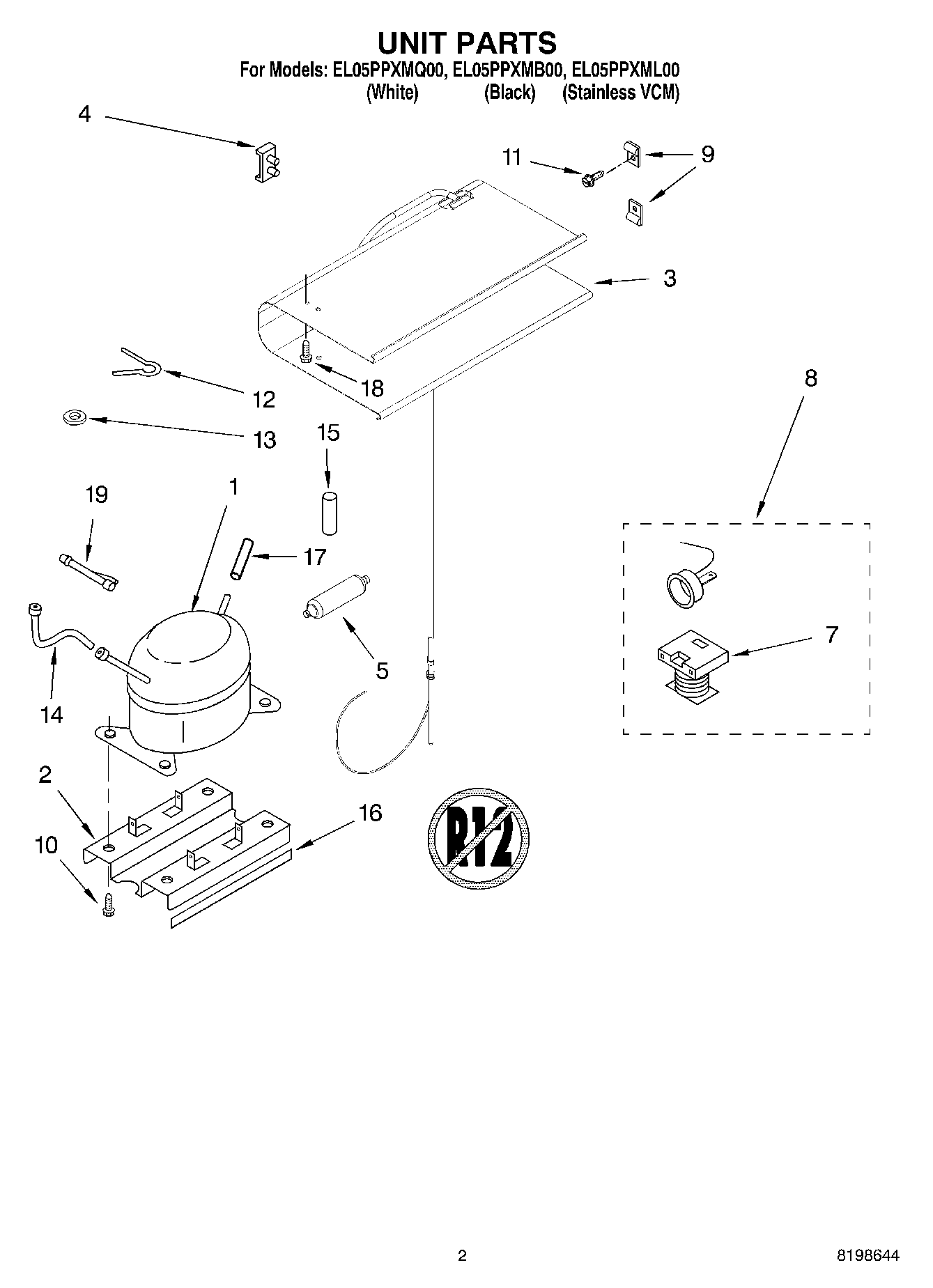

EL05PPXML00 02 – UNIT PARTS

EL05PPXML00 02 – UNIT PARTS

Written by

in

EL05PPXML00 02 – UNIT PARTS

Products

PositionProduct
1Compressor
2Base, Compressor
3Evaporator
4Retainer, Evaporator
5W10843121 Whirlpool Refrigerator Tube
7Relay (See Overload)
8Overload (Includes Relay)
9Support, Evaporator
10WP3390631 Whirlpool Screw
11Screw
12Pin, Cotter
13Washer
14Tube, Connector
15Gasket
16Trim, Base
17Tube, Service
18WP489491 Whirlpool Refrigerator Screw
19Connector, Suction Line
19REFRIGERANT CHARGE 1.94 oz. (R-134)
