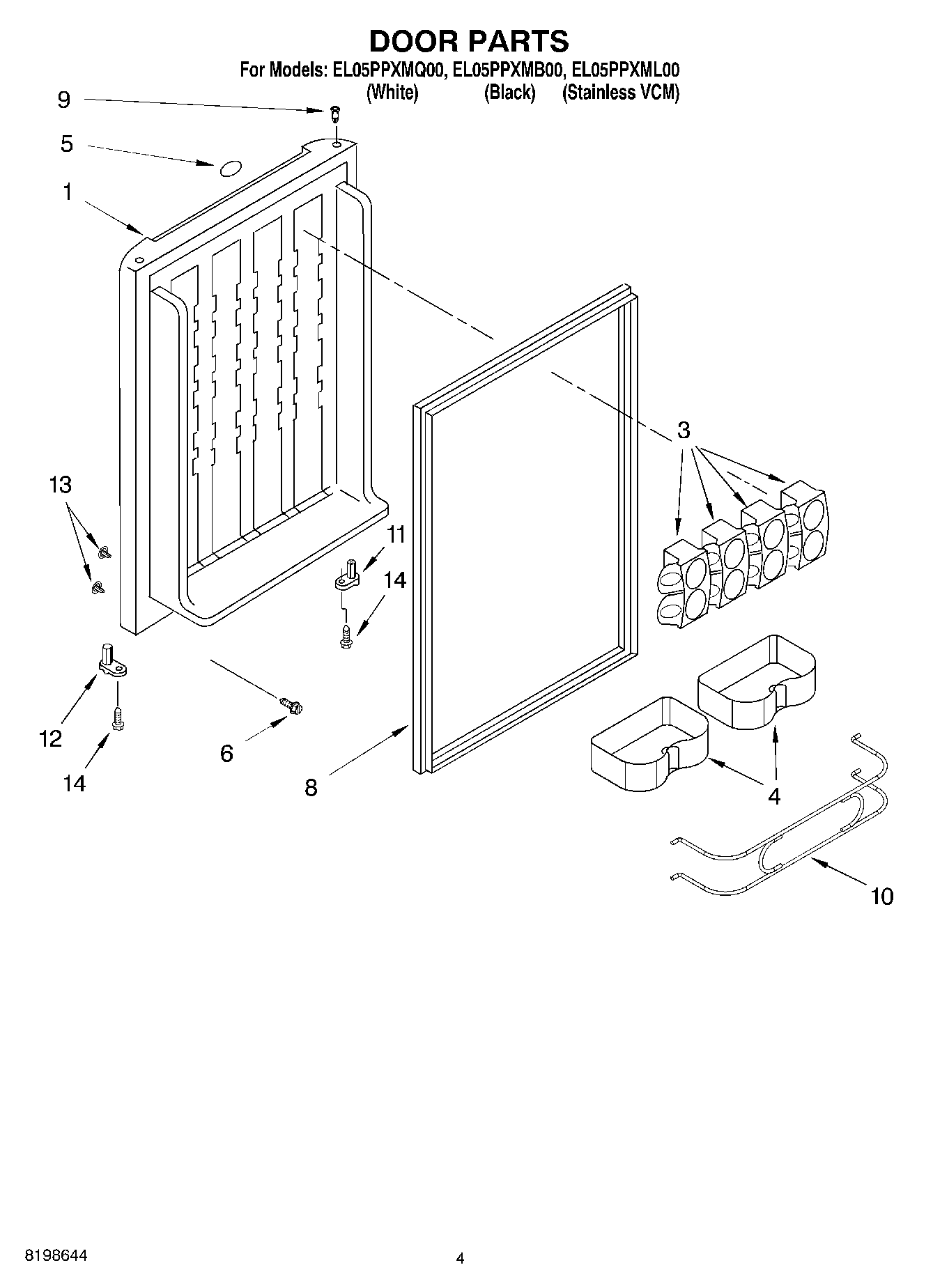

EL05PPXML00 04 – DOOR PARTS

Products

PositionProduct
1Door (Black)
1Door (White)
1Door (Stainless VCM)
3Can Rack (4)
4Door Bin (2)
5Nameplate
6Screw
8Gasket, Door (Black)
8Gasket, Door (White)
9Bushing, Upper (Black)
9Bushing, Upper (White)
10Door Rack
11Door Closer (LH) (Black)
11Door Closer (LH) (White)
12Door Closer (RH) (Black)
12Door Closer (RH) (White)
13Bushing
14Screw
