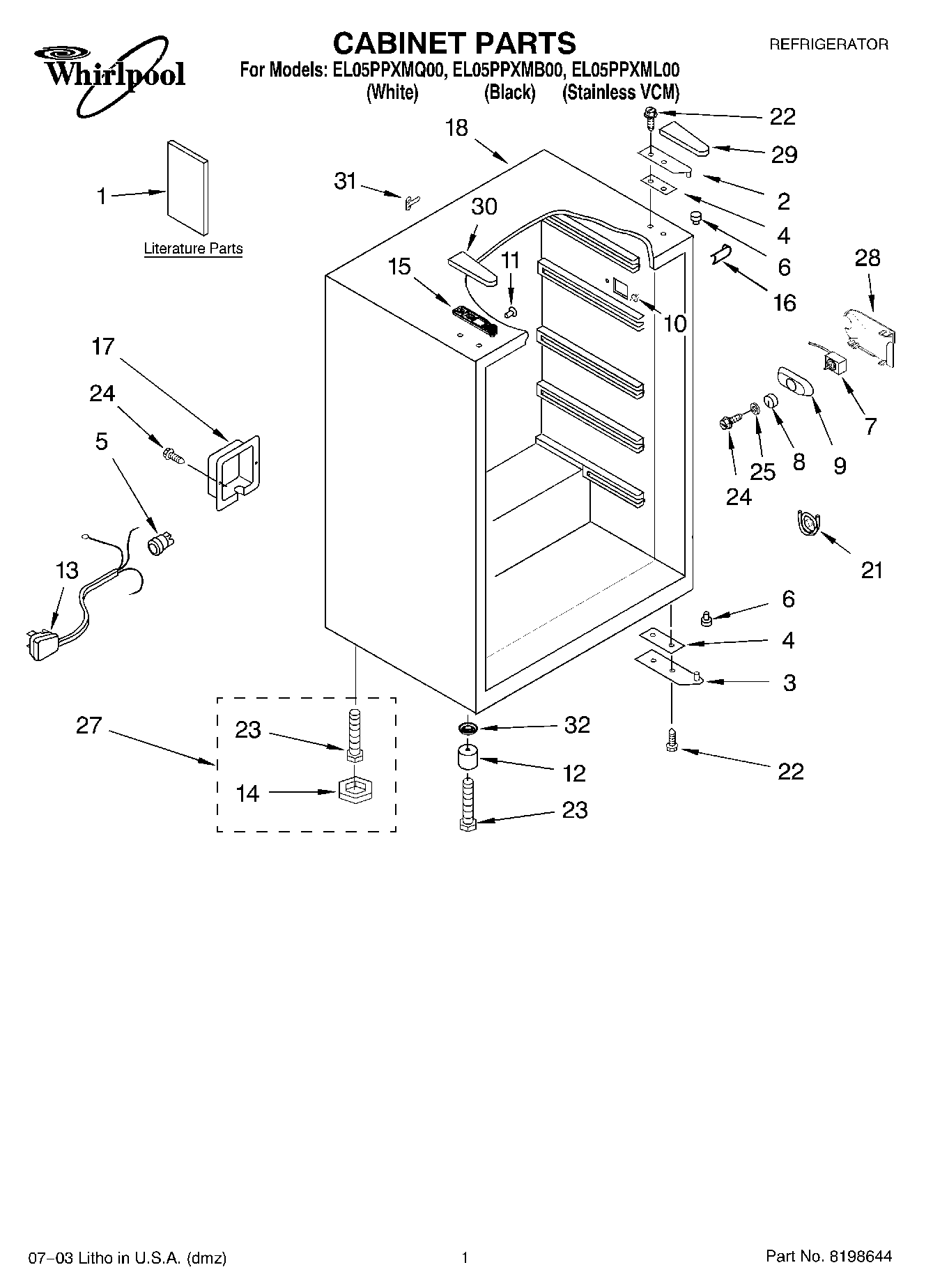

EL05PPXMQ00 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
2	Hinge, Top (White)
3	Hinge, Bottom (White)
3	Hinge, Top (Black)
4	Shim, Hinge
5	Strain Relief
6	Bushing
7	Thermostat
8	Knob, Thermostat
9	Control Box
10	Stud
11	Stud
12	Foot, Front (Black-Left)
12	Foot, Front (Black-Right)
12	Foot, Front (White-Right)
12	Foot, Front (White-Left)
13	Power Cord
14	Cap, Leveler
15	Door Lock
16	Filler, Wrapper (White)
16	Filler, Wrapper (Black)
17	Box, Junction
18	Cabinet (Not A Serviceable Part)
21	Bulb, Thermostat
22	Screw
23	Leveler
24	Screw
25	Washer
27	Kit, Leg Leveler
28	Shield, Control Box
29	Cover, Hinge (White)
29	Bulb, Thermostat
30	Cover, Lock (White)
30	Cover, Lock (Black)
31	Key
32	Washer
