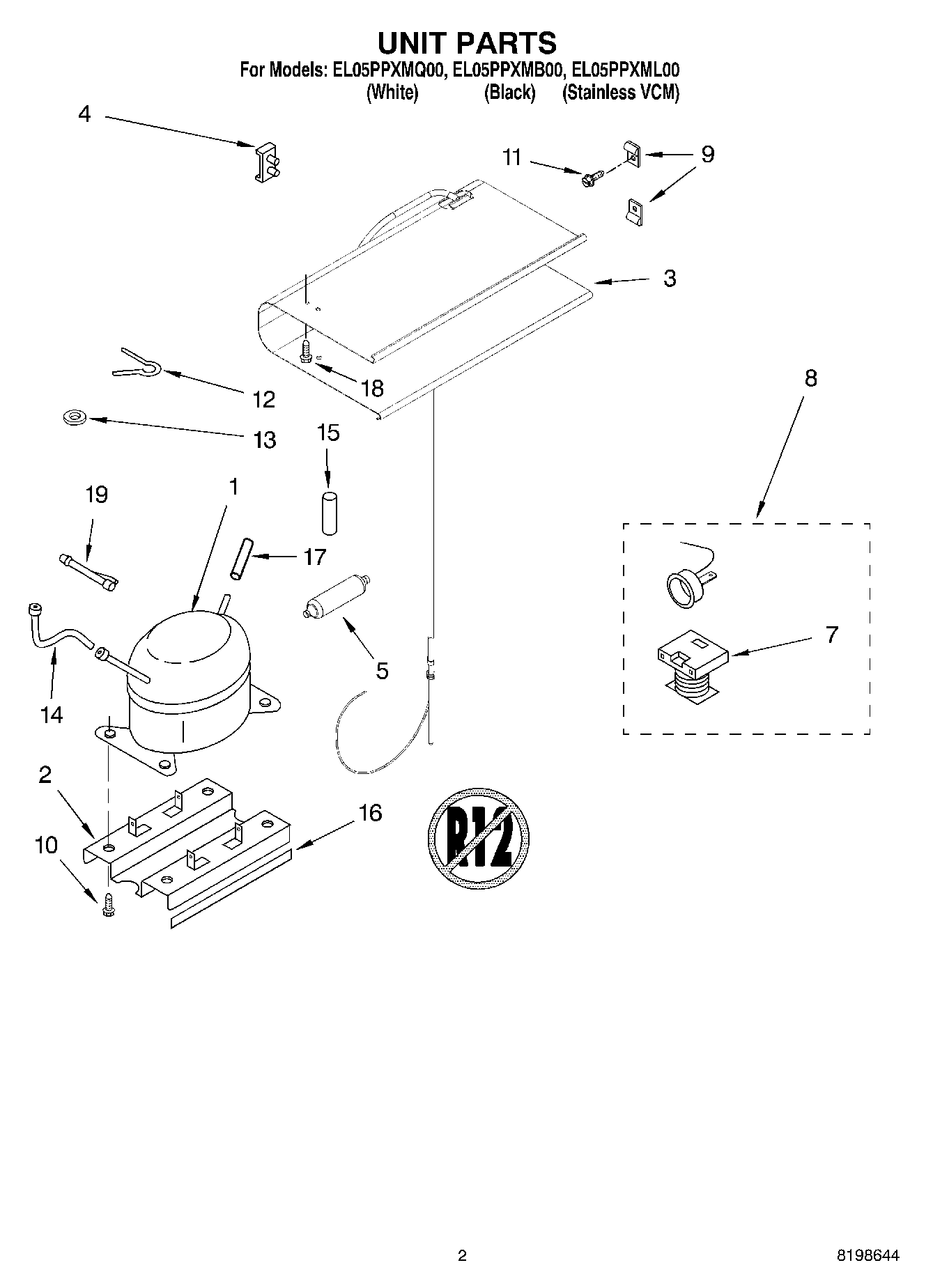

EL05PPXMQ00 02 – UNIT PARTS

Products

Position	Product
1	Compressor
2	Base, Compressor
3	Evaporator
4	Retainer, Evaporator
5	W10843121 Whirlpool Refrigerator Tube
7	Relay (See Overload)
8	Overload (Includes Relay)
9	Support, Evaporator
10	WP3390631 Whirlpool Screw
11	Screw
12	Pin, Cotter
13	Washer
14	Tube, Connector
15	Gasket
16	Trim, Base
17	Tube, Service
18	WP489491 Whirlpool Refrigerator Screw
19	REFRIGERANT CHARGE 1.94 oz. (R-134)
19	Connector, Suction Line
