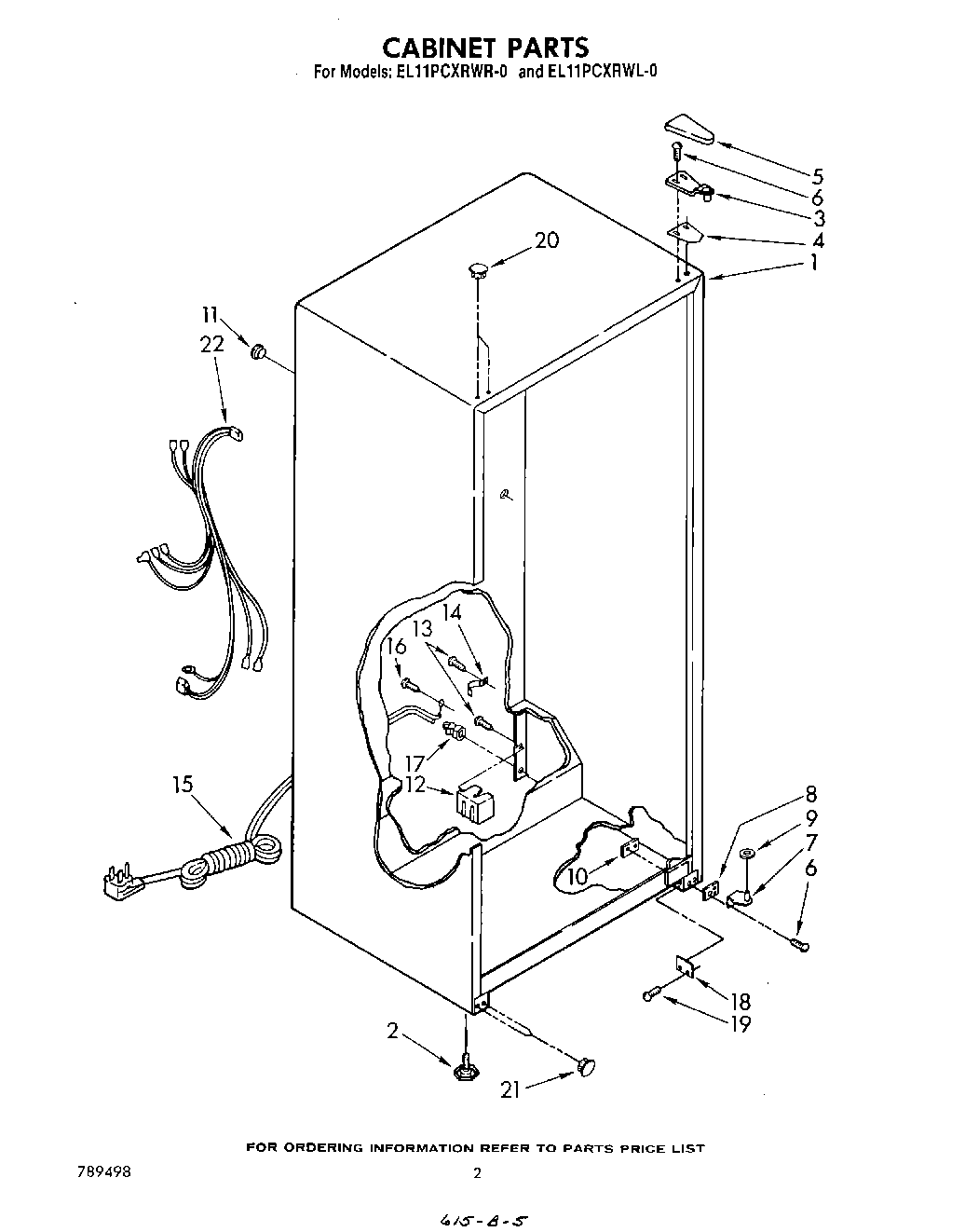

EL11PCXRWL0 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11117769 Whirlpool Refrigerator Leveler
3Shim, Hinge Top
4Shim, Hinge
51119787 Whirlpool Refrigerator Hinge Cover
6WP999367 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hinge, Bottom R.H.
7Hinge, Bottom L.H.
8Shim, Bottom Hinge
8Shim (Repair)
9WP487576 Whirlpool Washer
10Tap Plate, Bottom
11Grommet, Wiring
12Box, Junction
13W11624204 Whirlpool Screw
14Clamp
15Cord, Service
16Screw, 8-32 x 3/8
17Bushing, Strain Relief
18Tube, Rail Cover (Almond)
18Tube, Rail Cover (White)
19Screw
20Hole Plug (2) (Almond)
20Hole Plug (2) (White)
21WPL 941416
21Hole, Plug (2) (Almond)
22Cabinet Wiring Assembly
