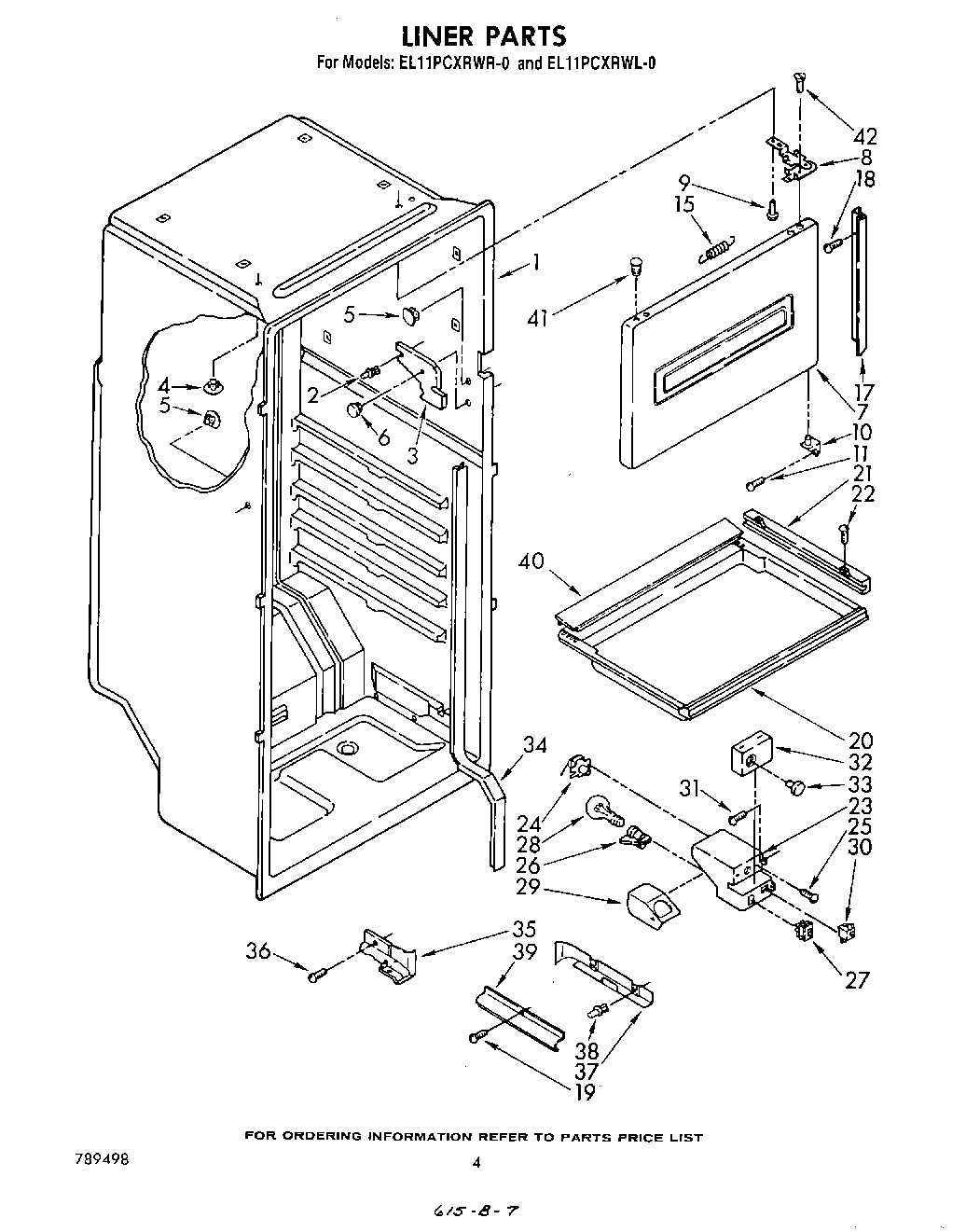

EL11PCXRWL0 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Shield, Electrical
4	Hole Plug
5	Hole Plug
6	Grommet, Wiring
7	Door, Evaporator
8	Hinge, Evaporator Door Top
10	Support, Evaporator Door
15	Spring
17	Evaporator Door, Baffle Side
19	Screw, 8-15 x 1/2 (4)
20	Chiller Tray Assembly
21	Chiller Slide (2)
22	WP488163 Whirlpool Refrigerator Screw
23	Box, Control
24	Thermostat & Barrier Assembly
25	WP489128 Whirlpool Refrigerator Screw
26	4387478 Whirlpool Refrigerator Light Socket
27	WP938213 Whirlpool Refrigerator Power Switch
28	W11679940 Whirlpool Refrigerator Light Bulb Assembly
29	Light Shield
30	W11384469 Whirlpool Door Switch
31	WP489069 Whirlpool Compactor Screw
32	Cover, Control Box
33	Knob, Control
34	Cover, Tube (Rear)
35	Cover Tube, Bottom
36	screw (repair)
36	W11693756 Whirlpool Screw Assembly
37	Wire Cover (Rear)
38	Rivet, Plastic (2)
39	Wire Cover (Front)
40	Damper, Chiller
41	Hole Plug (2)
42	Screw
