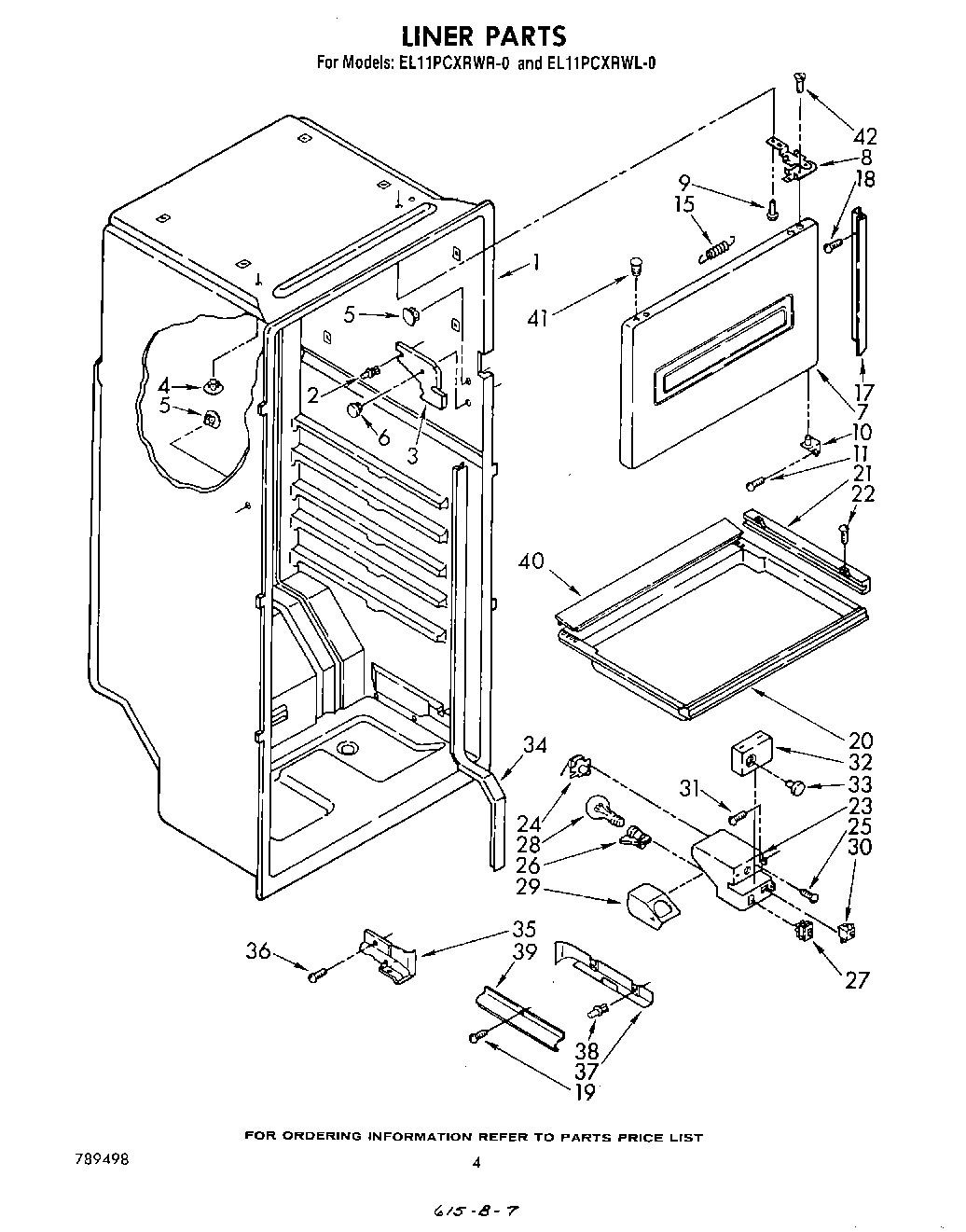

| 1 | Liner (Not A Serviceable Part) |
| 2 | 939962 Whirlpool Refrigerator Rivet |
| 3 | Shield, Electrical |
| 4 | Hole Plug |
| 5 | Hole Plug |
| 6 | Grommet, Wiring |
| 7 | Door, Evaporator |
| 8 | Hinge, Evaporator Door Top |
| 10 | Support, Evaporator Door |
| 15 | Spring |
| 17 | Evaporator Door, Baffle Side |
| 19 | Screw, 8-15 x 1/2 (4) |
| 20 | Chiller Tray Assembly |
| 21 | Chiller Slide (2) |
| 22 | WP488163 Whirlpool Refrigerator Screw |
| 23 | Box, Control |
| 24 | Thermostat & Barrier Assembly |
| 25 | WP489128 Whirlpool Refrigerator Screw |
| 26 | 4387478 Whirlpool Refrigerator Light Socket |
| 27 | WP938213 Whirlpool Refrigerator Power Switch |
| 28 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 29 | Light Shield |
| 30 | W11384469 Whirlpool Door Switch |
| 31 | WP489069 Whirlpool Compactor Screw |
| 32 | Cover, Control Box |
| 33 | Knob, Control |
| 34 | Cover, Tube (Rear) |
| 35 | Cover Tube, Bottom |
| 36 | W11693756 Whirlpool Screw Assembly |
| 36 | screw (repair) |
| 37 | Wire Cover (Rear) |
| 38 | Rivet, Plastic (2) |
| 39 | Wire Cover (Front) |
| 40 | Damper, Chiller |
| 41 | Hole Plug (2) |
| 42 | Screw |
