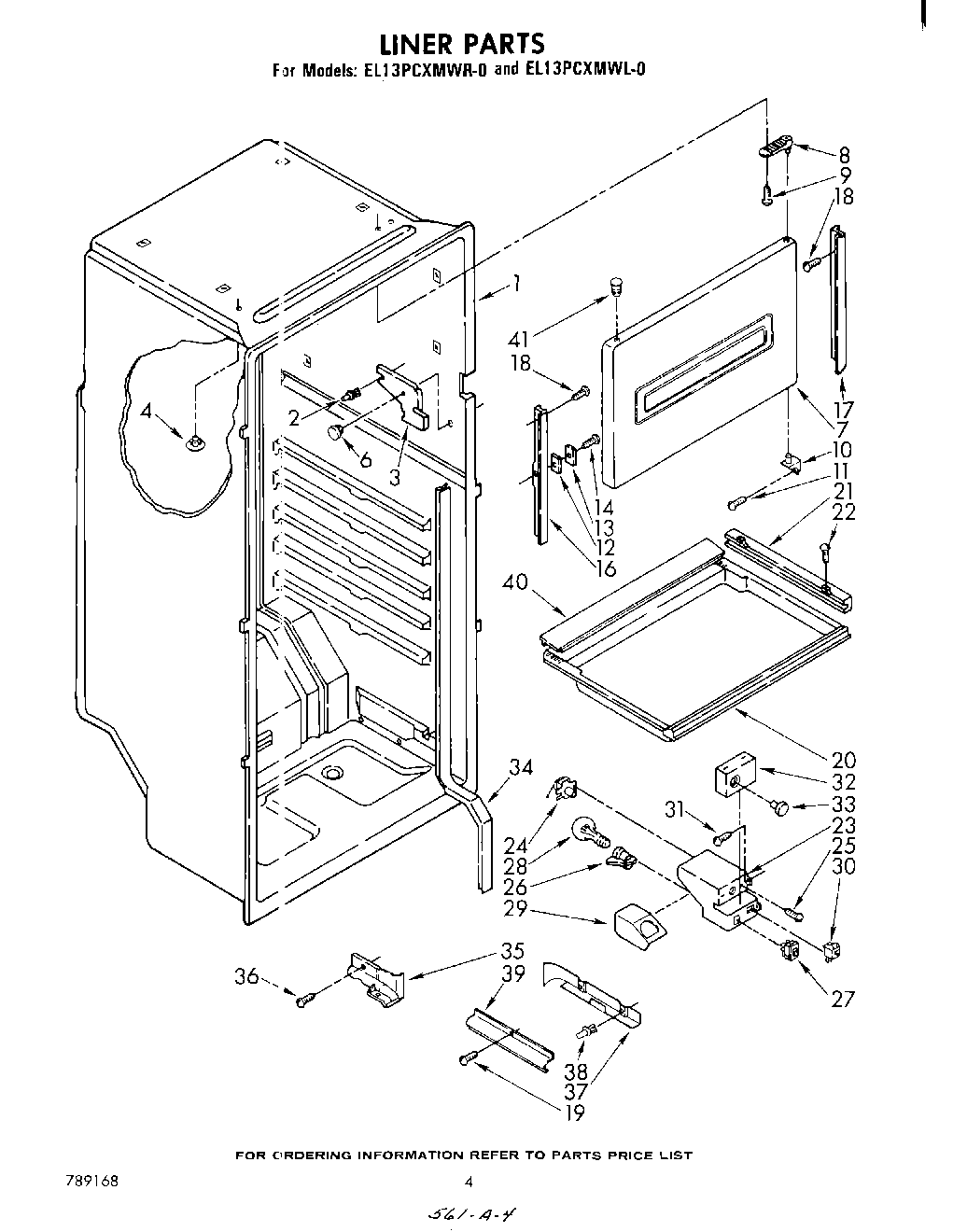

EL13PCXMWL0 03 – LINER , LIT/OPTIONAL

EL13PCXMWL0 03 – LINER , LIT/OPTIONAL

Written by

in

EL13PCXMWL0 03 – LINER , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	paint, spray 13 oz. (coffee)
	350942 Whirlpool Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest
	Paint, Spray 13 Oz. (Avocado)
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Shield, Electrical
4	Hole Plug
6	Grommet, Wiring
7	Door, Evaporator
8	Hinge, Evaporator Door
10	Support, Evaporator Door
12	Plate, Magnet (2)
13	Magnet
14	Screw, 8 x 1-9/16
16	Evaporator Door, Baffle Magnet
17	Evaporator Door, Baffle Side
19	Screw, 8-15 x 1/2 (4)
20	Chiller Tray Assembly
21	Chiller Slide (2)
22	WP488163 Whirlpool Refrigerator Screw
23	Box, Control
24	Thermostat & Barrier Assembly
25	WP489128 Whirlpool Refrigerator Screw
26	4387478 Whirlpool Refrigerator Light Socket
27	WP938213 Whirlpool Refrigerator Power Switch
28	W11679940 Whirlpool Refrigerator Light Bulb Assembly
29	Light Shield
30	W11384469 Whirlpool Door Switch
31	WP489069 Whirlpool Compactor Screw
32	Cover, Control Box
33	Knob, Control
34	Cover, Tube (Rear)
35	Cover Tube, Bottom
36	W11693756 Whirlpool Screw Assembly
36	screw (repair)
37	Wire Cover (Rear)
38	Rivet, Plastic (2)
39	Wire Cover (Front)
40	Damper, Chiller
41	WPL 876029
41	WPL 799833
41	Enamel, Black (1 Qt. Uncut)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	WP505587 Whirlpool Refrigerator Sealer
41	WP542638 Whirlpool Refrigerator Grease
41	72113 Whirlpool Touch-Up Paint
41	511873 Whirlpool Refrigerator Paint
41	799344 Whirlpool Refrigerator Paint
41	WP503695 Whirlpool Refrigerator Sealer
41	WPL 789168
41	WPL 946487
41	72017 Whirlpool Appliance Touch-Up Paint White
41	WPL 946489
41	WPL 946491
41	72032 Whirlpool Touch Up Paint Black
41	72109 Whirlpool Dacor Avocado Touch-Up Paint
41	Enamel, New Avocado (1 Qt. Uncut)
41	212643 Whirlpool Refrigerator Permagum Sealer
41	Enamel, Coffee (1 Qt. Uncut)
41	606755 Whirlpool Refrigerator Bag
41	Platinum (Uncut)
41	TAPE, VINYL (3/4 X 108“)
41	WPL 943633
41	Enamal, Toast (1 Qt. Uncut)
41	Golden Harvest (Uncut)
41	Hole Plug (2)
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	876370 Whirlpool Refrigerator Insulation
41	Paint, Touch-Up 1/2 Oz. (Coffee)
41	Almond (Uncut)
41	WP72107 Whirlpool Touchup
41	WPL 72112
41	WPL 799351
