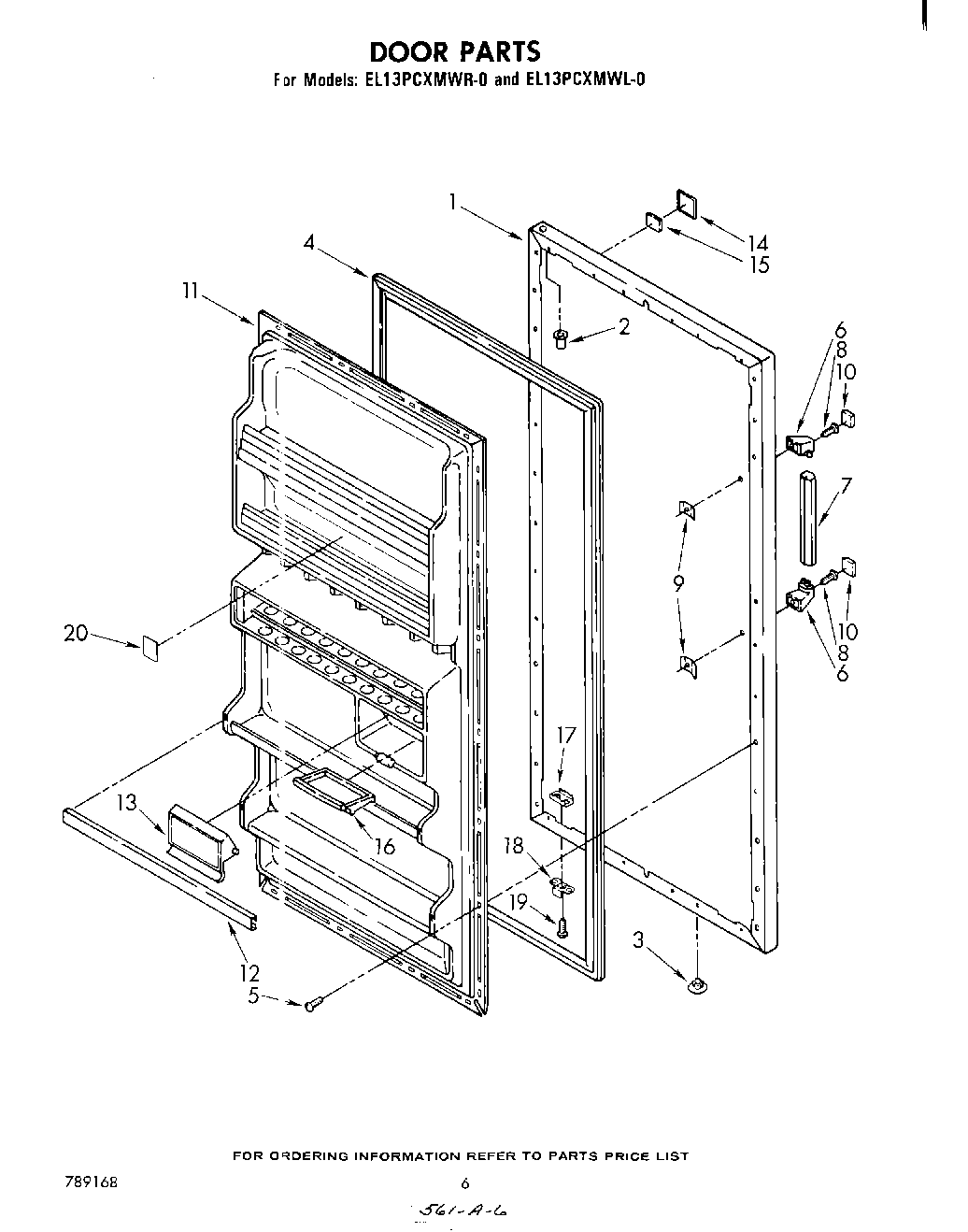

EL13PCXMWL0 04 – DOOR

Products

PositionProduct
1Refrigerator Door Panel R.H. (Almond)
1Refrigerator Door Panel R.H. (Almond Refrigerator Door Panel L.H.)
1Refrigerator Door Panel R.H. (Golden Harvest)
1Refrigerator Door Panel R.H. (White)
1Refrigerator Door Panel R.H. (White)
1Refrigerator Door Panel R.H. (Golden Harvest)
1Refrigerator Door Panel R.H. (Coffee)
1Refrigerator Door Panel R.H. (New Avocado)
1Refrigerator Door Panel R.H. (Coffee)
1Refrigerator Door Panel R.H. (New Avocado)
2Cap, Hinge Sleeve (2)
3Hole Plug (2)
4Door, Gasket Magnetic
5WP489069 Whirlpool Compactor Screw
5SCREW
6End, Door Handle
7Handle, Center
8Screw, 8-15 x 1-5/8
9WP939101 Whirlpool Refrigerator Plate
10End Cover, Door Handle (2)
11Panel, Interior Door
12Trim, Door Shelf
13WPL 946998
14Nameplate
15Tape Strip
17W10833053 Whirlpool Refrigerator Plate
18Bracket, Door Stop
19WP488921 Whirlpool Refrigerator Screw
19Screw (Repair)
20Use & Care Label
