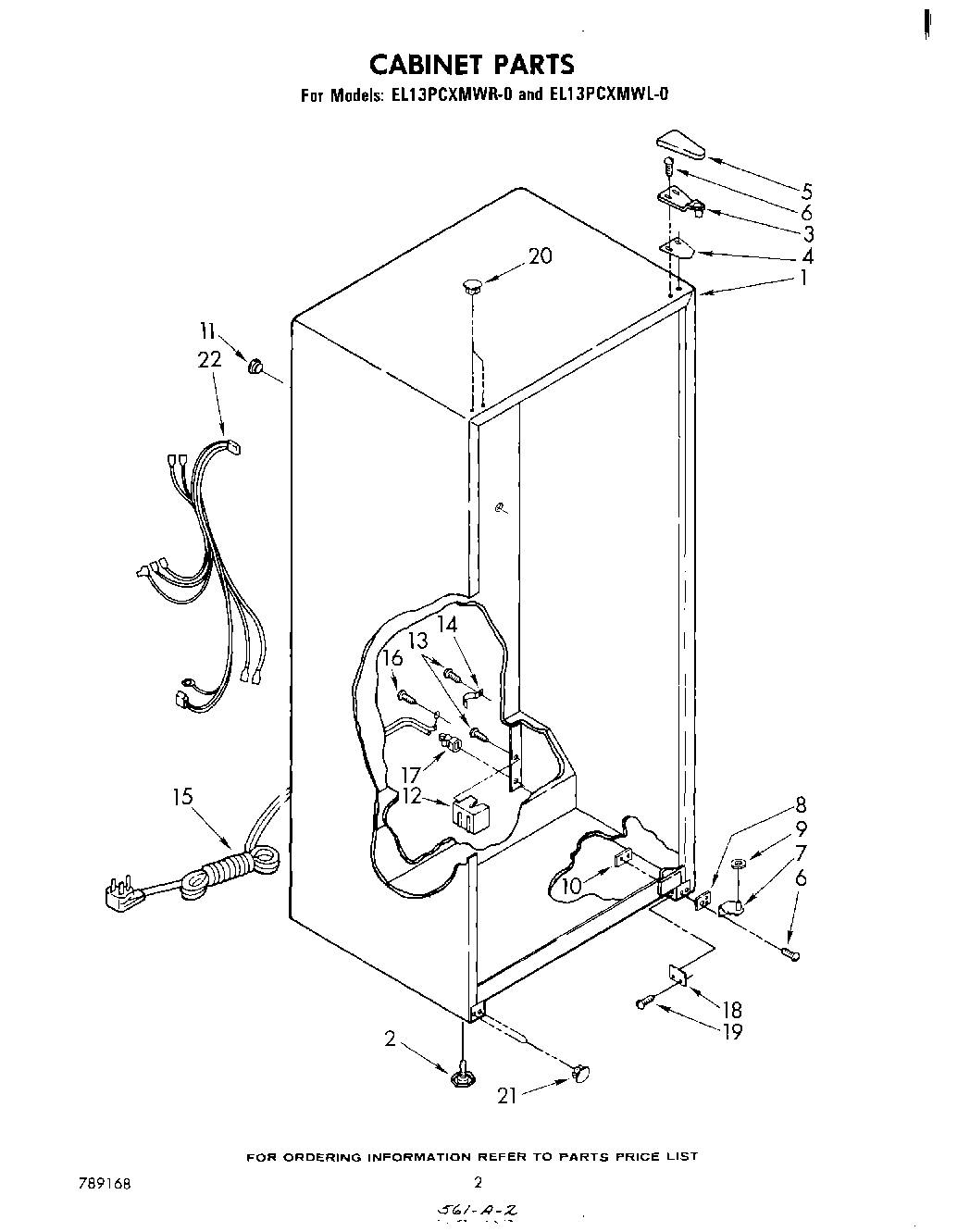

EL13PCXMWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11117769 Whirlpool Refrigerator Leveler
3	Shim, Hinge Top
4	Shim, Hinge
5	Hinge Cover (New Avocado)
5	Hinge, Cover (Coffee)
5	1119787 Whirlpool Refrigerator Hinge Cover
5	Hinge Cover (Golden Harvest)
6	WP999367 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	Hinge, Bottom R.H.
7	Hinge, Bottom L.H.
8	Shim, Bottom Hinge
8	Shim (Repair)
9	WP487576 Whirlpool Washer
10	Tap Plate, Bottom
11	Grommet, Wiring
12	Box, Junction
13	W11624204 Whirlpool Screw
14	Clamp
15	Cord, Service
16	Screw, 8-32 x 3/8
17	Bushing, Strain Relief
18	WPL 935710
18	Tube, Rail Cover (Coffee)
18	Tube, Rail Cover (Almond)
18	Tube, Rail Cover (Golden Harvest)
18	Tube, Rail Cover (White)
19	Screw
20	Hole Plug (2) (White)
20	Hole Plug (2) (Almond)
20	Hole Plug (New Avocado)
20	Hole Plug (Coffee)
20	Hole Plug (2) (Golden Harvest)
21	Hole, Plug (2) (Almond)
21	WPL 941416
21	Plug Button (2) (New Avocado)
21	Plug Button (2) (Coffee)
21	Hole Plug (2) (Golden Harvest)
22	Cabinet Wiring Assembly
