EL13PCXRWR0 03 – LINER, LIT/OPTIONAL

EL13PCXRWR0 03 – LINER, LIT/OPTIONAL

Written by

in

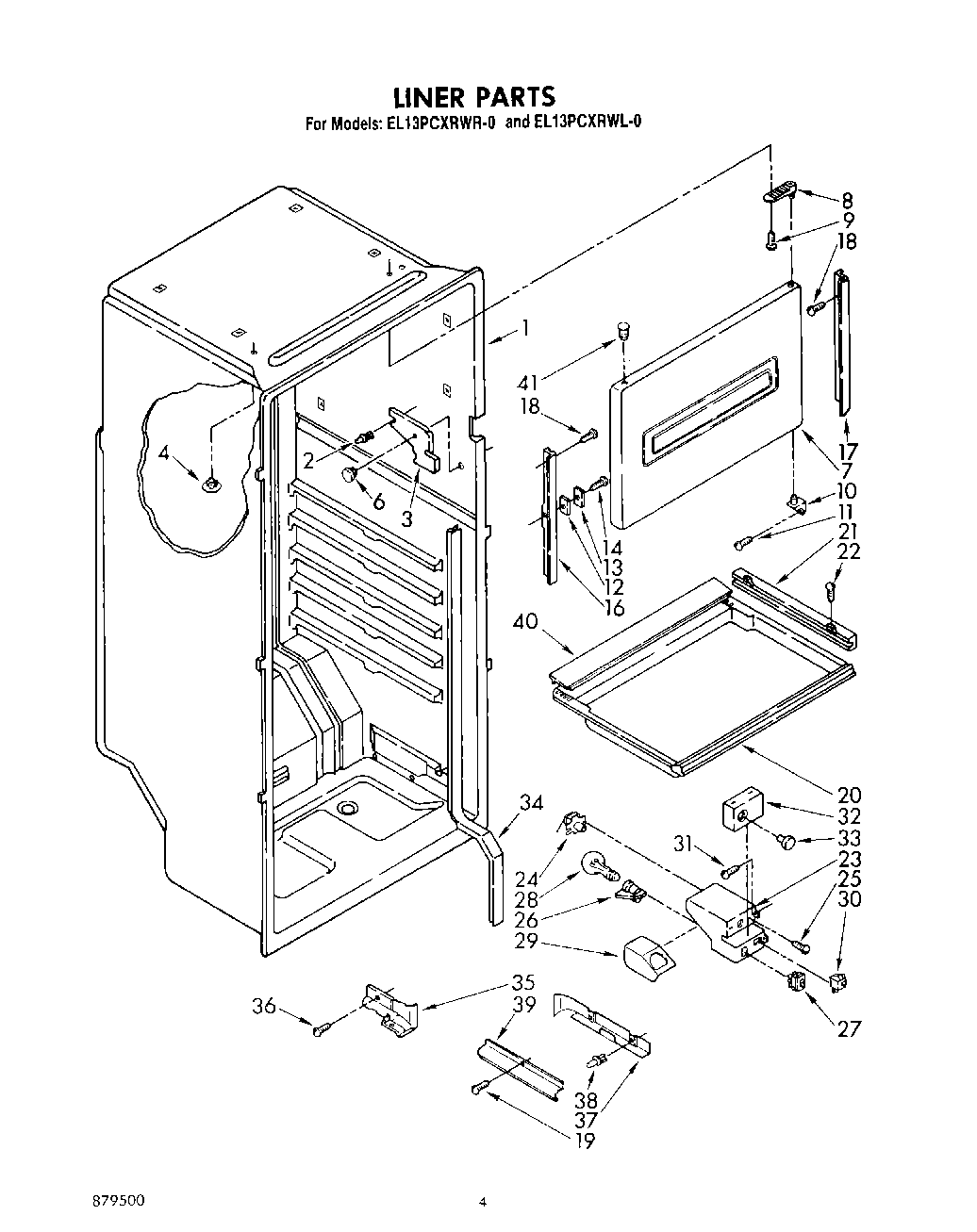

EL13PCXRWR0 03 – LINER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT879500
WPL LIT943633
WPL LIT1110371
WPL LIT1106976
WPL LIT1100411
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
3Shield, Electrical
4Hole Plug
6Grommet, Wiring
7Door, Evaporator
8Hinge, Evaporator Door
10Support, Evaporator Door
12Plate, Magnet (2)
13Magnet
14Screw, 8 x 1-9/16
16Evaporator Door, Baffle Magnet
17Evaporator Door, Baffle Side
19Screw, 8-15 x 1/2 (4)
20Chiller Tray Assembly
21Chiller Slide (2)
22WP488163 Whirlpool Refrigerator Screw
23Box, Control
24Thermostat & Barrier Assembly
25WP489128 Whirlpool Refrigerator Screw
264387478 Whirlpool Refrigerator Light Socket
27WP938213 Whirlpool Refrigerator Power Switch
28W11679940 Whirlpool Refrigerator Light Bulb Assembly
29Light Shield
30W11384469 Whirlpool Door Switch
31WP489069 Whirlpool Compactor Screw
32Cover, Control Box
33Knob, Control
34Cover, Tube (Rear)
35Cover Tube, Bottom
36screw (repair)
36W11693756 Whirlpool Screw Assembly
37Wire Cover (Rear)
38Rivet, Plastic (2)
39Wire Cover (Front)
40Damper, Chiller
41350930 Whirlpool White Spray Paint
41285006 Whirlpool Spray
41WPL 799351
41350956 Whirlpool Spray Assembly
41WPL 941416
4172017 Whirlpool Appliance Touch-Up Paint White
41799344 Whirlpool Refrigerator Paint
41WP72107 Whirlpool Touchup
41Leveler (Thinner)
41CEMENT, ALUMILASTIC (1 1/4 OZ.)
41WP542638 Whirlpool Refrigerator Grease
41WPL 799833
41WPL 876029
4172032 Whirlpool Touch Up Paint Black
41WP505587 Whirlpool Refrigerator Sealer
41WP503695 Whirlpool Refrigerator Sealer
41876370 Whirlpool Refrigerator Insulation
41606755 Whirlpool Refrigerator Bag
41511873 Whirlpool Refrigerator Paint
41350942 Whirlpool Spray Paint
41212643 Whirlpool Refrigerator Permagum Sealer
41Golden Harvest (Uncut)
41Golden Harvest
41Enamel, Black (1 Qt. Uncut)
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41Almond (Uncut)
41TAPE, VINYL (3/4 X 108“)
