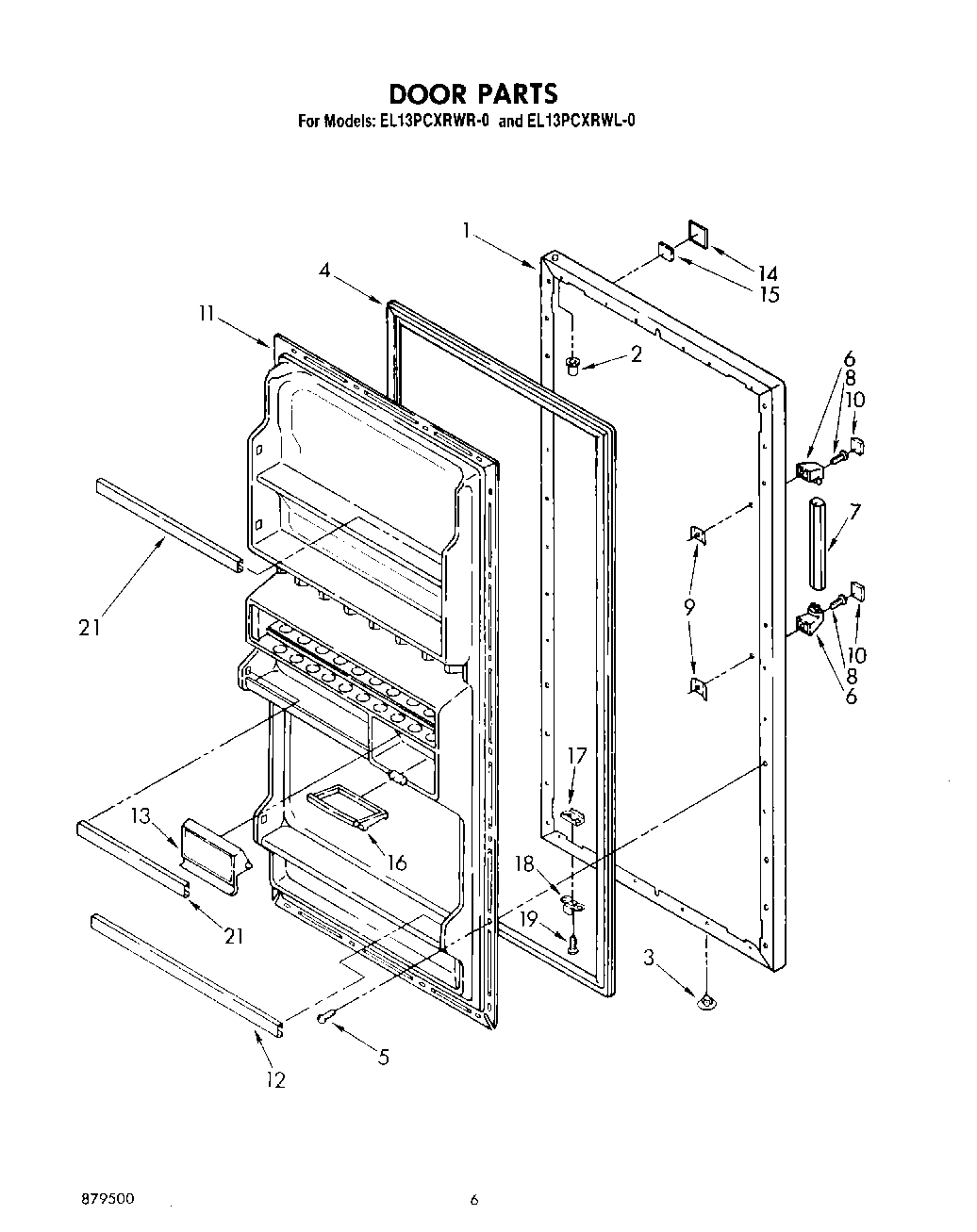

EL13PCXRWR0 04 – DOOR

EL13PCXRWR0 04 – DOOR

Written by

in

EL13PCXRWR0 04 – DOOR

Products

PositionProduct
1Refrigerator Door Panel R.H. (Golden Harvest)
1Refrigerator Door Panel R.H. (Almond Refrigerator Door Panel L.H.)
1Refrigerator Door Panel R.H. (Golden Harvest)
1Refrigerator Door Panel R.H. (White)
1Refrigerator Door Panel R.H. (White)
1Refrigerator Door Panel R.H. (Almond)
2Cap, Hinge Sleeve (2)
3Hole Plug (2)
4Door, Gasket Magnetic
5WP489069 Whirlpool Compactor Screw
5SCREW
6End, Door Handle
7Door Handle, Center
7Door Handle, Center (For Platinum Model Only)
8Screw, 8-15 x 1-5/8
9WP939101 Whirlpool Refrigerator Plate
10End Cover, Door Handle (2)
11Panel, Interior Door
12Trim, Door Shelf (2)
13Compartment Door, Butter
14Nameplate
15Tape Strip
17W10833053 Whirlpool Refrigerator Plate
18Bracket, Door Stop
19Screw (Repair)
19WP488921 Whirlpool Refrigerator Screw
21Trim, Door Shelf (2)
