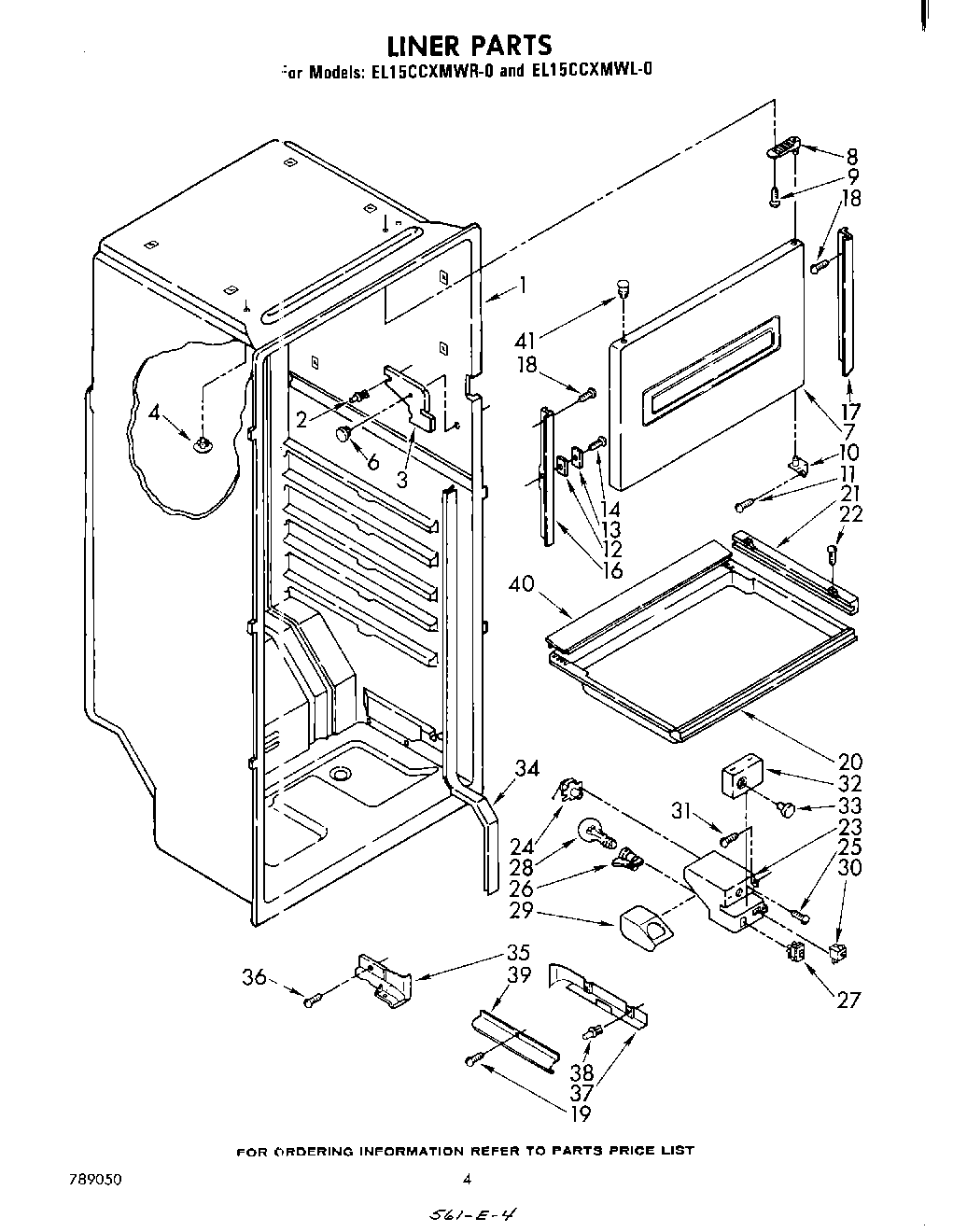

EL15CCXMWR0 03 – LINER , LIT/OPTIONAL

EL15CCXMWR0 03 – LINER , LIT/OPTIONAL

Written by

in

EL15CCXMWR0 03 – LINER , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	350942 Whirlpool Spray Paint
	Paint, Spray 13 Oz. (Avocado)
	285006 Whirlpool Spray
	Toast
	Golden Harvest
	Leveler (Thinner)
	paint, spray 13 oz. (coffee)
	350956 Whirlpool Spray Assembly
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Shield, Electrical
4	Hole Plug
6	Grommet, Wiring
7	Door, Evaporator
8	Hinge, Evaporator Door
10	Support, Evaporator Door
12	Plate, Magnet (2)
13	Magnet
14	Screw, 8 x 1-9/16
16	Evaporator Door, Baffle Magnet
17	Evaporator Door, Baffle Side
19	Screw, 8-15 x 1/2 (4)
20	Chiller Tray Assembly
21	Chiller Slide (2)
22	WP488163 Whirlpool Refrigerator Screw
23	Box, Control
24	Thermostat & Barrier Assembly
25	WP489128 Whirlpool Refrigerator Screw
26	4387478 Whirlpool Refrigerator Light Socket
27	WP938213 Whirlpool Refrigerator Power Switch
28	W11679940 Whirlpool Refrigerator Light Bulb Assembly
29	Light Shield
30	W11384469 Whirlpool Door Switch
31	WP489069 Whirlpool Compactor Screw
32	Cover, Control Box
33	Knob, Control
34	Cover, Tube (Rear)
35	Cover Tube, Bottom
36	screw (repair)
36	W11693756 Whirlpool Screw Assembly
37	Wire Cover (Rear)
38	Rivet, Plastic (2)
39	Wire Cover (Front)
40	Damper, Chiller
41	WPL 799351
41	WPL 946952
41	WPL 789050
41	WPL 945957
41	WPL 943633
41	TAPE, VINYL (3/4 X 108“)
41	876370 Whirlpool Refrigerator Insulation
41	606755 Whirlpool Refrigerator Bag
41	511873 Whirlpool Refrigerator Paint
41	212643 Whirlpool Refrigerator Permagum Sealer
41	WPL 72112
41	Platinum (Uncut)
41	Enamal, Toast (1 Qt. Uncut)
41	Golden Harvest (Uncut)
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Almond (Uncut)
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	WP503695 Whirlpool Refrigerator Sealer
41	WP505587 Whirlpool Refrigerator Sealer
41	WP542638 Whirlpool Refrigerator Grease
41	Enamel, New Avocado (1 Qt. Uncut)
41	Enamel, Coffee (1 Qt. Uncut)
41	Hole Plug (2)
41	WPL 945958
41	72113 Whirlpool Touch-Up Paint
41	Paint, Touch-Up 1/2 Oz. (Coffee)
41	72109 Whirlpool Dacor Avocado Touch-Up Paint
41	72032 Whirlpool Touch Up Paint Black
41	WPL 876029
41	WPL 799833
41	Enamel, Black (1 Qt. Uncut)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	72017 Whirlpool Appliance Touch-Up Paint White
