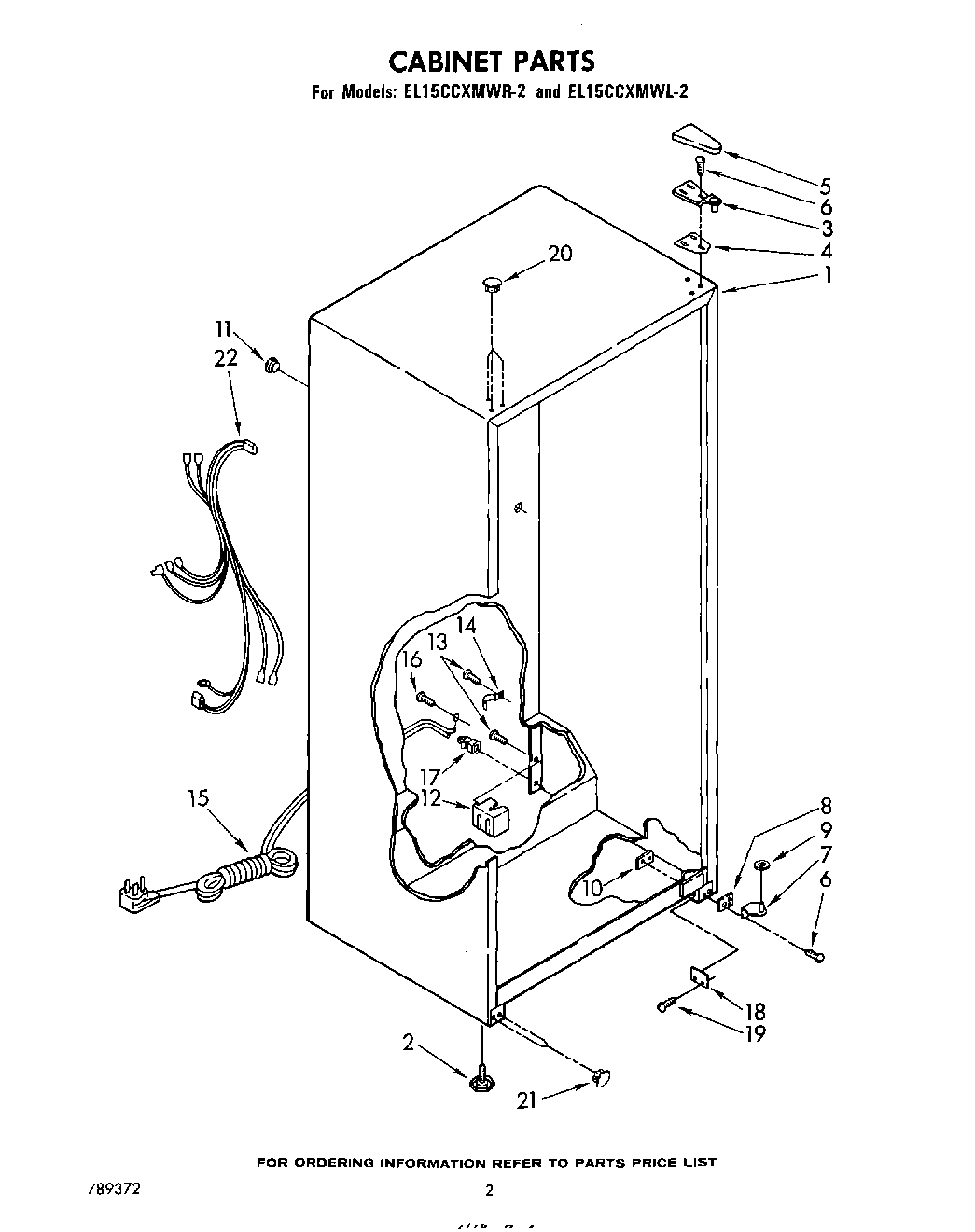

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | W11117769 Whirlpool Refrigerator Leveler |
| 3 | Hinge, Top |
| 4 | Shim, Hinge |
| 5 | Hinge, Cover (Coffee) |
| 5 | Hinge Cover (Toast) |
| 5 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 5 | Hinge Cover (Golden Harvest) |
| 6 | WP999367 Whirlpool Refrigerator Screw |
| 6 | Screw (Repair) |
| 7 | Hinge, Bottom R.H. |
| 7 | Hinge, Bottom L.H. |
| 8 | Shim (Repair) |
| 8 | Shim, Bottom Hinge |
| 9 | WP487576 Whirlpool Washer |
| 10 | Tap Plate, Bottom |
| 11 | Grommet, Wiring |
| 12 | Box, Junction |
| 13 | W11624204 Whirlpool Screw |
| 14 | Clamp |
| 15 | Cord, Service |
| 16 | Screw, 8-32 x 3/8 |
| 17 | Bushing, Strain Relief |
| 18 | Tube, Rail Cover (Golden Harvest) |
| 18 | Tube, Rail Cover (Toast) |
| 18 | Tube, Rail Cover (Almond) |
| 18 | Tube, Rail Cover (White) |
| 18 | Tube, Rail Cover (Platinum) |
| 18 | Tube, Rail Cover (Coffee) |
| 19 | Screw |
| 20 | Hole Plug (2) (Golden Harvest) |
| 20 | Hole Plug (3) (Toast) |
| 20 | Hole Plug (2) (White) |
| 20 | Hole Plug (2) (Almond) |
| 20 | Hole Plug (3) (Platinum) |
| 20 | Hole Plug (Coffee) |
| 21 | Hole Plug (2) (Platinum) |
| 21 | Hole Plug (2) |
| 21 | Hole Plug (2) (Golden Harvest) |
| 21 | Hole Plug (2) (Coffee) |
| 21 | Hole Plug (2) (Almond) |
| 21 | Hole Plug (2) (Toast) |
| 22 | Cabinet Wiring Assembly |
