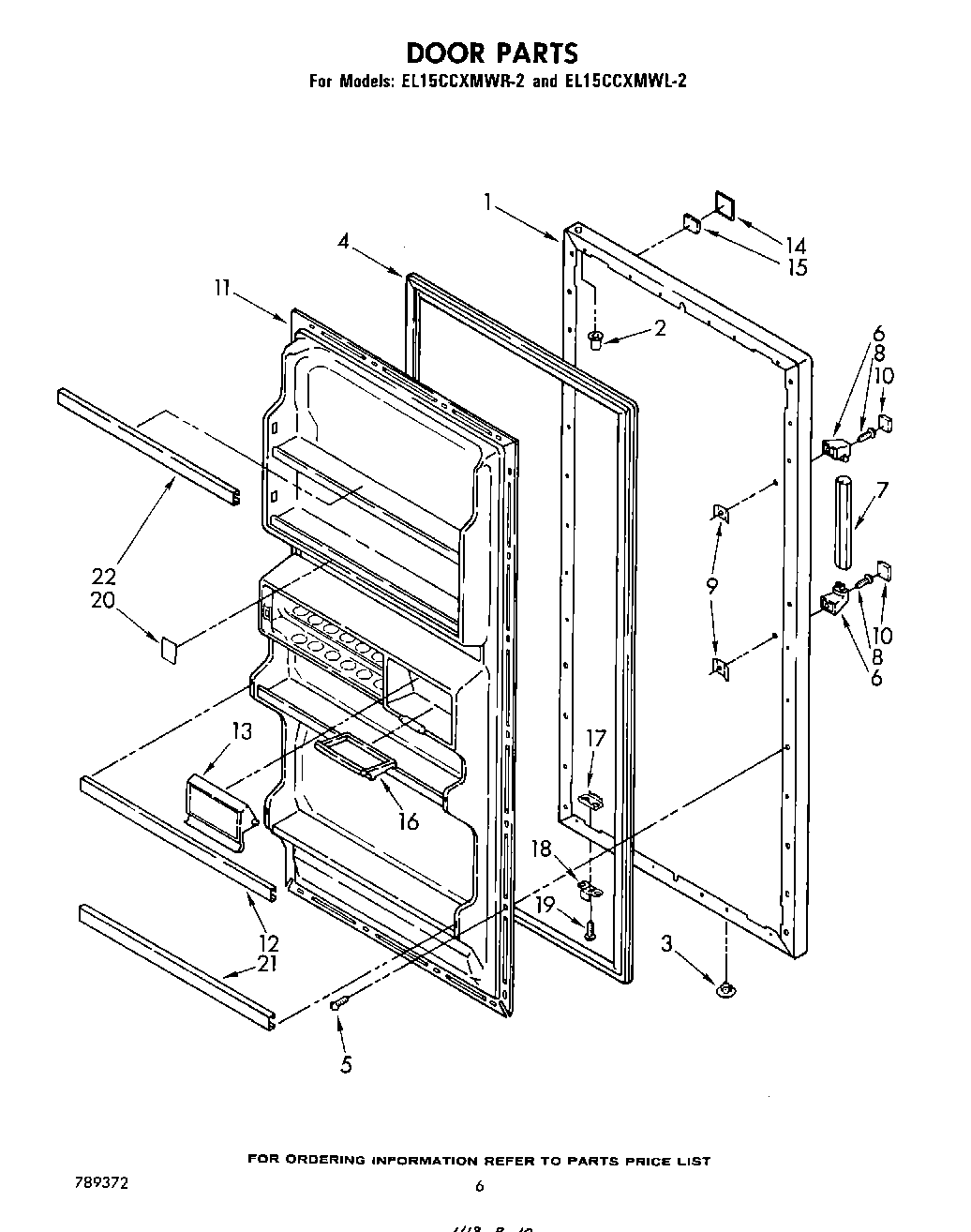

EL15CCXMWR2 04 – DOOR

Products

Position	Product
1	Refrigerator Door Panel R.H. (Platinum)
1	Refrigerator Door Panel R.H. (Almond)
1	Refrigerator Door Panel R.H. (Golden Harvest)
1	Refrigerator Door Panel R.H. (Coffee)
1	Refrigerator Door Panel R.H. (Almond)
1	Refrigerator Door Panel R.H. (Platinum)
1	Refrigerator Door Panel R.H. (Golden Harvest)
1	Refrigerator Door Panel R.H. (Coffee)
1	Refrigerator Door Panel R.H. (White)
1	Refrigerator Door Panel R.H. (White)
1	Refrigerator Door Panel R.H. (Toast)
1	Refrigerator Door Panel R.H. (Toast)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2) (Almond)
3	Hole Plug (2)
3	Hole Plug (2) (Coffee)
3	Hole Plug (2) (New Avocado)
3	Hole Plug (2) (Golden Harvest)
4	2188436A Whirlpool Refrigerator Door Gasket
5	WP489069 Whirlpool Compactor Screw
5	SCREW
6	End, Door Handle (2) (For Platinum Model Only)
6	End, Door Handle
7	Door Handle, Center (For Platinum Model Only)
7	Handle, Center
8	Screw, 8-15 x 1-5/8
9	WP939101 Whirlpool Refrigerator Plate
10	End Cover, Door Handle (2)
10	End Cover, Door Handle (2) (For Platinum Model Only)
11	Panel, Interior Door
11	Panel, Interior Door (For Platinum
12	Trim, Door Shelf (2)
13	WPL 946998
14	Nameplate
15	Tape Strip
17	W10833053 Whirlpool Refrigerator Plate
18	Bracket, Door Stop
19	Screw (Repair)
19	WP488921 Whirlpool Refrigerator Screw
20	Use & Care Label
21	Trim, Door Shelf
22	Trim, Door Shelf (2)
