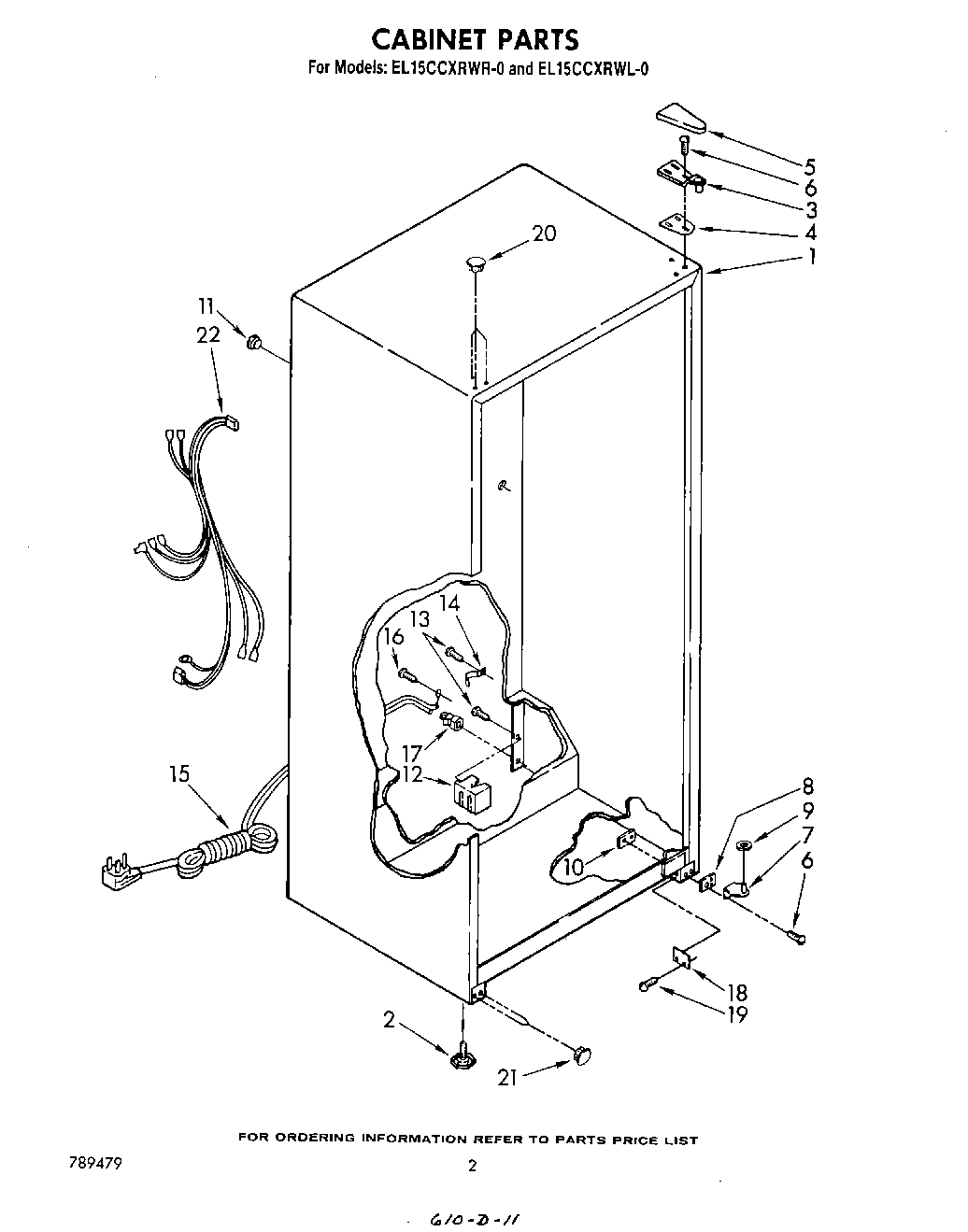

EL15CCXRWR0 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11117769 Whirlpool Refrigerator Leveler
3Hinge, Top
4Shim, Hinge
5Hinge Cover (Toast)
51119787 Whirlpool Refrigerator Hinge Cover
5Hinge Cover (Golden Harvest)
6WP999367 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hinge, Bottom L.H.
7Hinge, Bottom R.H.
8Shim, Bottom Hinge
8Shim (Repair)
9WP487576 Whirlpool Washer
10Tap Plate, Bottom
11Grommet, Wiring
12Box, Junction
13W11624204 Whirlpool Screw
14Clamp
15Cord, Service
16Screw, 8-32 x 3/8
17Bushing, Strain Relief
18Tube, Rail Cover (Platinum)
18Tube, Rail Cover (Almond)
18Tube, Rail Cover (Golden Harvest)
18Tube, Rail Cover (White)
18Tube, Rail Cover (Toast)
19Screw
20Hole Plug (3) (Toast)
20Hole Plug (2) (Golden Harvest)
20Hole Plug (2) (Almond)
20Hole Plug (3) (Platinum)
20Hole Plug (2) (White)
21Hole Plug (2) (Platinum)
21Hole Plug (2)
21Hole Plug (2) (Golden Harvest)
21Hole Plug (2) (Almond)
21Hole Plug (2) (Toast)
22Cabinet Wiring Assembly
