EL15CCXRWR0 04 – DOOR

EL15CCXRWR0 04 – DOOR

Written by

in

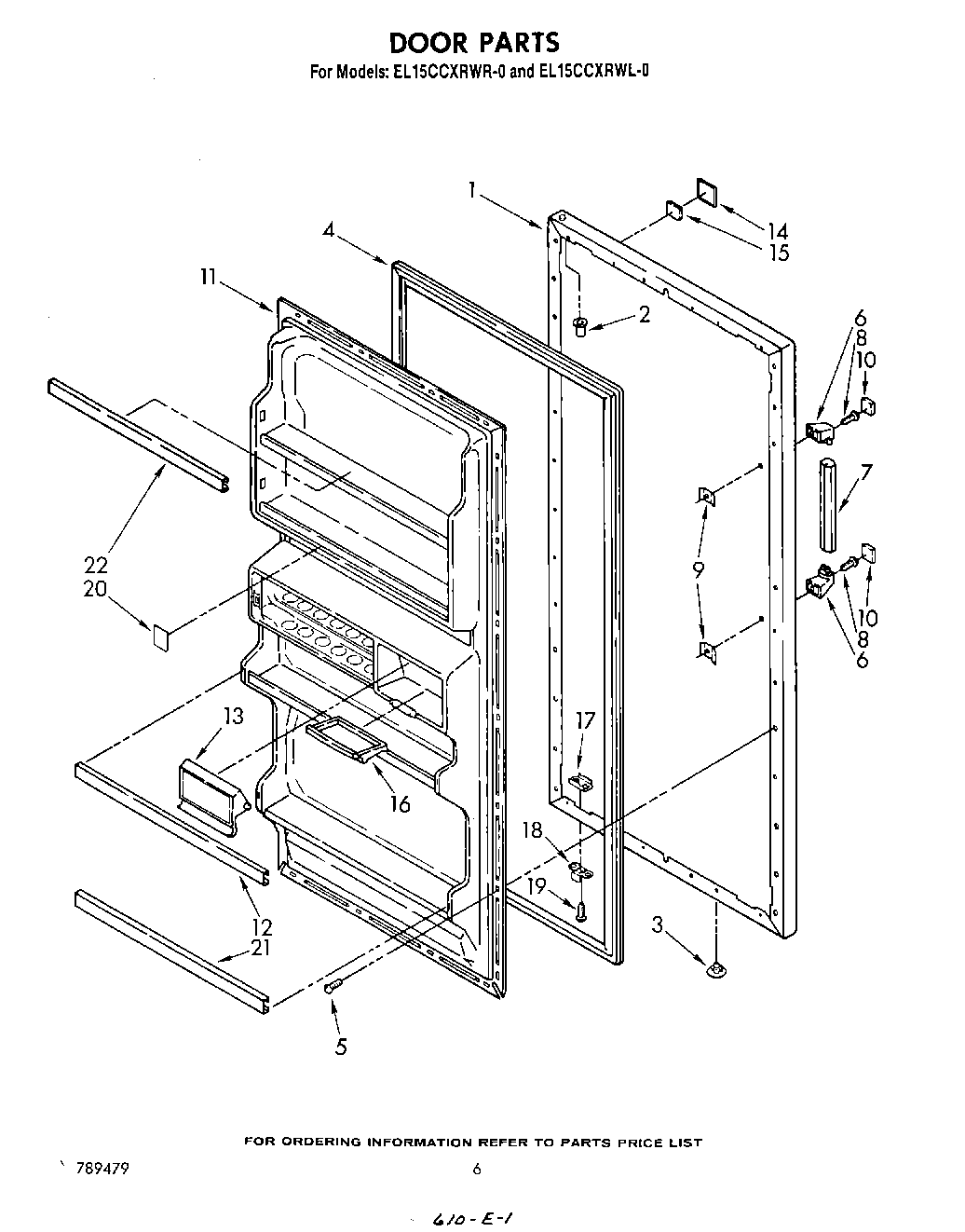

EL15CCXRWR0 04 – DOOR

Products

PositionProduct
1Refrigerator Door Panel R.H. (Golden Harvest)
1Refrigerator Door Panel R.H. (Platinum)
1Refrigerator Door Panel R.H. (Golden Harvest)
1Refrigerator Door Panel R.H. (Platinum)
1Refrigerator Door Panel R.H. (White)
1Refrigerator Door Panel R.H. (White)
1Refrigerator Door Panel R.H. (Toast)
1Refrigerator Door Panel R.H. (Toast)
1Refrigerator Door Panel R.H. (Almond)
1Refrigerator Door Panel R.H. (Almond)
2Cap, Hinge Sleeve (2)
3Hole Plug (2)
42188436A Whirlpool Refrigerator Door Gasket
5WP489069 Whirlpool Compactor Screw
5SCREW
6End, Door Handle
7Door Handle, Center (For Platinum Model Only)
7Door Handle, Center
8Screw, 8-15 x 1-5/8
9WP939101 Whirlpool Refrigerator Plate
10End Cover, Door Handle (2)
11Panel, Interior Door (For Platinum
12Trim, Door Shelf
13Compartment Door, Butter
14Nameplate
15Tape Strip
17W10833053 Whirlpool Refrigerator Plate
18Bracket, Door Stop
19WP488921 Whirlpool Refrigerator Screw
19Screw (Repair)
20Use & Care Label
21Trim, Door Shelf
22Trim, Door (2)
