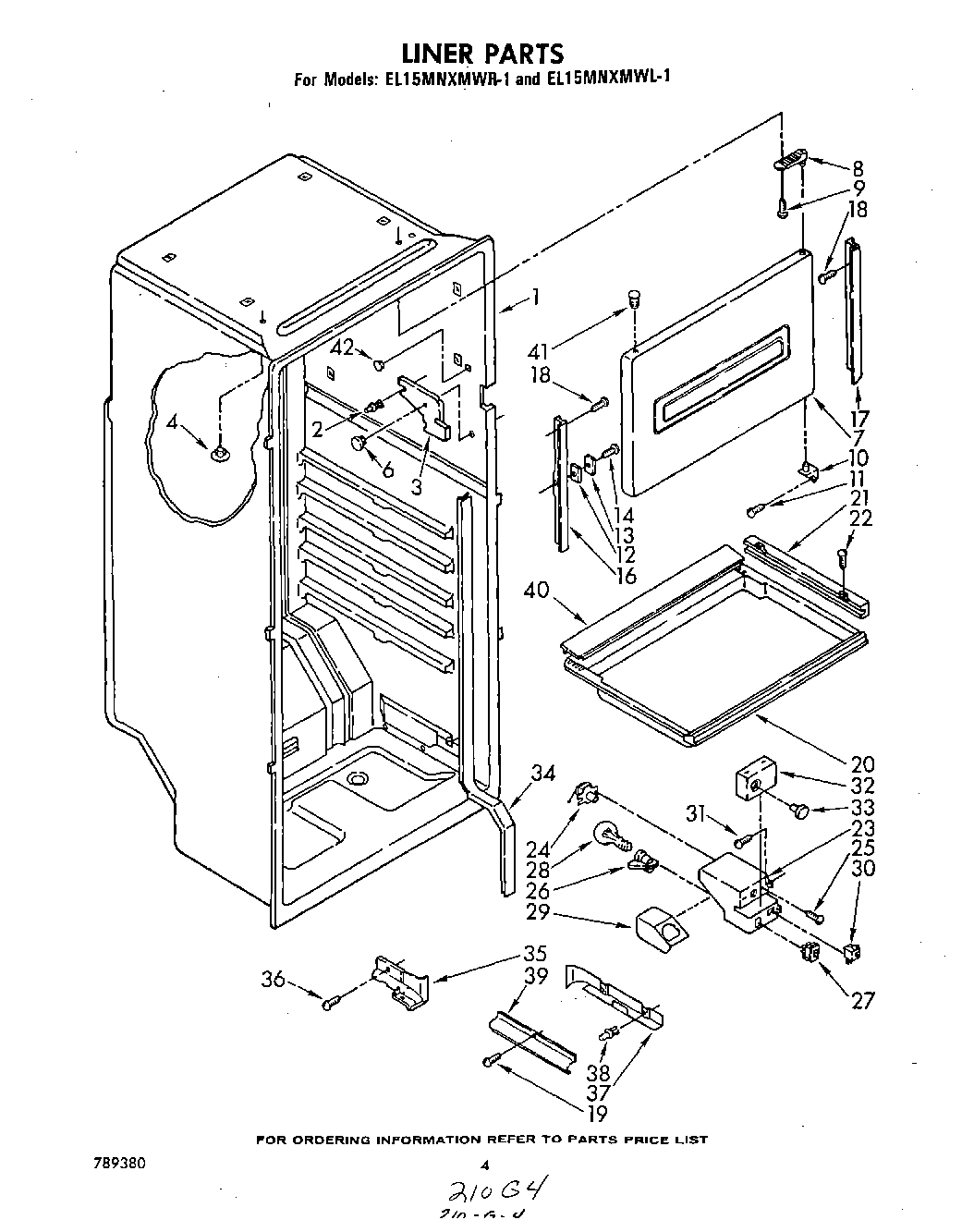

EL15MNXMWR1 03 – LINER , LIT/OPTIONAL

EL15MNXMWR1 03 – LINER , LIT/OPTIONAL

Written by

in

EL15MNXMWR1 03 – LINER , LIT/OPTIONAL

Products

Position	Product
	WPL 677967
	350942 Whirlpool Spray Paint
	WPL LIT789380
	WPL LIT943633
	WPL 677821
	285006 Whirlpool Spray
	paint, spray 13 oz. (coffee)
	WPL 677813
	WPL 677818
	WPL 677971
	Toast
	Golden Harvest
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Shield, Electrical
4	Hole Plug
6	Grommet, Wiring
7	Door, Evaporator
8	Hinge, Evaporator Door
10	Support, Evaporator Door
12	Plate, Magnet (2)
13	Magnet
14	Screw, 8 x 1-9/16
16	Evaporator Door, Baffle Magnet
17	Evaporator Door, Baffle Side
19	Screw, 8-15 x 1/2 (4)
20	Chiller Tray Assembly
21	Chiller Slide (2)
22	WP488163 Whirlpool Refrigerator Screw
23	Box, Control
24	Thermostat & Barrier Assembly
25	WP489128 Whirlpool Refrigerator Screw
26	4387478 Whirlpool Refrigerator Light Socket
27	WP938213 Whirlpool Refrigerator Power Switch
28	W11679940 Whirlpool Refrigerator Light Bulb Assembly
29	Light Shield
30	W11384469 Whirlpool Door Switch
31	WP489069 Whirlpool Compactor Screw
32	Cover, Control Box
33	Knob, Control
34	Cover, Tube (Rear)
35	Cover Tube, Bottom
36	screw (repair)
36	W11693756 Whirlpool Screw Assembly
37	Wire Cover (Rear)
38	Rivet, Plastic (2)
39	Wire Cover (Front)
40	Damper, Chiller
41	Hole Plug (2)
42	WPL 72112
42	Enamal, Toast (1 Qt. Uncut)
42	Golden Harvest (Uncut)
42	Almond (Uncut)
42	WP72107 Whirlpool Touchup
42	799344 Whirlpool Refrigerator Paint
42	Hole Plug
42	72017 Whirlpool Appliance Touch-Up Paint White
42	212643 Whirlpool Refrigerator Permagum Sealer
42	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
42	Paint, Touch-Up 1/2 Oz. (Coffee)
42	72109 Whirlpool Dacor Avocado Touch-Up Paint
42	72032 Whirlpool Touch Up Paint Black
42	WPL 876029
42	WPL 799833
42	Enamel, Black (1 Qt. Uncut)
42	CEMENT, ALUMILASTIC (1 1/4 OZ.)
42	Enamel, Coffee (1 Qt. Uncut)
42	TAPE, VINYL (3/4 X 108“)
42	Enamel, New Avocado (1 Qt. Uncut)
42	WP542638 Whirlpool Refrigerator Grease
42	WP505587 Whirlpool Refrigerator Sealer
42	WP503695 Whirlpool Refrigerator Sealer
42	876370 Whirlpool Refrigerator Insulation
42	606755 Whirlpool Refrigerator Bag
42	511873 Whirlpool Refrigerator Paint
42	WPL 799351
