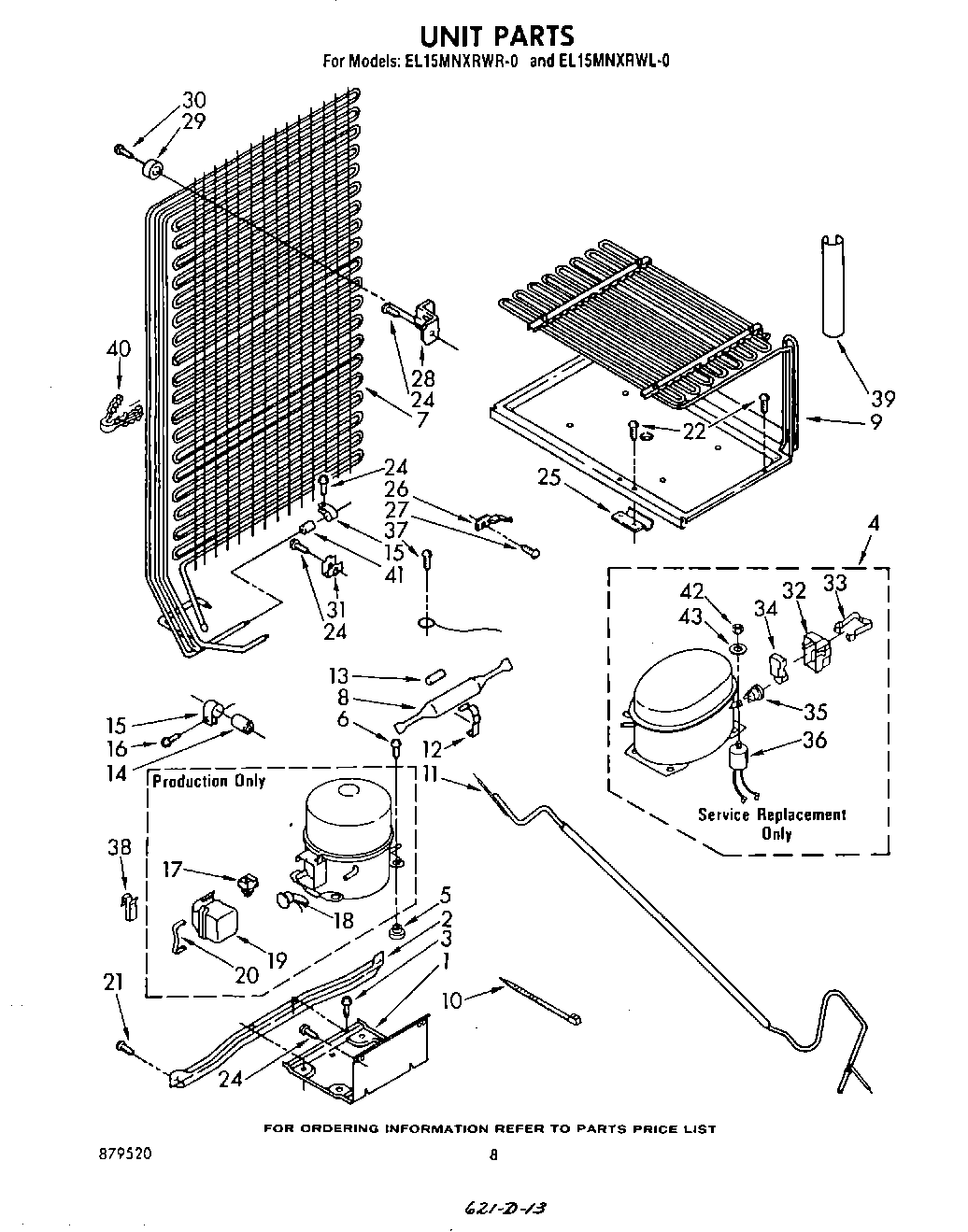

EL15MNXRWR0 05 – UNIT

Products

Position	Product
1	Unit Mounting Plate
2	Unit Mounting Rail
3	WP965173 Whirlpool Dishwasher Screw
4	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
5	876811 Whirlpool Grommet
7	Condenser & Precooler Assembly (Formed)
8	W10843121 Whirlpool Refrigerator Tube
9	Evaporator Assembly
10	Strap
11	Heat Exchanger
12	Drier Clamp
13	Restrictor Sleeve
14	Dampener
15	Clamp Tube
16	WPW10141625 Whirlpool Refrigerator Screw Assembly
17	Relay
18	Overload
19	Terminal Cover
21	489340 Whirlpool Refrigerator Screw
22	Screw, 8-15 x 1/2 (4)
22	Screw (Repair)
24	WP489069 Whirlpool Compactor Screw
25	Clamp, Capillary Tube
26	Hold Down Heat Exchanger
27	W11624204 Whirlpool Screw
28	Condenser Bracket (Top)
29	Bumper, Rubber
30	Screw, 8 x 7/8
31	4386951 Whirlpool Refrigerator Clip
32	Cover, Terminal
33	Strap
34	Relay
35	Overload
36	Capacitor
37	303776 Whirlpool Dishwasher Screw
38	W10812038 Whirlpool Refrigerator Clip
39	Cover, Connecting Lines
40	Clip, Tube
41	Dampener
42	Nut
43	WP978025 Whirlpool Refrigerator Valve
43	876764 Whirlpool Refrigerator Primary Valve
43	Washer
43	VALVE, ACCESS (5/8“)
43	978026 Whirlpool Refrigerator Primary Valve
43	978027 Whirlpool Refrigerator Primary Valve
43	978030 Whirlpool Refrigerator Valve
43	VALVE, ACCESS (1/2“)
