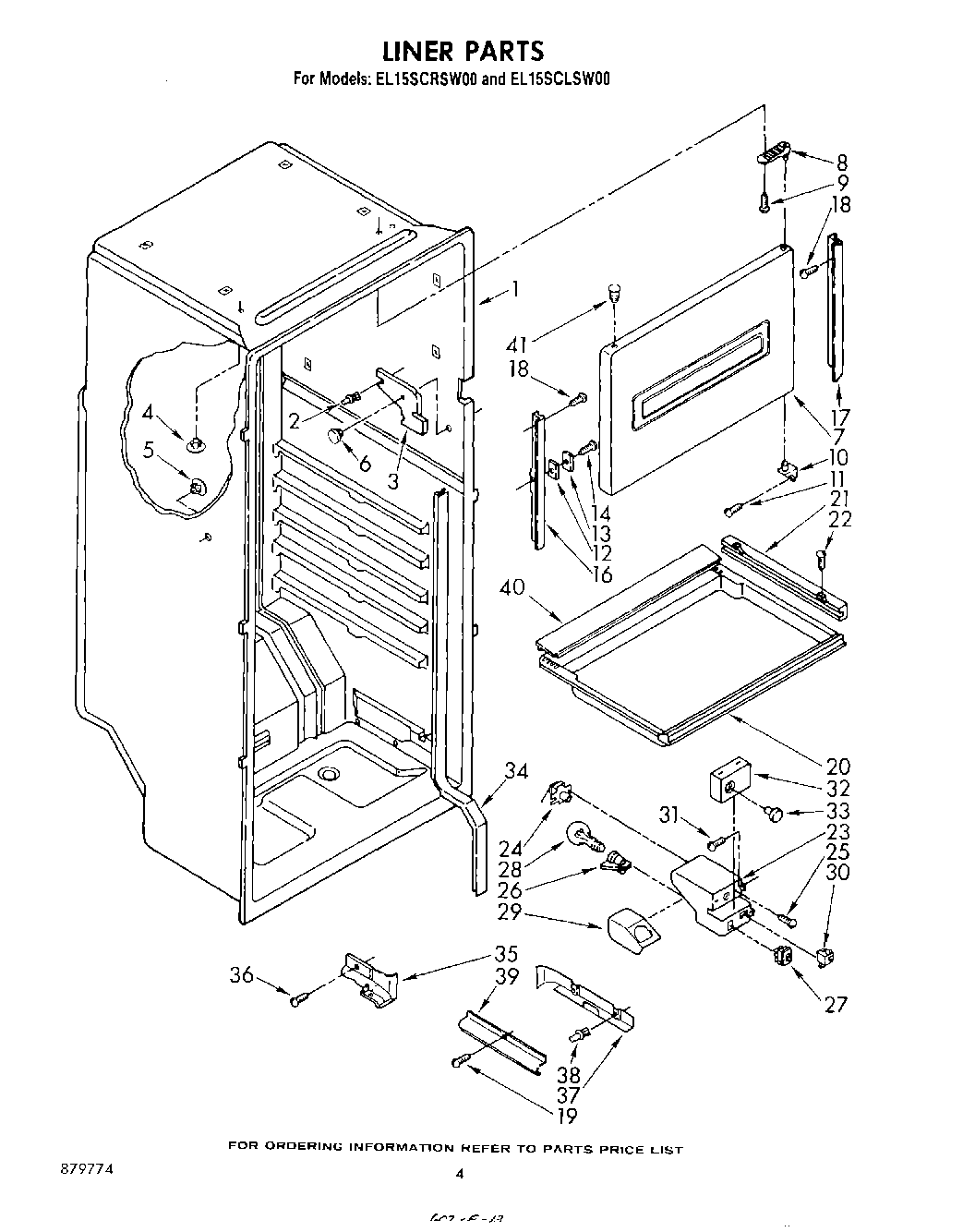

EL15SCLSW00 03 – LINER , LIT/OPTIONAL

EL15SCLSW00 03 – LINER , LIT/OPTIONAL

Written by

in

EL15SCLSW00 03 – LINER , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest
	Paint, Spray (13 Oz.) (Platinum)
	WPL LIT943633
	WPL LIT1100411
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Leveler (Thinner)
	WPL LIT1114009
	WPL LIT1116305
	WPL LIT879774
	350956 Whirlpool Spray Assembly
	Toast
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Shield, Electrical
4	Hole Plug
5	Hole Plug
6	Grommet, Wiring
7	Door, Evaporator
8	Hinge, Evaporator Door
10	Support, Evaporator Door
12	Plate, Magnet (2)
13	Magnet
14	Screw, 8 x 1-9/16
16	Evaporator Door, Baffle Magnet
17	Evaporator Door, Baffle Side
19	Screw, 8-15 x 1/2 (4)
20	Chiller Tray Assembly
21	Chiller Slide (2)
22	WP488163 Whirlpool Refrigerator Screw
23	Box, Control
24	Thermostat & Barrier Assembly
25	WP489128 Whirlpool Refrigerator Screw
26	4387478 Whirlpool Refrigerator Light Socket
27	WP938213 Whirlpool Refrigerator Power Switch
28	W11679940 Whirlpool Refrigerator Light Bulb Assembly
29	Light Shield
30	W11384469 Whirlpool Door Switch
31	WP489069 Whirlpool Compactor Screw
32	Cover, Control Box
33	Knob, Control
34	Cover, Tube (Rear)
35	Cover Tube, Bottom
36	screw (repair)
36	W11693756 Whirlpool Screw Assembly
37	Wire Cover (Rear)
38	Rivet, Plastic (2)
39	Wire Cover (Front)
40	Damper, Chiller
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	WPL 799833
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	212643 Whirlpool Refrigerator Permagum Sealer
41	72017 Whirlpool Appliance Touch-Up Paint White
41	Almond (Uncut)
41	72113 Whirlpool Touch-Up Paint
41	WP542638 Whirlpool Refrigerator Grease
41	TAPE, VINYL (3/4 X 108“)
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	Enamel, Black (1 Qt. Uncut)
41	WPL 876029
41	876370 Whirlpool Refrigerator Insulation
41	72032 Whirlpool Touch Up Paint Black
41	606755 Whirlpool Refrigerator Bag
41	511873 Whirlpool Refrigerator Paint
41	WPL 945958
41	Hole Plug (2)
41	WP505587 Whirlpool Refrigerator Sealer
41	WPL 72112
41	Platinum (Uncut)
41	Enamal, Toast (1 Qt. Uncut)
41	Golden Harvest (Uncut)
41	WP503695 Whirlpool Refrigerator Sealer
