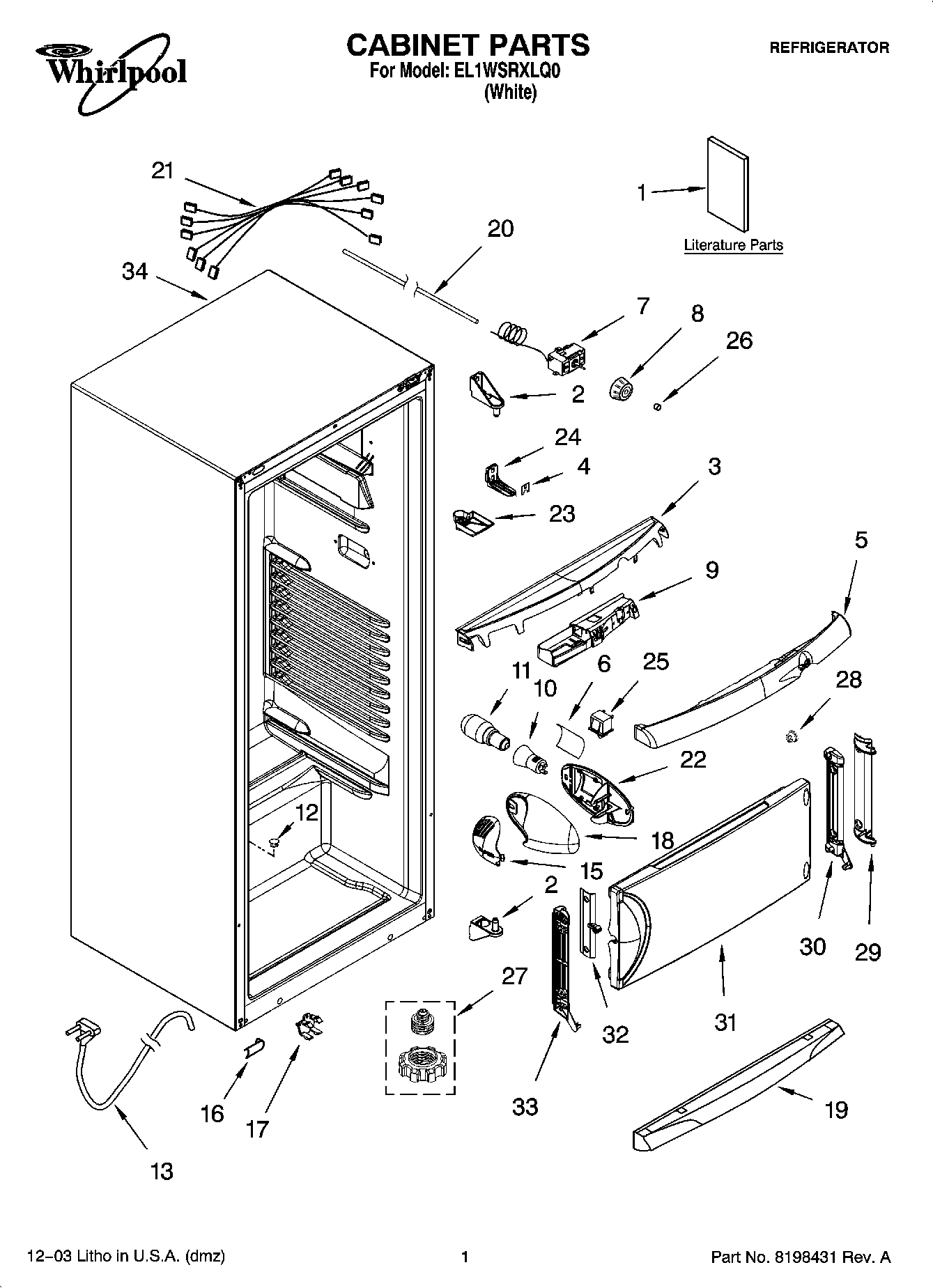

EL1WSRXLQ0 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Owners Manual)
2	Hinge
3	Trim, Top Rear
4	Shim, Hinge
5	Top, Trim Front
6	Deflector Light
7	Thermostat
8	Knob, Thermostat
9	Control Box
10	Socket, Light
11	Bulb, Light
12	Valve, Vacuum Break
13	Power Cord
15	Protector, Lamp
16	Filler, Wrapper
17	Clip, Grille
18	Shield, Light
19	Grille
20	Insulation, Tube
21	Harness, Wiring Upper
22	Light, Housing
23	Drain, Water
24	Support, Hinge
25	Switch
26	Knob, Defrost
27	Kit, Leg Leveler
28	Bushing
29	Hinge, Frame
30	Hinge
31	Door, Freezer
32	Latch
33	Latch, Frame
34	Cabinet (Not A Serviceable Part)
