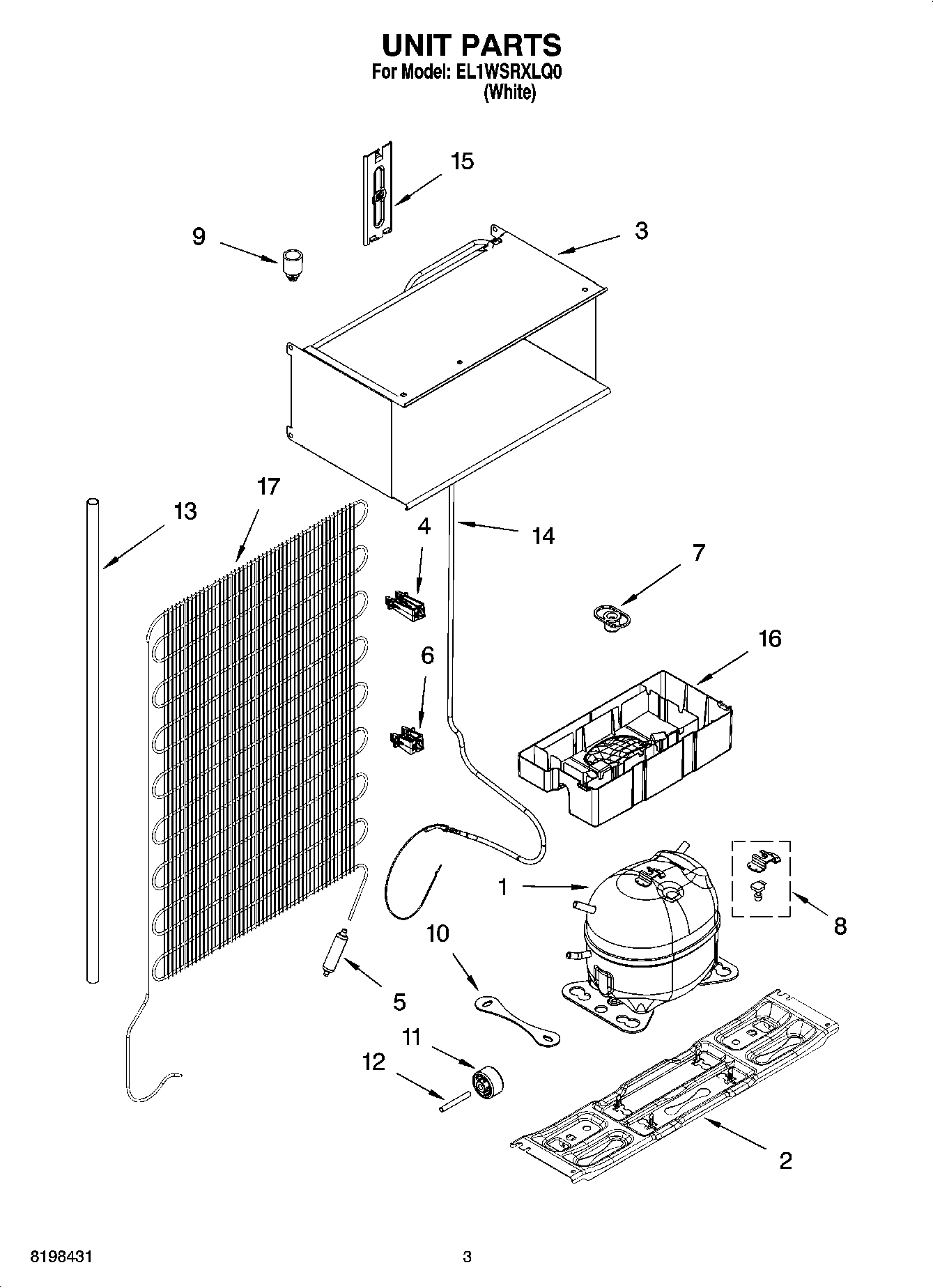

EL1WSRXLQ0 02 – UNIT PARTS

Products

Position	Product
1	Compressor
2	Base, Compressor
3	Evaporator
4	Support, Condenser Upper
5	W10843121 Whirlpool Refrigerator Tube
6	Support, Condenser Lower
7	Valve, Drain
8	Overload (Includes Relay)
9	Pin, Defrost
10	Strap, Compressor
11	Roller
12	Shaft, Roller
13	Gasket
14	Suction, Tube
15	Clamp, Thermostat
16	Tray, Evaporator
17	Condenser Line 3.17 oz. (R-134)
