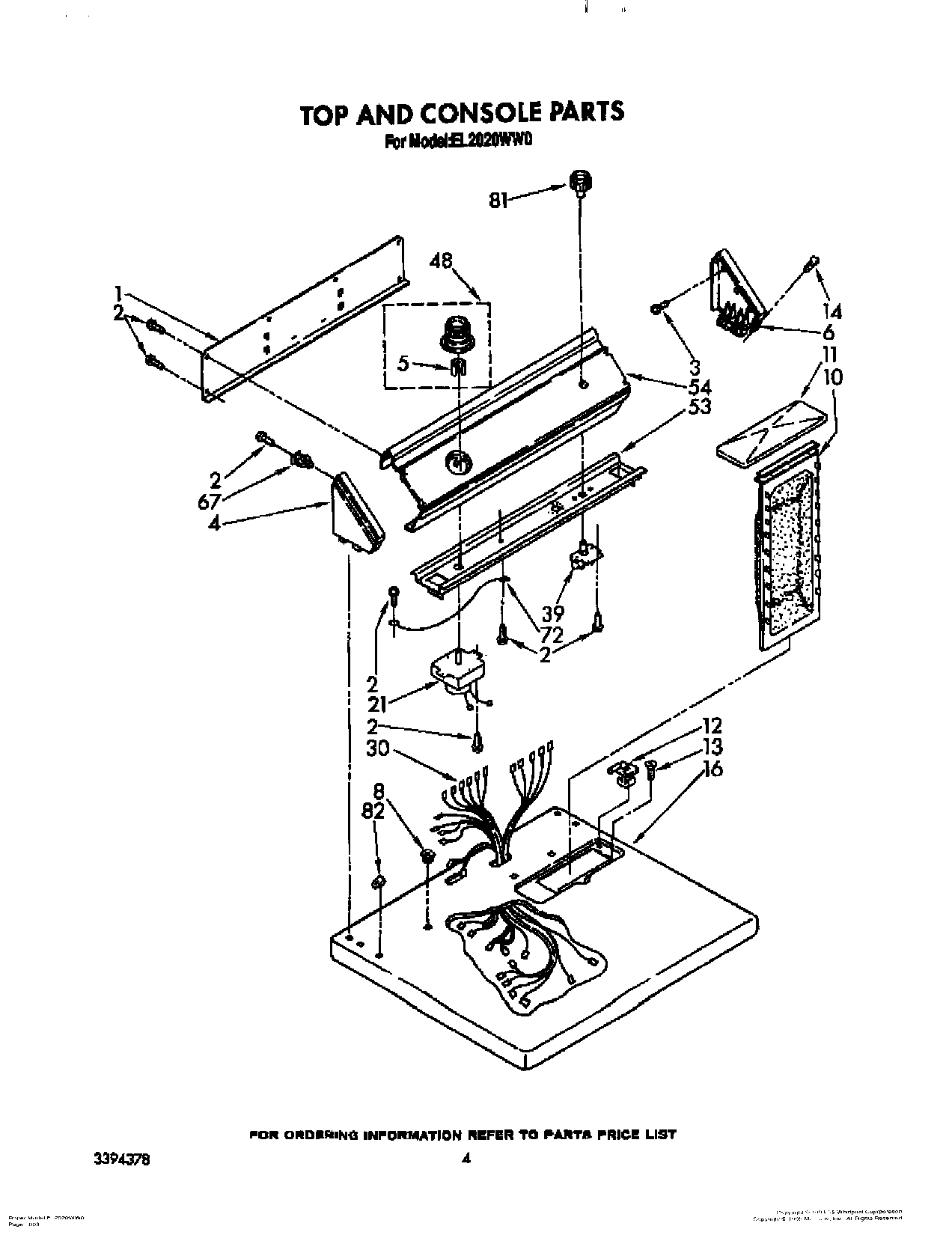

EL2020WW0 03 – TOP AND CONTROL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677967
	Washer (Belt Drive)
	Instructions, Installation
	Dryer
	Guide, Use & Care
	Guide, Dryer
	Leveler (Thinner)
	List, Parts
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WPL 63796
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
21	Timer Assembly, 60 Hz.
30	Harness
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push-To-Start
82	Nut, Push-In (2)
