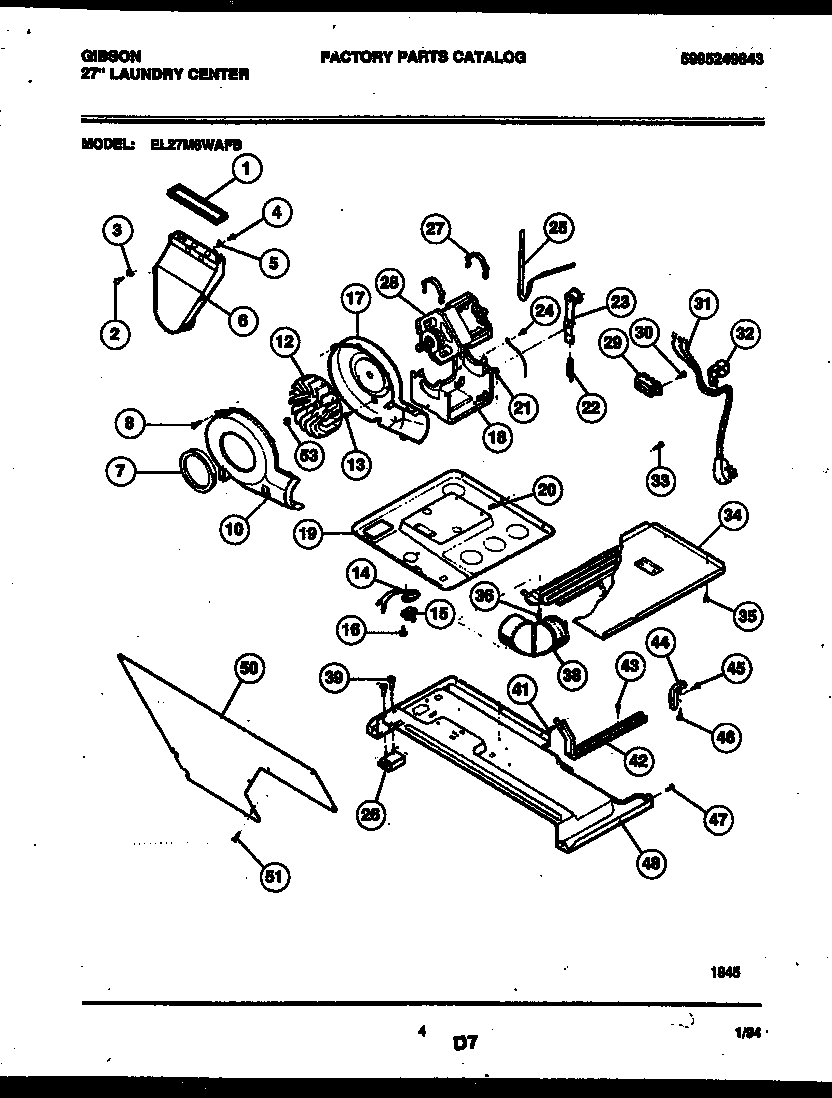

EL27M6WAFB 03 – BLOWER, IDLER ARM AND MOTOR PARTS

EL27M6WAFB 03 – BLOWER, IDLER ARM AND MOTOR PARTS

Written by

in

EL27M6WAFB 03 – BLOWER, IDLER ARM AND MOTOR PARTS

Products

PositionProduct
*68088131453000 Frigidaire Bushing
1WCI 131151200
45303300265 Frigidaire Oven Screw
5CLIP (8)
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 5303206879
153204307 Frigidaire Dryer Thermostat Control, L135
16134178901 Frigidaire Screw
17WCI 5303271179
19WCI 3204311
20131168200 Frigidaire Dryer Screw
21WCI 3281077
223205241 Frigidaire Idler Spring
23IDLER ARM
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 5303212834
28WCI 5303283288
29134037400 Frigidaire Block
30WCI 5308015309
31WCI 5303212832
32WCI 3204317
33134154100 Frigidaire Screw 10-32 x 0.375 Co
34WCI 3204319
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
45WCI 08011280
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
51131302800 Frigidaire Drum Vane Screw
535304488479 Frigidaire Washer Hose Clamp
