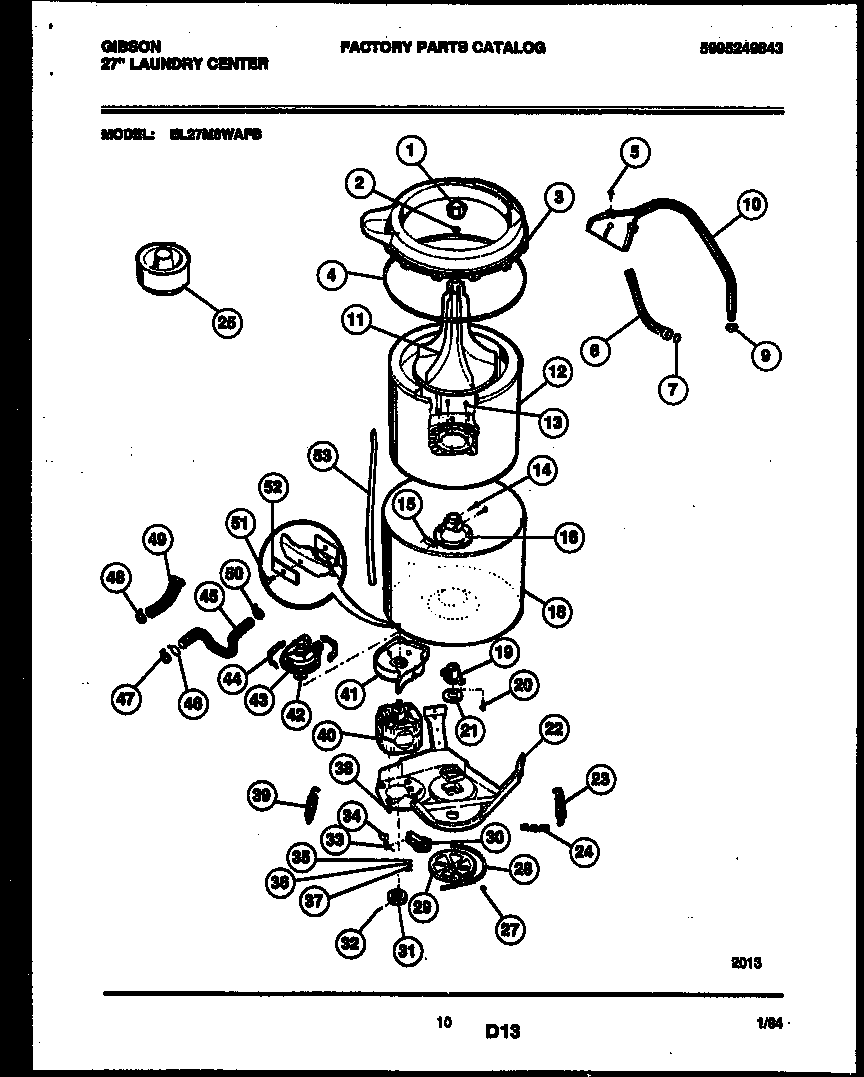

EL27M6WAFB 06 – TUB DETAIL

EL27M6WAFB 06 – TUB DETAIL

Written by

in

EL27M6WAFB 06 – TUB DETAIL

Products

PositionProduct
*68122INSERT-SPRING ADJ
*68122218515401 Frigidaire Refrigerator Clip
13204395 Frigidaire Agitator Cap
2WCI 3204396
3131398303 Frigidaire Tub Ring
4131901400 Frigidaire Seal
5131205100 Frigidaire Screw
65303912532 Frigidaire Hose Inlet 60"
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
9WCI 5303012110
10NOZZLE & HOSE ASSY
11WCI 3204401
12WCI 5303284814
13137546400 Frigidaire Screw 5/165-18 X .625
14137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15137107000 Frigidaire Plate
16131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
18SPLASH TUB & BEARING
193204405 Frigidaire Outer Tub Spin Bearing
203205150 Frigidaire Tub Bearing Screw
215308002401 Frigidaire Washer Primary
22LEG & DOME
23134886600 Frigidaire Spring Primary
24SPRING-HORIZONTAL (3)
25DISPENSER
275303270023 Frigidaire Screw Set
28WASHER BELT
29WCI 3204420
30WCI 3204422
31WCI 3204423
32WCI 3204424
33TORSION SPRING
34WCI 3204426
353161433 Frigidaire Retainer
36WASHER
37SPRING WASHER
38WCI 5308001875
39134885900 Frigidaire Spring
40WCI 3204449
41WCI 3204450
42WCI 3204451
43WCI 3204452
44WCI 3204453
45WCI 3204454
46CLIP-HOSE TO LEG
48131306234 Frigidaire Clamp Pump
495303931759 Frigidaire Pump to Tub Hose
50CLAMP
51WCI 3204459
52WCI 3204460
535304401845 Frigidaire Tube Pressure
