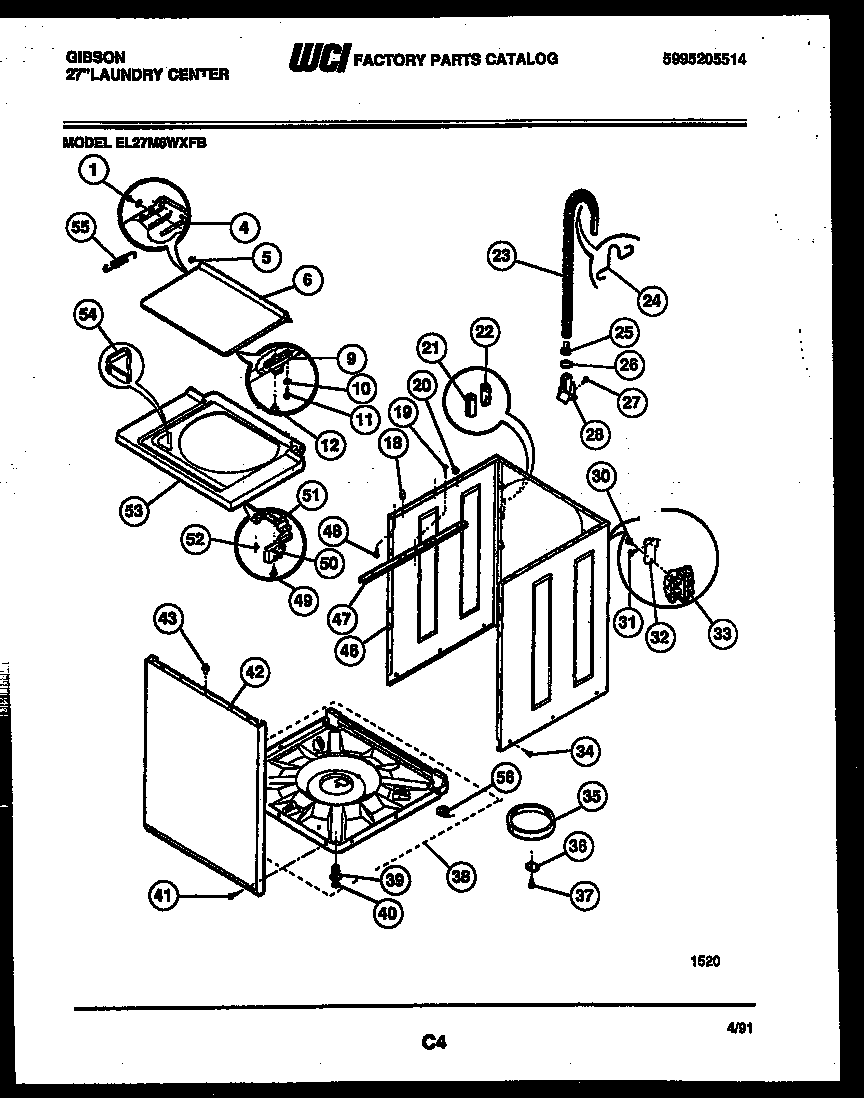

EL27M6WXFB 05 – CABINET PARTS
Written by
in
EL27M6WXFB 05 – CABINET PARTS
Products
Position
Product
1
SCREW
4
5304489657 Frigidaire Bar Hinge Kit
5
5303208743 Frigidaire Grommet
6
WCI 5303212873
6
5303212872 Frigidaire Lid
9
131390000 Frigidaire Door Catch-Strike
10
WCI 5308002408
11
3204368 Frigidaire Screw-Strike
12
134075500 Frigidaire Bumper-LID
19
WCI 5308057419
20
3204374 Frigidaire Pin
21
WCI 5308014903
22
WCI 5303161252
23
WCI 3205414
24
RETAINER
25
3204375 Frigidaire Check Valve
26
WCI 5364154013
27
131205100 Frigidaire Screw
28
WCI 3204376
30
WCI 5303010202
31
5303015671 Frigidaire Bracket Termination Screw
32
WCI 3204378
33
134190200 Frigidaire Washer Water Valve
34
131205500 Frigidaire Screw
35
SNUBBER RING
36
SHIPPING BLOCK
37
SHIPPING SCREW
38
WCI 3204382
39
LEVELING LEG & PAD
40
WCI 3204383
41
WCI 3205460
42
WCI 5303209676
42
WCI 5303209677
43
PIN – LOCATING
46
WCI 3204387
46
WCI 3204388
47
BRACKET (2)
48
SCREW
49
SCREW
50
WCI 3205646
51
WCI 3204391
52
RIVET (3)
53
PANEL TOP-WHITE
53
WCI 5303212875
54
WCI 3204394
55
134890500 Frigidaire Spring
56
WCI 5303201463
←
