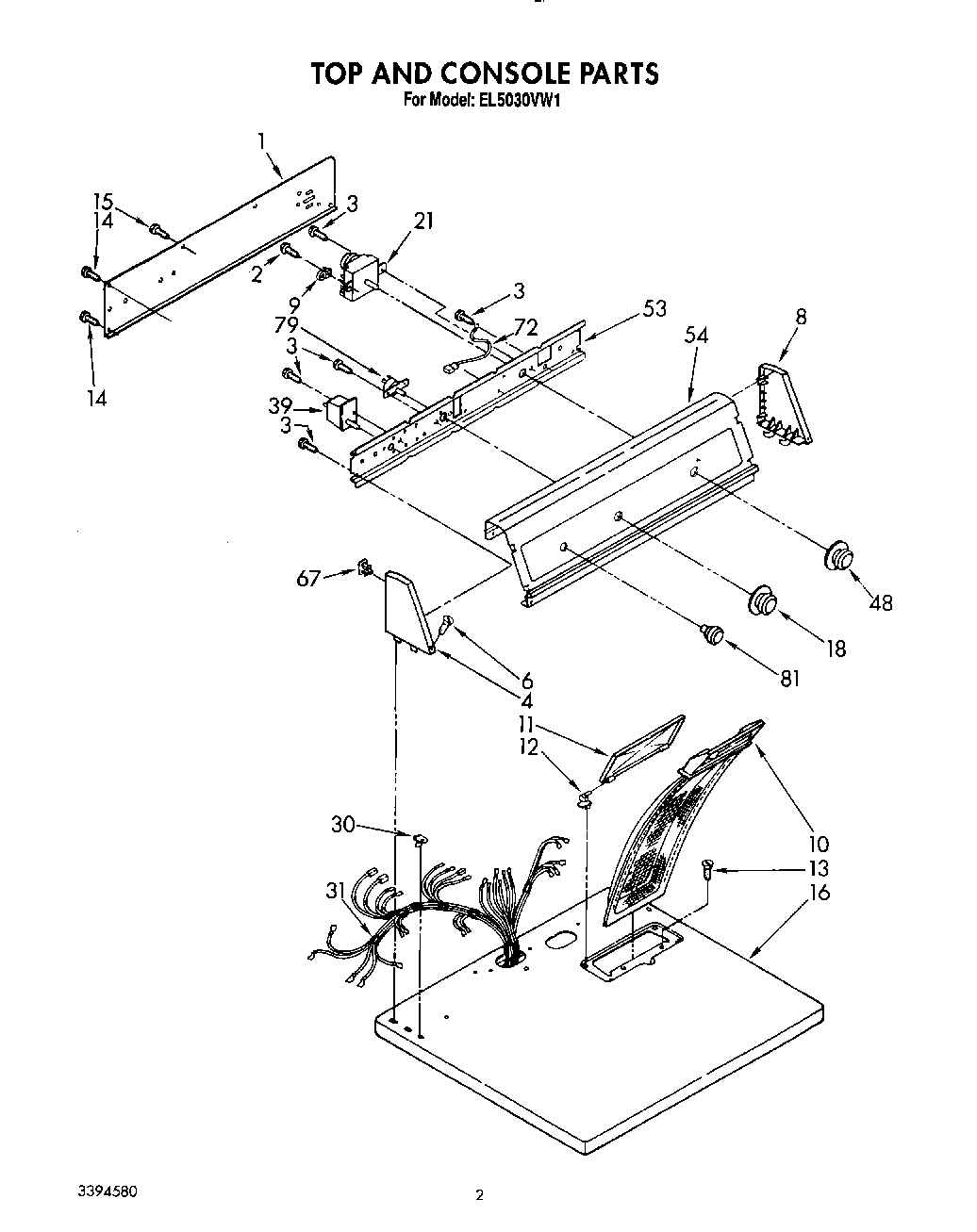

EL5030VW1 02 – SECTION

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	List, Service Parts
	Almond (Uncut)
	Leveler (Thinner)
	Use & Care Guide
	WP72107 Whirlpool Touchup
	Instructions, Installation
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear
2	SCREW
3	WP3390631 Whirlpool Screw
4	Cap, End (L.H.)
6	WPL 64211
8	Cap, End (R.H.)
9	279872 Whirlpool Resistor
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (White)
16	Top (Almond)
18	Knob, Temperature Selector
21	Timer Assembly, 60 Hz.
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push-To-Start
