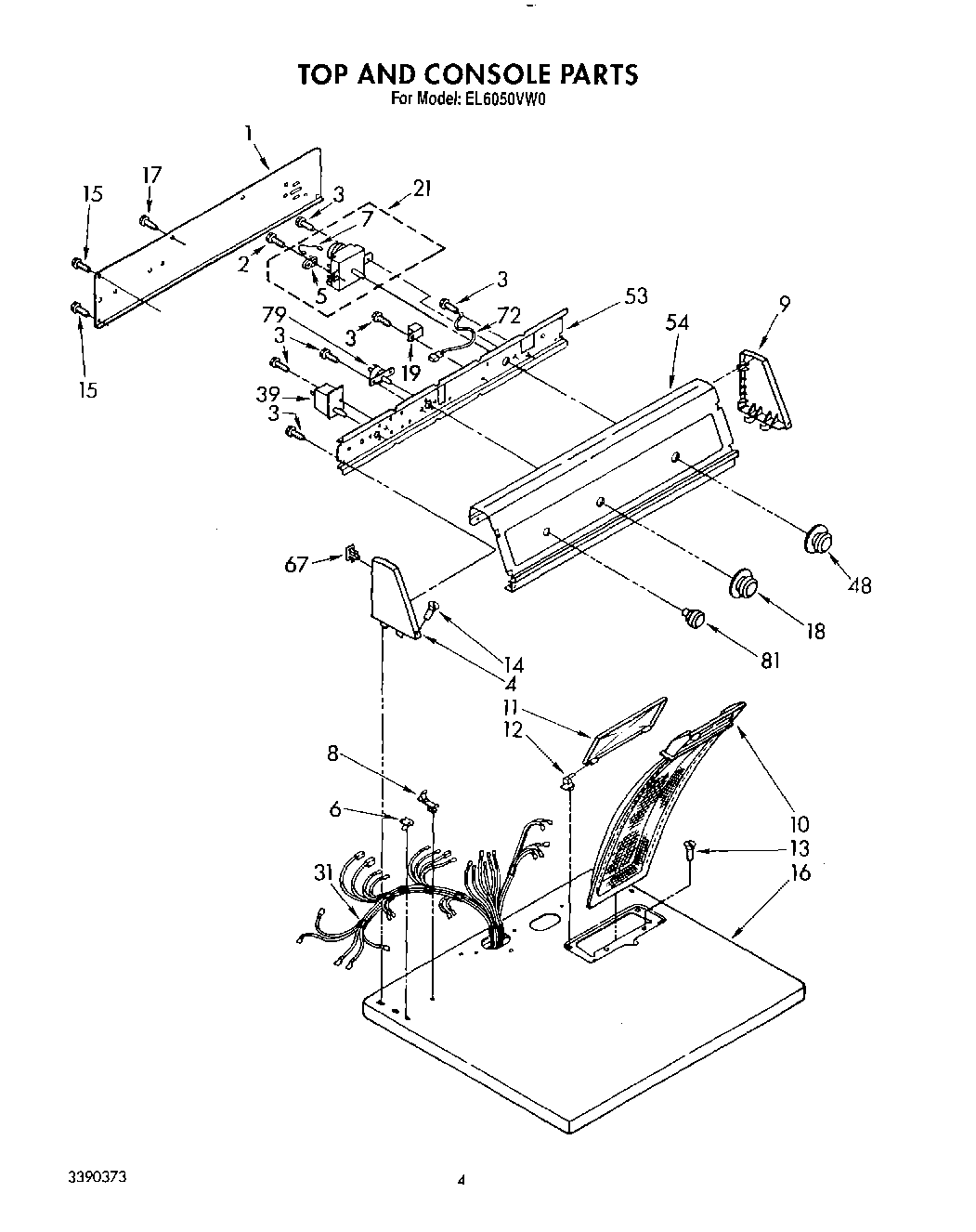

EL6050VW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	WPL 72112
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Platinum (Uncut)
	72113 Whirlpool Touch-Up Paint
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	WPL LIT3391353
	WPL LIT3390373
1	Panel, Rear
3	WP3390631 Whirlpool Screw
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	Nut, Push-In (2)
7	Wire, Jumper
8	Stop, Push-In Top
9	Cap, End (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
15	WP489069 Whirlpool Compactor Screw
16	Top (White)
16	Top (Almond)
17	WP693995 Whirlpool Screw
18	Knob, Temperature Selector
21	Timer & Resistor Assembly, 60 Hz.
29	SCREW
31	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Temperature (Variable)
81	Knob, Push-To-Start
