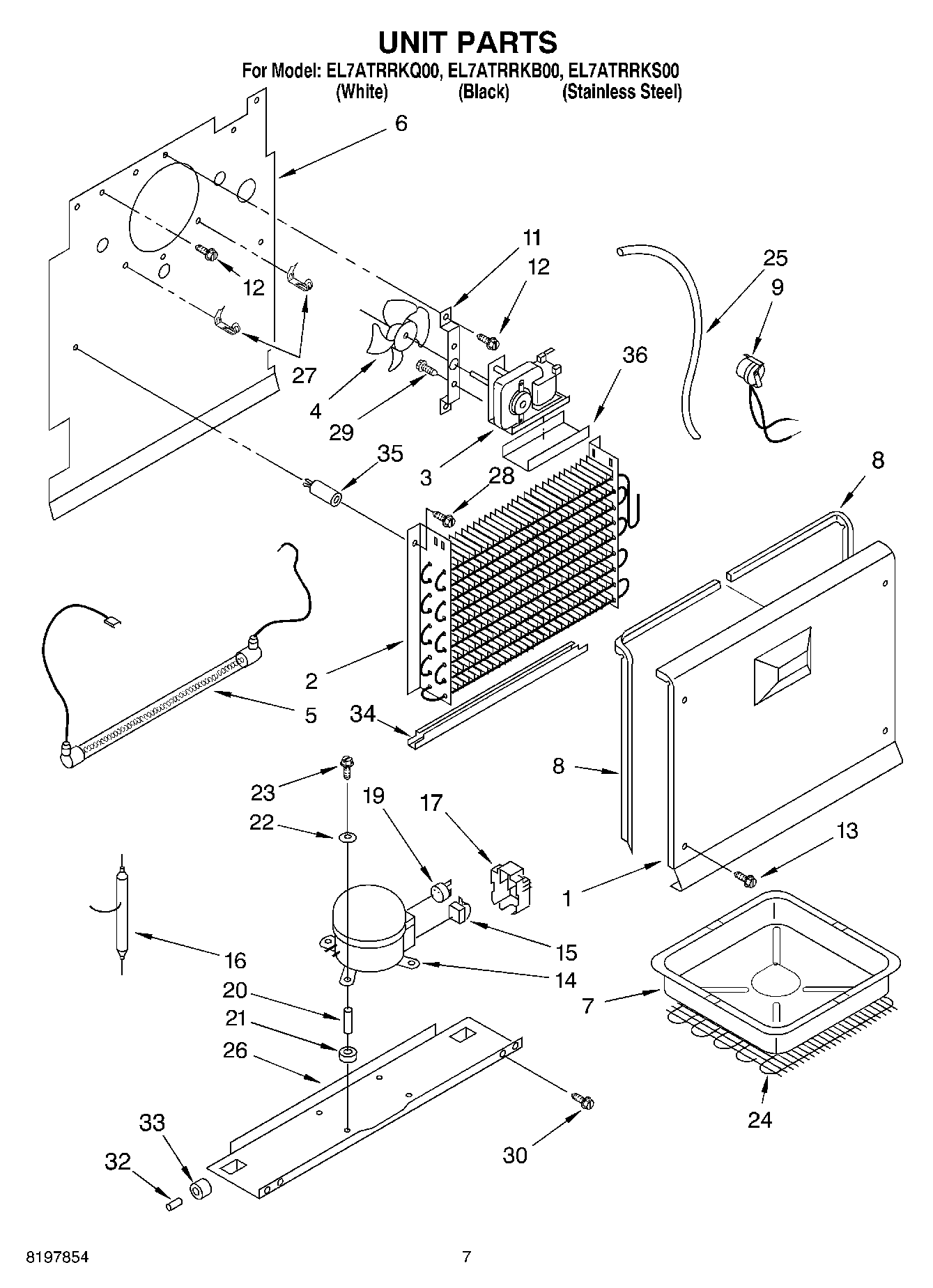

EL7ATRRKQ00 04 – UNIT, OPTIONAL

Products

Position	Product
1	Cover, Evaporator
2	Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	WP4390675 Whirlpool Refrigerator Drip Pan
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Compressor (Includes Items 2, 3, 4, 5, 8 & 9)
15	4356716 Whirlpool Refrigerator Start Relay
16	W10843121 Whirlpool Refrigerator Tube
17	WP2162358 Whirlpool Refrigerator Terminal Cover
19	2264602 Whirlpool Refrigerator Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	Screw, Compressor Mounting
24	Condenser
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Compressor Pan (White)
27	Thermostat, Clip
28	Screw
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
32	3-60315-001 Whirlpool Refrigerator CAB Roller
33	Axle
34	Shield, Heater
35	Grommet
36	WP505587 Whirlpool Refrigerator Sealer
36	72017 Whirlpool Appliance Touch-Up Paint White
36	799344 Whirlpool Refrigerator Paint
36	350930 Whirlpool White Spray Paint
36	212643 Whirlpool Refrigerator Permagum Sealer
36	4357128 Whirlpool Refrigerator Motor Bracket
36	TAPE, VINYL (3/4 X 108“)
36	WP503695 Whirlpool Refrigerator Sealer
36	876370 Whirlpool Refrigerator Insulation
