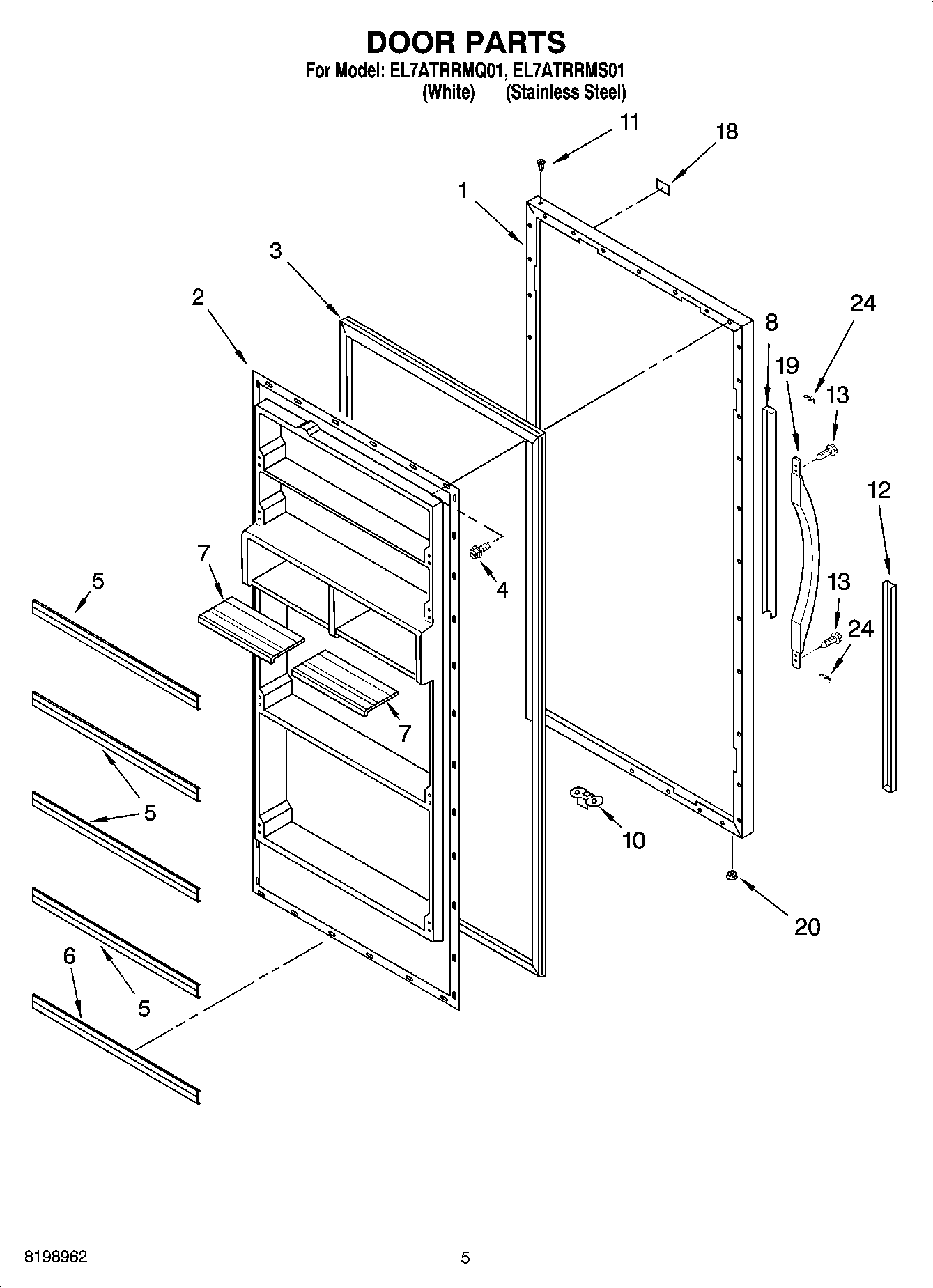

EL7ATRRMQ01 03 – DOOR PARTS

EL7ATRRMQ01 03 – DOOR PARTS

Written by

in

EL7ATRRMQ01 03 – DOOR PARTS

Products

PositionProduct
1Exterior Door (Includes Insulation) (White)
1Exterior Door (Includes Insulation) (Stainless Steel)
2Interior Panel
3WP4-81048-007 Whirlpool Refrigerator Door Gasket
3WP4357142 Whirlpool Refrigerator Door Gasket
44390598 Whirlpool Refrigerator Screw
5Trim Shelf Upper
6Trim Shelf, Lower
7Door, Compartment (Long)
7Door, Compartment (Short)
8Trim, Top (White)
8Trim, Top (Black)
10Door Stop
114390731 Whirlpool Refrigerator Hinge Bushing
12Trim, Bottom (White)
12Trim, Bottom (Black)
13WP489491 Whirlpool Refrigerator Screw
18Nameplate (White)
18WP2213265 Whirlpool Refrigerator Nameplate
193-82596-002 Whirlpool Refrigerator Handle
19Handle Kit (Black)
203-24898-007 Whirlpool Refrigerator Vent Plug
24Clip, Handle
