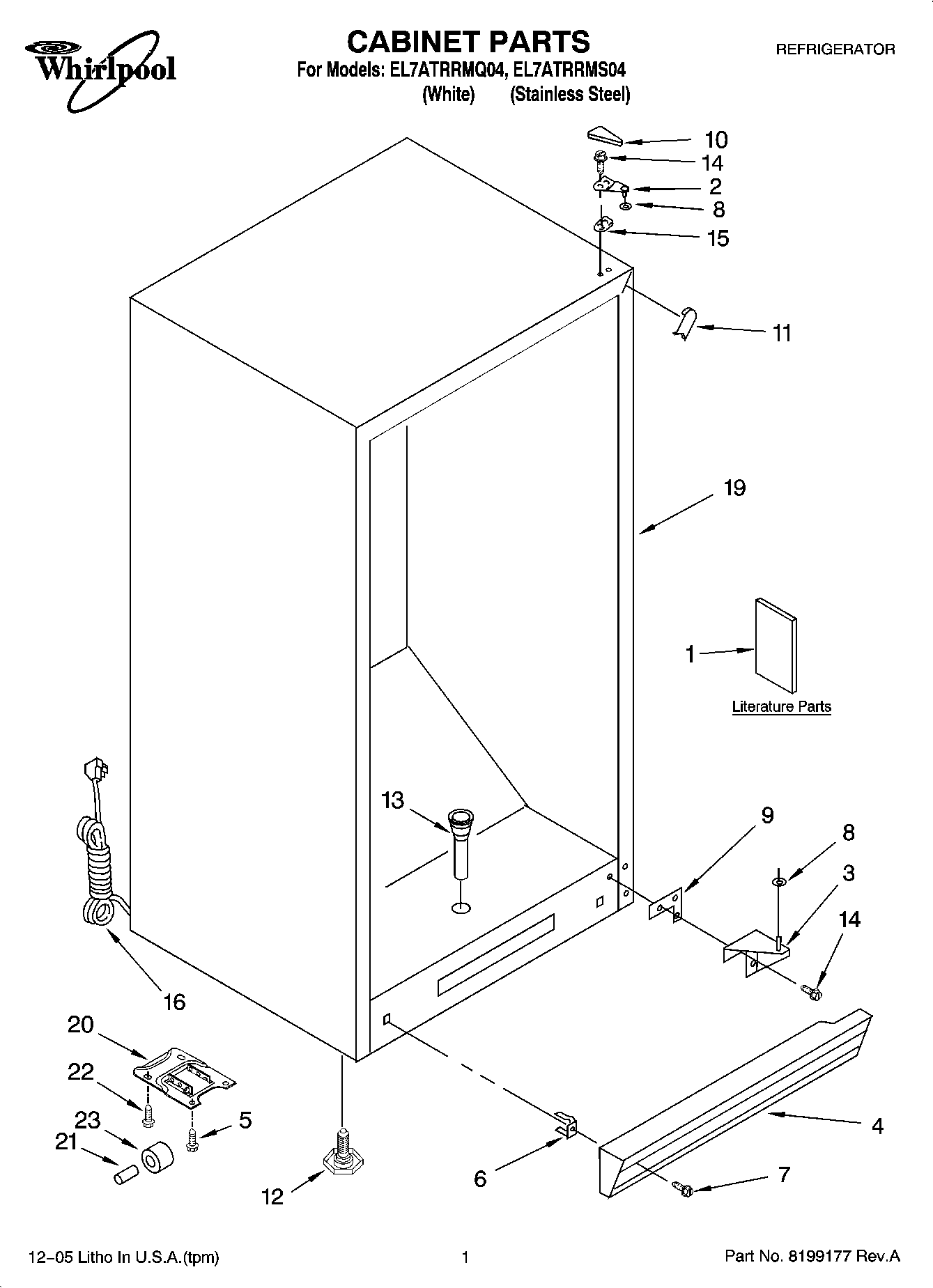

EL7ATRRMQ04 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Guide
2	Top Hinge (Black)
2	Top, Hinge (White)
3	8210238 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (Black)
4	WP4-60461-005 Whirlpool Refrigerator Grille
4	Grille (Includes 6 & 7) (Black)
5	WP3-24838-048 Whirlpool Refrigerator Screw
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
10	3-80838-003 Whirlpool Refrigerator Cover
10	Hinge Cover (Black)
11	8210227 Whirlpool Refrigerator Filler
11	Filler, Corner (Black)
12	W11117769 Whirlpool Refrigerator Leveler
13	Drain Hose
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Power Cord
19	Cabinet (Not A Serviceable Part)
20	Bracket, Roller
21	Axle
22	SCREW
23	Roller, Front
