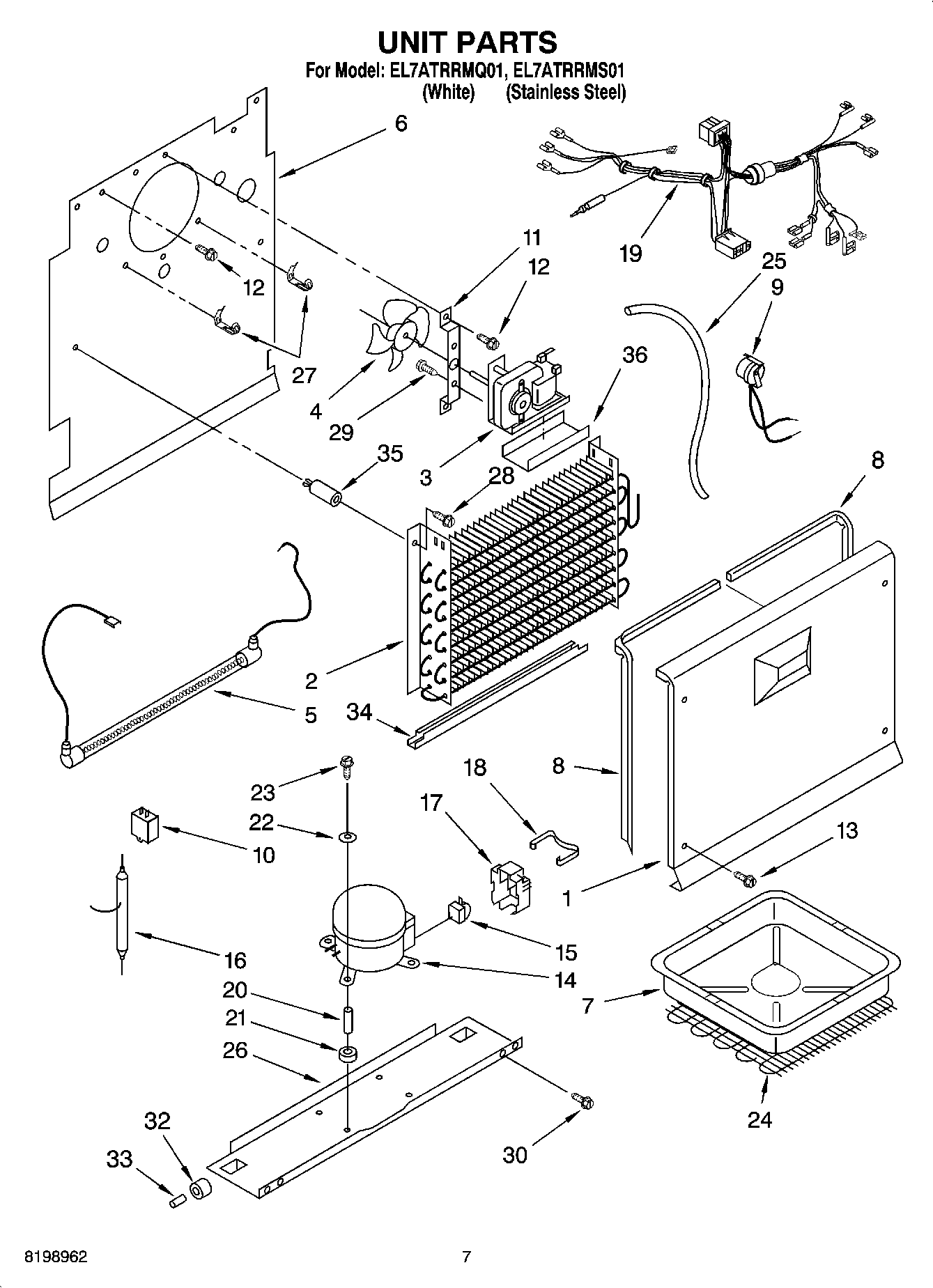

EL7ATRRMS01 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Parts Not Illustrated and Optional Parts (Not Included)
	Customer Touch-Up Material
	Miscellaneous
	TAPE, VINYL (3/4 X 108“)
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	212643 Whirlpool Refrigerator Permagum Sealer
	REFINISHING MATERIAL
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Cover, Evaporator
2	Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	Drain Pan
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	WPW10662129 Whirlpool Refrigerator Run Capacitor
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	W10823815 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	Cover
18	Clip, Cover
19	Harness, Unit
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	Screw, Compressor Mounting
24	Condenser
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Compressor Pan (White)
26	Compressor Pan (Black)
27	Thermostat, Clip
28	Screw
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
32	3-60315-001 Whirlpool Refrigerator CAB Roller
33	Axle
34	Shield, Heater
35	Grommet
36	4357128 Whirlpool Refrigerator Motor Bracket
36	REFRIGERANT CHARGE 4.107 oz. (R-134A)
