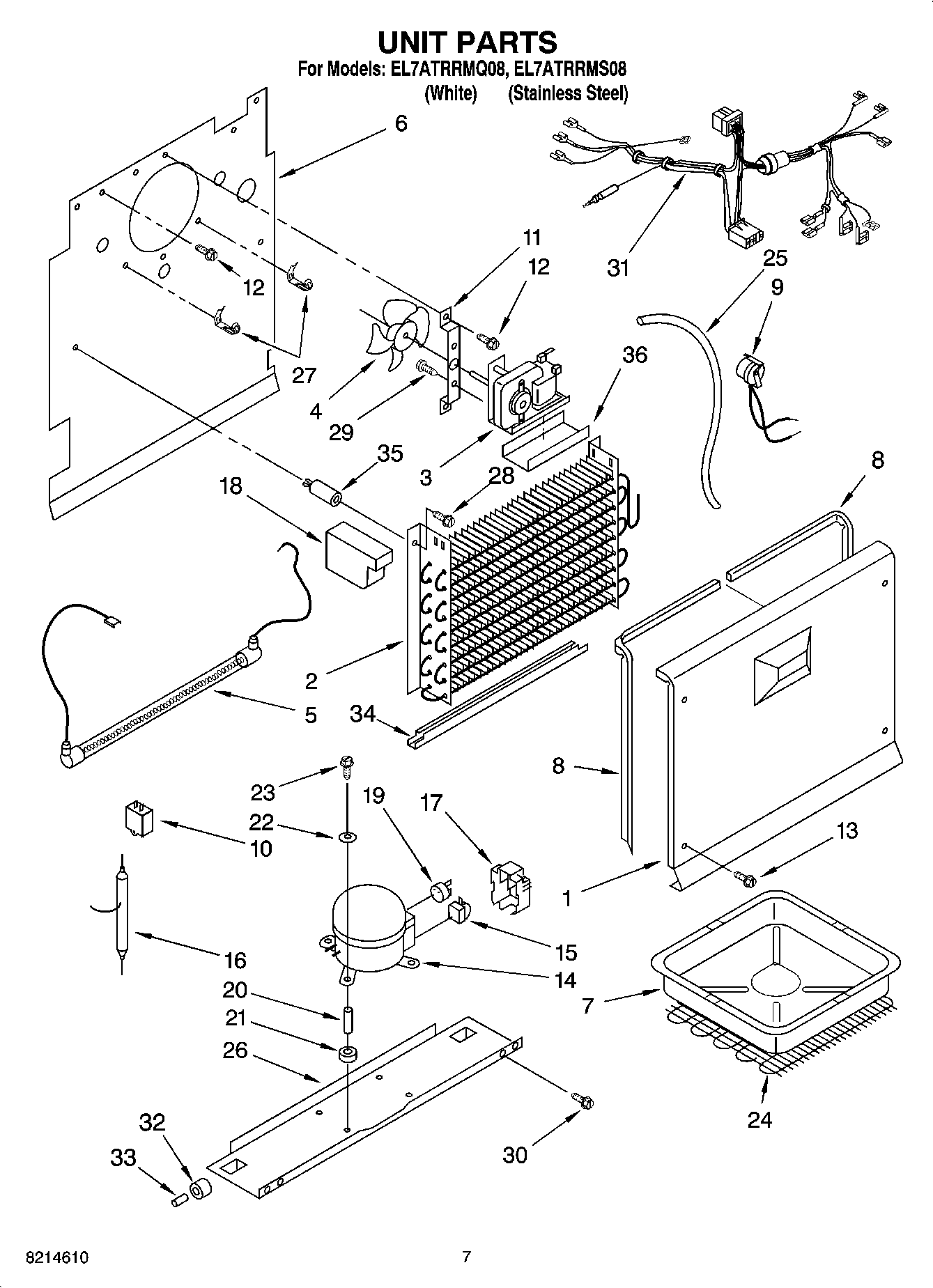

EL7ATRRMS08 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	REFINISHING MATERIAL
	TAPE, VINYL (3/4 X 108“)
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	212643 Whirlpool Refrigerator Permagum Sealer
	Miscellaneous
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Customer Touch-Up Material
1	Cover, Evaporator
2	Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	Drain Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	8210239 Whirlpool Refrigerator Capacitor
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	W10237328 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	Cover
18	1-80252-101 Whirlpool Refrigerator Evaporator Block
19	Overload
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	CONDENSER
25	WP4357245 Whirlpool Refrigerator Exchanger
26	Compressor Pan (Black)
26	Compressor Pan (White)
27	Thermostat, Clip
28	WP489491 Whirlpool Refrigerator Screw
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	8210301 Whirlpool Wire Harness
32	3-60315-001 Whirlpool Refrigerator CAB Roller
33	Axle
34	Shield Heater
35	Grommet
36	4357128 Whirlpool Refrigerator Motor Bracket
36	REFRIGERANT CHARGE 4.107 oz. (R-134A)
